2835 SMD 0.6m 1.2m 1.5m 100*75mm led pendant light linear

Click on the image to view the original image

Product：	views：32835 SMD 0.6m 1.2m 1.5m 100*75mm led pendant light linear
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Lamp Luminous Flux(lm):: 1732

Working Lifetime(Hour):: 50000

Input Voltage(V):: AC 100-240V 50/60Hz

CRI (Ra>):: 80

CCT:: 6000-6500K

Beam Angle:: 110°

PF:: >0.95

Weight (Kg):: 1.22kg(20w)

Length:: 60mm(1200mm/1500mm)

Reflector:: Milky cover

Applications:: Hotels, Conference,Factories,offices,Commercial purposes, Residential

IP:: IP40

Item:: 2835 SMD 0.6m 1.2m 1.5m 100*75mm led pendant light linear

Product name:: pendant light linear

Light Source:: LED

Item Type:: Pendant Lights

Color Temperature(CCT):: PURE WHITE

Certification:: ce, RoHS, UL

Lamp Body Material:: Extrusion aluminum

LED Light Source:: SMD2835

Warranty(Years):: 3

Lamp Luminous Efficiency(lm/w):: 120

Working Temperature(℃):: -40 - 60

Supply Ability

Supply Ability:: 8500000 Piece/Pieces per Month we have stock for the pendant light linear

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

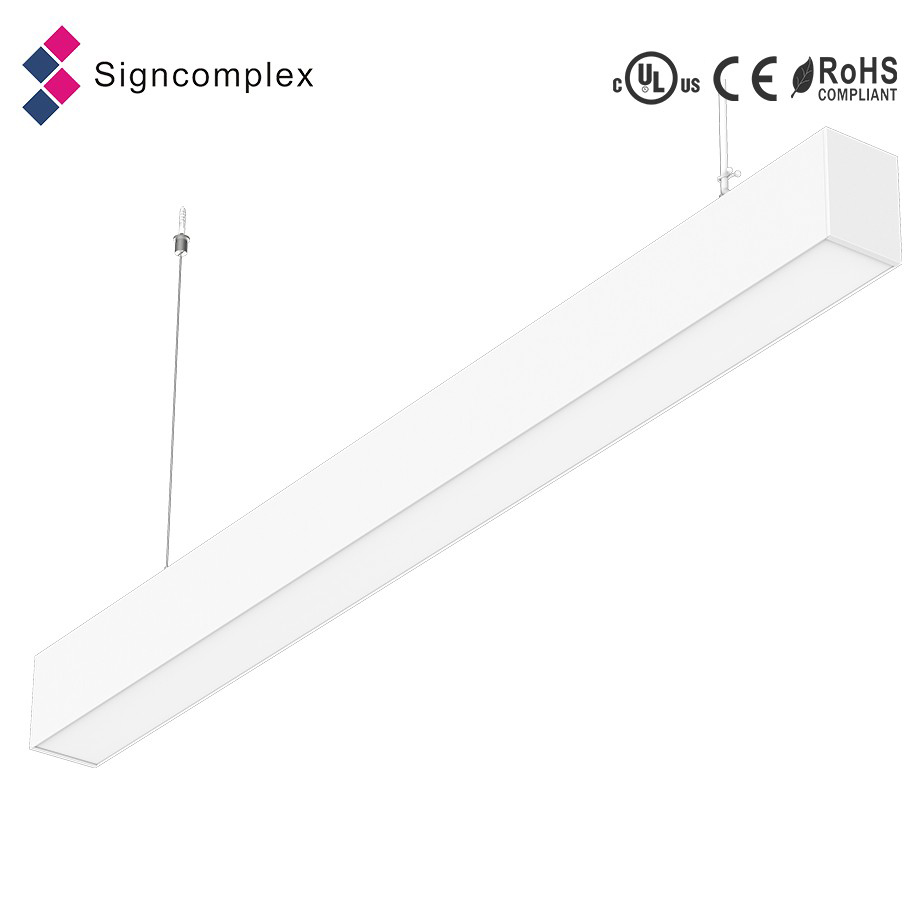

LED Linear Light
SL10075 in single run

Description:
LED linear light is exclusively designed for designer and architect with imagination and personal style.LED
linear light adopt premium aluminum profi le,different dimension and size,easy to install.3 types installation
method: ceiling mounted type, suspended type and embedded type,and different customized dimensions are
also acceptable,which can meet installation requirement of different fields and occasions.

Features:
1.Simple and modern design,screwless at end cap.

2.Extrusion aluminum lamp boby and PC cover.

3.Smooth and soft lighting effect,no dark dot and shadow at the l ighting area.

4.Various instal lation:Suspendent,cei l ing and recessed.

5.Three colors of lamp body,white,black and si lver.

6.Continuous connection at max 550W run.

Applications:
Suitable for hotels,conference rooms,factories,offices,commercial purposes,institution buildings,schools,

colleges,universities,hospitals and other places which needs energy saving and high color rendering index

lighting.

Specifications:

Model	CCT	LED Type	Lumen(lm) (±10%)	Power(W) (±10%)	Length(mm)	Voltage (V)
SC-SL10075-020-AW-01W	6000-6500K	2835	1732	20W	600	AC 100-240V 50/60Hz
SC-SL10075-020-AW-01NW	3800-4200K		1812	20W	600
SC-SL10075-020-AW-01WW	2800-3200K		1661	20W	600
SC-SL10075-040-AW-01W	6000-6500K	2835	3630	40W	1200	AC 100-240V 50/60Hz
SC-SL10075-040-AW-01NW	3800-4200K		3557	40W	1200
SC-SL10075-040-AW-01WW	2800-3200K		3460	40W	1200
SC-SL10075-050-AW-01W	6000-6500K	2835	4295	50W	1500	AC 100-240V 50/60Hz
SC-SL10075-050-AW-01NW	3800-4200K		4491	50W	1500
SC-SL10075-050-AW-01WW	2800-3200K		4072	50W	1500
Beam angle	PF	CRI	IP	Life span	Reflector	installation
110°	>0.95	≥80	IP40	50000hrs	Milky cover	Suspendent installation /Ceiling installation /recessed Installation
