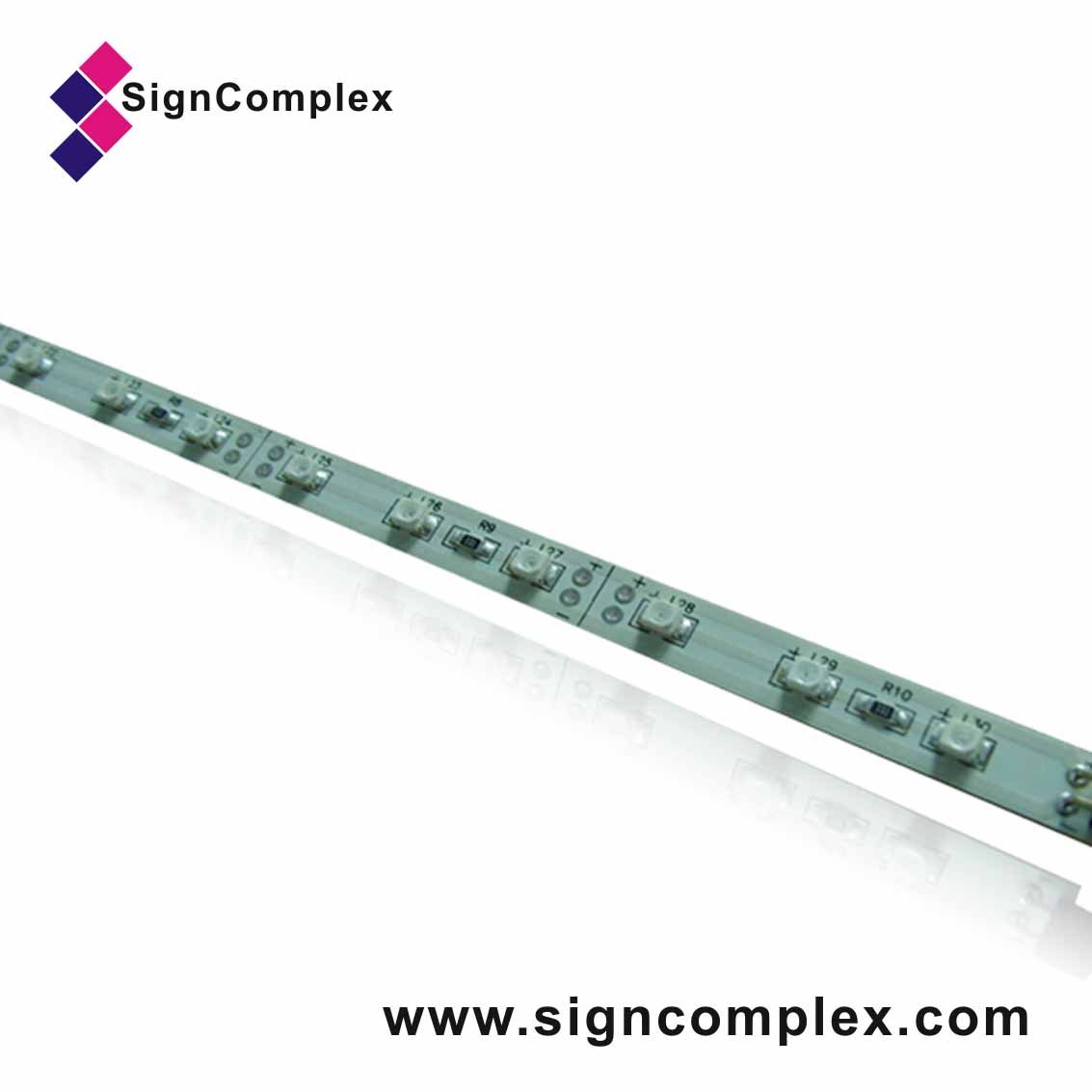

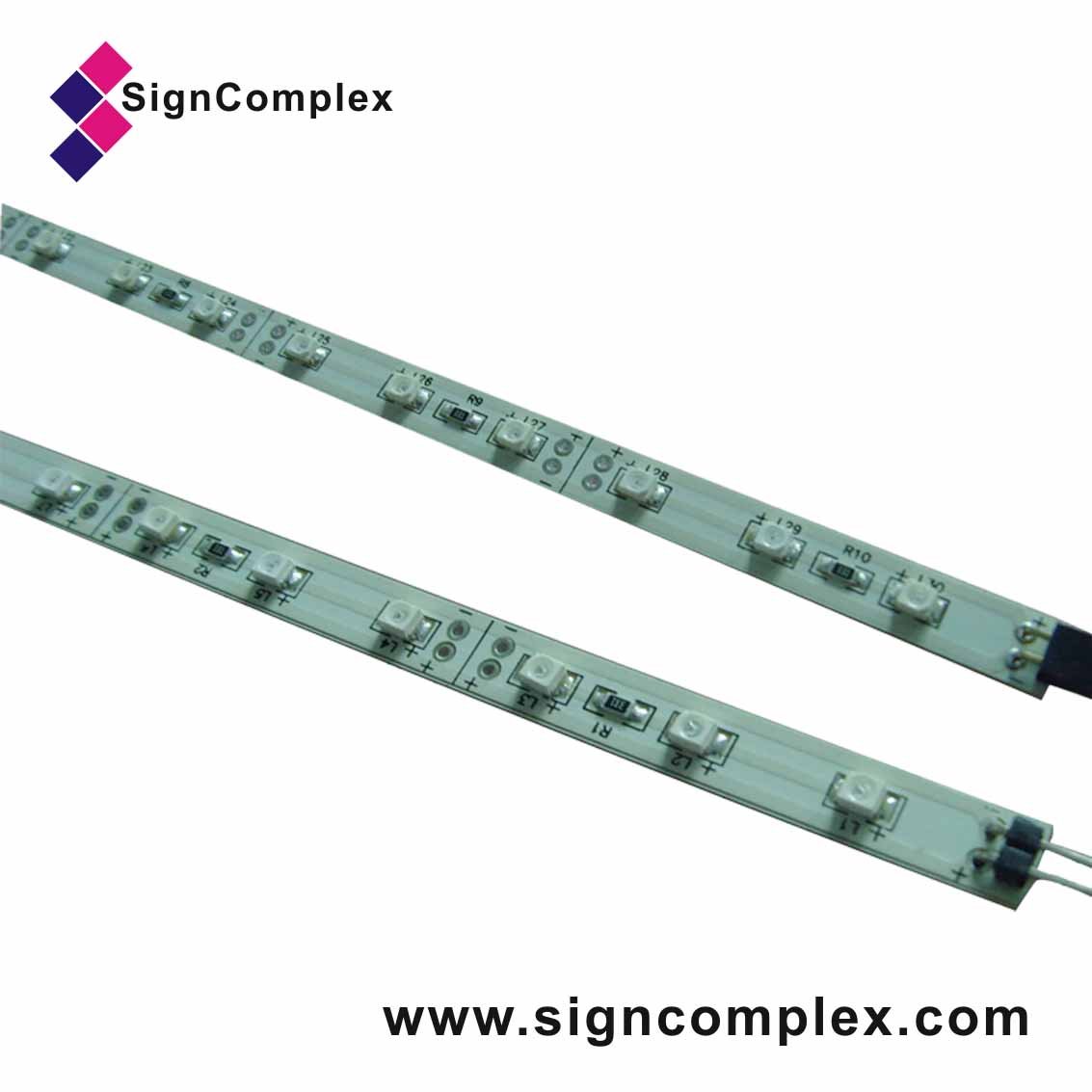

5050 Rigid LED Strip , CE,RoHs certified, 3 years warranty
Features:
*30pcs top surface mount LEDs every strip
*Driven with 12V DC
*Can be cut every 3 LEDs along the marking line on the PCB
*No light break with the JACK Connector
*Mounting accessories available in 3M tape and bracket
* Available in various single colors and RGB
*Single color 480 and 8mm, RGB 570 and 10mm
*Low power consumption; little heat generation
*Compact size to suit narrow space installation
*Well-protected package for shipment
*******************************************************************************************************
Technical parameters:
| Model Number | Color | Length(m) | LED Qty (pcs) | LED Type | Voltage ( V DC) | Max. Power Consumption (W) | Beam Angle (degree) | Light Output (lumen) |
| SC-JSS-R | Red | 0.5 | 30 | Top SMD LED 5050 | 12 | 2.4 | 120 | 90 |
| SC-JSS-Y | Yellow | 0.5 | 30 | 12 | 2.4 | 120 | 110 | |
| SC-JSS-B | Blue | 0.5 | 30 | 12 | 2.4 | 120 | 60 | |
| SC-JSS-G | Green | 0.5 | 30 | 12 | 2.4 | 120 | 120 | |
| SC-JSS-W | White | 0.5 | 30 | 12 | 2.4 | 120 | 200 | |
| SC-JSS-WW | Warm White | 0.5 | 30 | 12 | 2.4 | 120 | 160 | |
| SC-JSS-RGB | RGB | 0.6 | 30 | 12 | 7.2 | 120 | 180 |
****************************************************************************************************************************
Dimension:
************************************************************************************************************
Application:
*Cove lighting
*Architectural lights for canopy, corridor, window, archway
*Backlight or edge lighting for signage
*DIY lights for home use
*Decorative lights for holiday, event ,show, exhibition
*Decorative lights for automobile
*Ideal replacement of in candescent and fluorescent light
