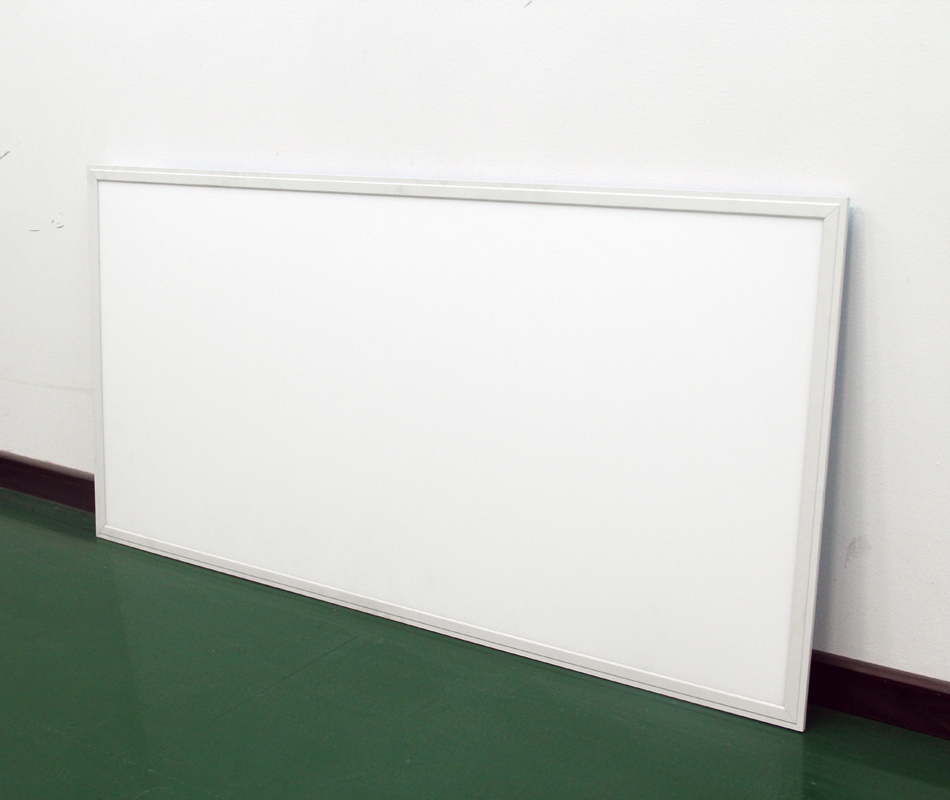

white housing 0~10v dimming 600x1200mm led panels light

Click on the image to view the original image

Product：	views：2white housing 0~10v dimming 600x1200mm led panels light
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-277V 50-60Hz

Lamp Luminous Flux(lm):: 3904

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: AI6063 + PMMA

IP Rating:: IP33

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Light Source:: LED

Lamp Luminous Efficiency(lm/w):: 100

Rated current::: 1.5A

Reflector:: milk color PMMA

Beamangle:: 110degree

Weight (Kg):: 7.68

PF:: >0.9

CCT:: 5000-6500K

Driving current of single LED:: 60mA

Product name:: led panels light ul listed

item:: white housing 0~10v dimming 600x1200mm led panels light

Item Type:: Panel Lights

LED Light Source:: 2835 SMD LED

Warranty(Years):: 5

Supply Ability

Supply Ability:: 8000000 Piece/Pieces per Month we have stock for the led panels light ul listed

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Yantian Shenzhen and Hongkong

LED Panel Light
SC-PSCAWCE6012-SC55W
SC-PSCAWNE6012-SC55W
SC-PSCAWWE6012-SC55W

Description :
LED Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth light beam,low glare rating, low light pollution, and excellent protection from eyestrain. It can be widely used as interior lighting in shops, supermarkets, malls and hospitals, etc

Features :
Color: cool white, nature white, warm white, other available
Enclosure material: AI6063 + PMMA
Beam angle: 110°
Saving energy: 50%
Operating environment: dry location
Rated voltage/frequency: 100-277V AC 50/60Hz

Rated current: 1.5A
Rated power: 55W
Rated power factor: >0.9
Rated harmonic distortion: <20%
Rated luminous flux: 3904,3953,3482(lm)
Rated color temperature: 5000-6500K(CW) 3700-4500(NW), 2700-3200(WW)
Rated CRI: >80
Rated R9: >0
Rated life span: more than 50,000Hrs

LED Source: 2835 SMD LED

Driving current of single LED: 60mA
Reflector: milk color PMMA
No UV, no IR
Standard warranty: 5 years
Safety standard: RoHS, CE

Specifications:

Model	CCT	LED Type	Lumen(lm) (±10%)	CRI	Beam angle	Power(W) (±10%)	Voltage (V)	PF	Weight (Kg)
SC-PSCAWCE6012-SC55W	5000-6500K	2835	5364lm	>80	110°	55W	AC100-277V 50-60Hz	>0.9	7.68
SC-PSCAWNE6012-SC55W	3700-4500K		5441lm	>80	110°	55W
SC-PSCAWWE6012-SC55W	2700-3200K		4700lm	>80	110°	55W

Applications:
- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution buildings
- Schools, colleges, universities and hospitals
-Places which needs energy saving and high color rendering index lighting.

Product packaging information:
1. Net weight: 7.68kg
2.Gross weight: 9.78kg
3. Packing size: 1330X690X150mm (2pcs per box)
