Home > Products > Meanwell driver 150w dimmable linear newest high bay light
Meanwell driver 150w dimmable linear newest high bay light
Click on the image to view the original image
Product： views：4Meanwell driver 150w dimmable linear newest high bay light
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-277V/50-60Hz
Lamp Luminous Flux(lm):
19580
CRI (Ra>):
70
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE, LVD, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Application:
Warehouse,distribution/logistic center, large workshop,warehouse,parking lot,shopping mall,farm,gas station...
Light Source:
LED
Color Temperature(CCT):
Pure White
Lamp Luminous Efficiency(lm/w):
130
LEDQty:
120pcs
PF:
≥ 0.9
Beamangle:
30°*70°/ 70°*120°/ 65°*65°/ 120°*120°
Current:
1.8A
CCT:
5500-6500K
Net weight:
5.9kg
Product Name:
2016 newest high bay light
Item Type:
High Bay Lights
LED Light Source:
SEOUL
Warranty(Years):
5
Supply Ability
Supply Ability:
950000 Piece/Pieces per Month we have stock for the 2016 newest high bay light
Packaging & Delivery
Packaging Details
Net Weight:8.1KGGross Weight:8.5KG
Outer carton dimension: 900*280*190mm (1pcs/carton)
Port
Shenzhen and Hongkong

Meanwell driver 150w dimmable linear  newest high bay light







90w 120w 150w 200w 240w 300w available





LiBayTM High Bay&Low Bay

Lighting Series

GK-090/120/150-AW-L/-01/2/4/5



Description:

LiBay is a unique flexible lighting that can be used as normal high bay light but also used as warehouse light.We supply narrow,medium or wide beam angle.30*70-degree and 70*120-degree are designed for warehouse,aisle.65*65-degree and 120*120-degree are suitable for gymnasium,factory,high bay appliance.With modular design,LiBay can be specified in two modules 90W,three modules 120W,four modules 150W,five modules 200W,six modules 240W,seven modules 300W.Efficiency 130lm of fixture,can save 60% energy.



Features:

1.30*70-degree,70*120-degree,65*65-degree,120*120-degree for different applications

2.Modular design,90W-300W are available

3.Low glare,<25

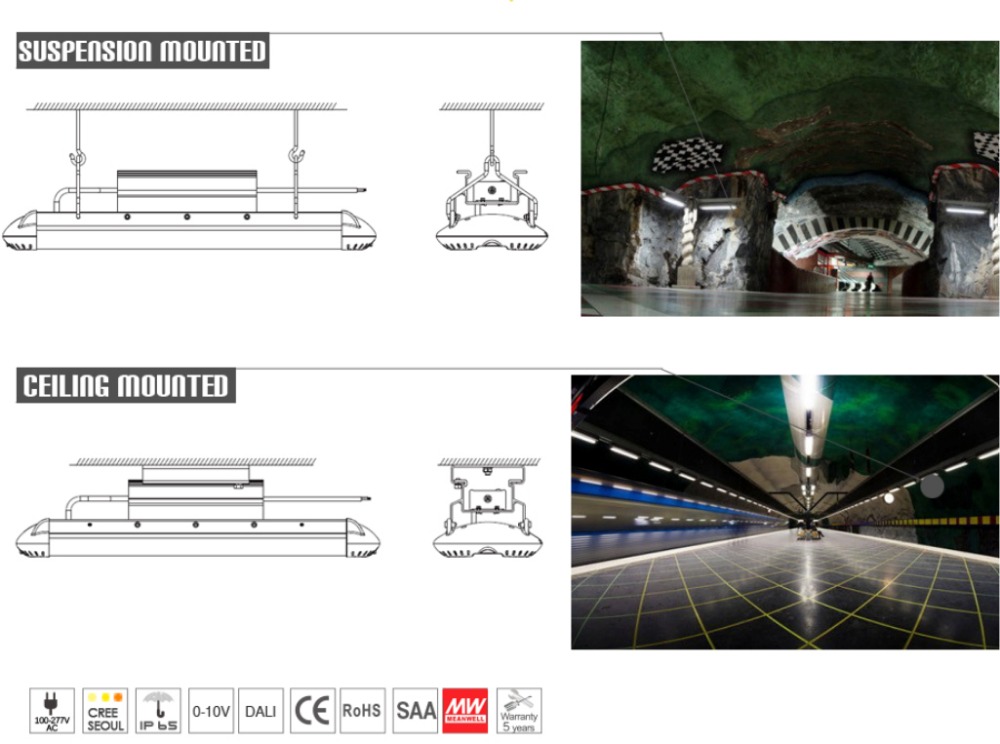

4.Ceiling installation and suspension installation

5.Black and sliver color optional

6.IP65

7.TUV,CE,SAA approval

8.5 years warranty





Technical parameters :

ModelColorCCTLumen(lm)
(±10%)		LED TypeLED Qty.Power
(±10%)		Voltage
Frequency		CurrentBeam angle
(°)		CRIIPPFReplace HID
GK-150-AW-W-L-01white5500-6500K15190CREE120pcs150WAC100-277V
50/60Hz		1.8A30°*70°/
70°*120°/
65°*65°/
120°*120°		>7065>0.9400W
GK-150-AW-NW-L-01netural white4000-4500K14680
GK-150-AW-WW-L-01warm white2700-3200K13870
GK-150-AW-W-L-02white5500-6500K15190CREE120pcs150WAC100-277V
50/60Hz		1.8A>7065>0.9
GK-150-AW-NW-L-02netural white4000-4500K14680
GK-150-AW-WW-L-02warm white2700-3200K13870
GK-150-AW-W-L-04white5500-6500K19580SEOUL120pcs150WAC100-277V
50/60Hz		1.8A>7065>0.9
GK-150-AW-NW-L-04netural white4000-4500K19640
GK-150-AW-WW-L-04warm white2700-3200K18740
GK-150-AW-W-L-05white5500-6500K19580SEOUL120pcs150WAC100-277V
50/60Hz		1.8A>7065>0.9
GK-150-AW-NW-L-05netural white4000-4500K19640
GK-150-AW-WW-L-05warm white2700-3200K18740









Applications:

Warehouse,distribution/logistic center,aisle lighting,gymnasium,factory,high bay appliance.





Package Information:

Net Weight:5.9KG Gross Weight:7.6KG
