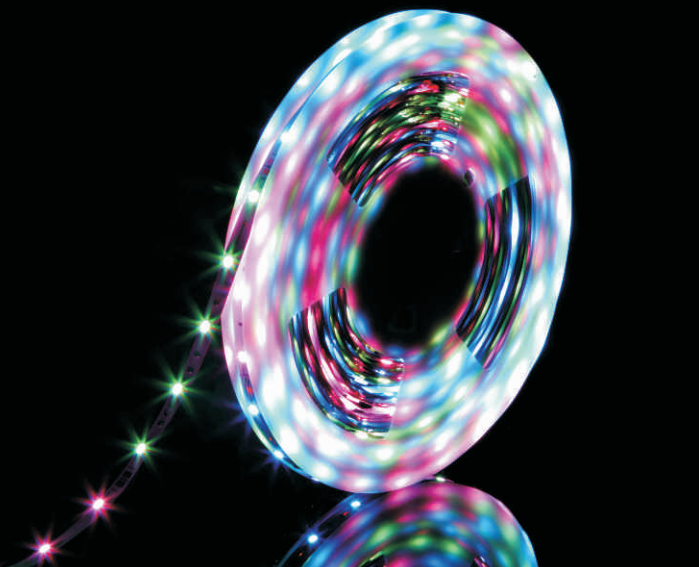

double line multiple color ribbon waterproof 3528 led strip ip65

Click on the image to view the original image

Product：	views：2double line multiple color ribbon waterproof 3528 led strip ip65
Branch：	Signcomplex
Type：	Flex LED Strips
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Type:: Flex LED Strips

Input Voltage(V):: 24V DC

Lamp Power:: 19.2w/m

Lamp Luminous Flux(lm):: 720lumen/m

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +50

Working Lifetime(Hour):: 50000

Lamp Body Material:: PC

Certification:: CE, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-W1XID1-R-24V

Light Source:: LED

IP rating:: IP65

Current (Amps/m):: 0.8

Length (m):: 5

LED Q'ty:: 1200

Continuous Connection (m):: 5

Beam Angle (degrees):: 120

Product Name:: lcd led backlight strip waterproof outdoor

item:: double line multiple color ribbon waterproof 3528 led strip ip65

Item Type:: Light Strips

Emitting Color:: Red

LED Light Source:: 3528SMD

Color Temperature(CCT):: /

Supply Ability

Supply Ability:: 9500000 Roll/Rolls per Month We have stock for lcd led backlight strip waterproof outdoor

Packaging & Delivery

Packaging Details: package of the ultra bright led strip:
5m a roll. anti-static packing

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

SC-W1XID1

X-Ribbon™

Description :

X-Ribbon™ features 2-l ine high brightness SMD LEDs on a 16mm wide FPC board. Like other
Signcomplex flexible strips, X-Ribbon™ runs 5 meters a reel and it stands out with the remarkably light output. With CCT 6000K each meter of X-Ribbon™ gives more than 1,000 lumens meanwhile the whole strip gets no heat. Besides white color CCT 3000K, 4000-4500K and 6000K, other colors are also offered to customers. It definitely will be considered a good light source for signage, contour and canopy decorative purpose.

X-Ribbon™ is designed to be easily used by end users which has no professional technology at all. Consumers can cut the strip along the marks on PCB and do the join work again with our connector, so no any length of X-Ribbon™ will be wasted.

- 5m as the standard packing length
- Packing material is antistatic hot-sealing film bag
- Cuttable every 6 LEDs (one line)
- 3M adhesive tape on ribbon backside
- Ribbon width 16mm
- Totally waterproof,IP65
- LED distance 8.3mm and cut section length 50mm.

Possible applications with X-Ribbon™

- Cove lighting
- Architectural lights for canopy, corridor, window, archway
- Backlight or edge lighting for signage
- DIY lights for home use- Path and contour marking
- Decorative lights for holiday, event, show, exhibition

We have many types of LED Strip:3528 led strip,5050 led strip,3014 led strip,3020 led strip,5730 led strip,2835 led strip,IP20 led strip,IP65 led strip,IP68 led strip,Normal brightness led strip,High brightness led strip,Super brightness led strip,High CRI led strip,Hybrid brightness led strip,Unique led strip,Rigid led strip...

Applications:

-Cove lighting
-Architectural lights for canopy, corridor, window, archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday, event, show, exhibition
