Home > Products > 120lm/w cutout 200mm 35W gimbal COB 8inch recessed downlight

120lm/w cutout 200mm 35W gimbal COB 8inch recessed downlight

Click on the image to view the original image

Product：	views：2120lm/w cutout 200mm 35W gimbal COB 8inch recessed downlight
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-240V AC

Lamp Luminous Flux(lm):: 4360

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, RoHS

Model Number:: MDL8-035-AW-W-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

power:: 35W

Color:: White/Warm white/nature white

fetures1:: rotatable358° horizontally and30°vertically,integrated driver

CCT:: 5000K

Beam angle:: 90°

PF:: >0.92

Current:: <0.4A

Item:: 120lm/w cutout 200mm 35W gimbal COB 8inch recessed downlight

Product name:: 8inch recessed downlight

Item Type:: Downlights

Warranty(Years):: 3

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 35

LED Light Source:: COB ( Epistar )

Lamp Luminous Efficiency(lm/w):: 120

Color Temperature(CCT):: 5500-7000K/2700-3200K/4000-4500K

Supply Ability

Supply Ability:: 800000 Piece/Pieces per Month we have stock for the 8inch recessed downlight

Packaging & Delivery

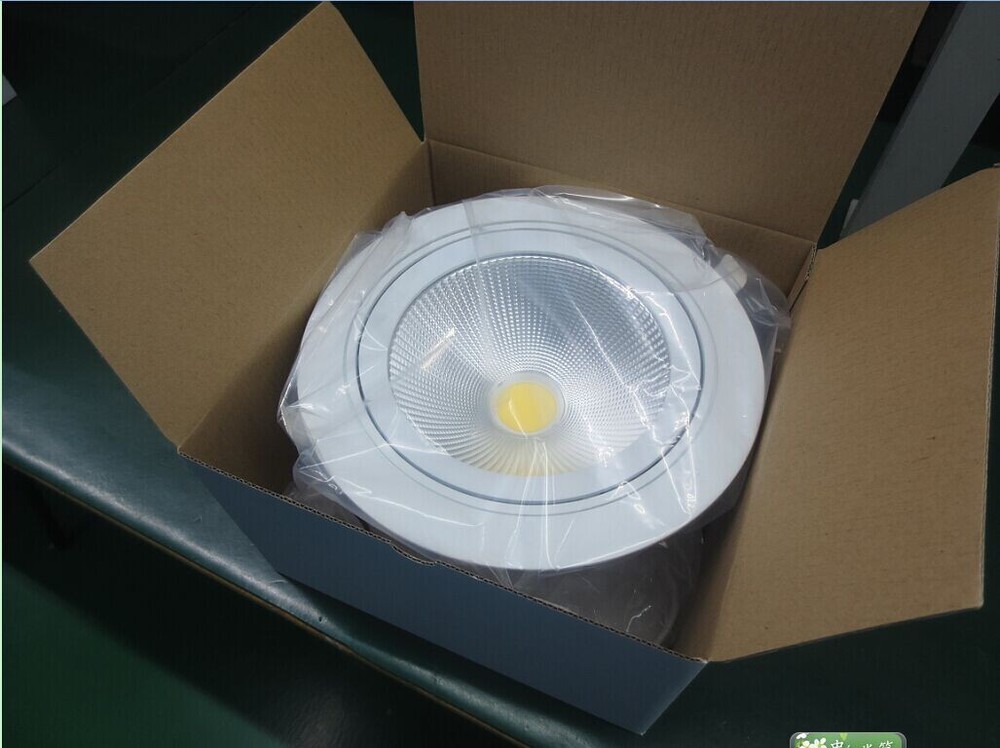

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

New products 2015 innovative product 8inch 35W COB LED downlight with CE,ROHS

Description :

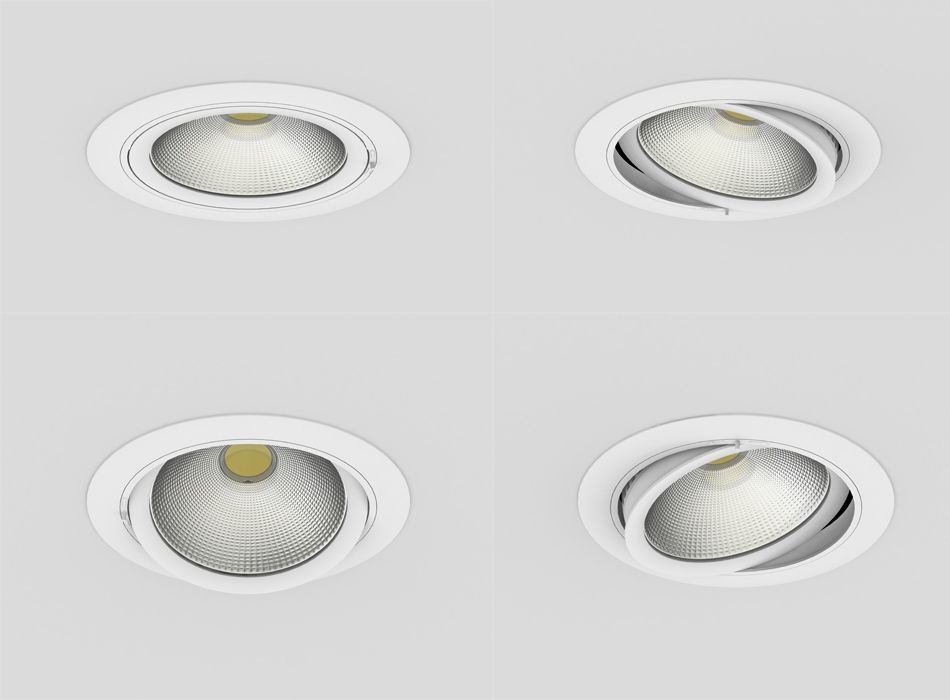

It is designed to be rotatable 358° in horizontal and 60° in vertical direction, could meet various need on emitting directions
It is 35W including driver and delivers 4200lm
of 80Ra CRI warm light while achieving up to 120lm/W
This outstanding performance is achieved by one 40W
COB with Epistar chip
Its pending patent design especially the heat sink make sure perfect heat-dissipation and low temperature on light body

Features :

1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6.Energy-saving and high efficient LED driver.

Specification :

Model #	CCT	LED Type	Lumen(lm)(±10%)	CRI	Power(W) (±10%)	Beam angle	Current	Voltage (V)	PF
MDL8-035-AW-W-01	5000K	COB	4360		35W	90degree	<0.40A	100-240V	≥0. 92
MDL8-035-AW-NW-01	4000K	(Epistar	4300	>80		90degree		100-240V
MDL8-035-AW-WW-01	3000K	chip)	4200			90degree		AV
