high efficiency gimbal 6inch 25w COB led wifi controlled downlight

Click on the image to view the original image

Product：	views：2high efficiency gimbal 6inch 25w COB led wifi controlled downlight
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-240V AC

Lamp Luminous Flux(lm):: 2050

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, LVD, RoHS

Model Number:: MDL6-025-AW-NW-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Beam angle:: 30degree

CCT:: 4000K

PF:: >0.9

Current:: <0.32A

Carton box dimension (12PCS inside):: 590*390*330MM

Product Net weight:: 0.87kg

Product Gross weight:: 1.0kg

Applications:: hotel lobby, airport, shopping center,retail industry, museum...

Product name:: wifi controlled downlight

Item:: high efficiency gimbal 6inch 25w COB led wifi controlled downlight

Item Type:: Downlights

Warranty(Years):: 3

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 25

LED Light Source:: COB ( Epistar )

Lamp Luminous Efficiency(lm/w):: 120

Color Temperature(CCT):: natural white

Supply Ability

Supply Ability:: 8500000 Piece/Pieces per Month we have stock for the wifi controlled downlight

Packaging & Delivery

Packaging Details: Product Net weight: 0.87kg
Product Gross weight:1.0kg
Dimension of inner box:185X185X150MM

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

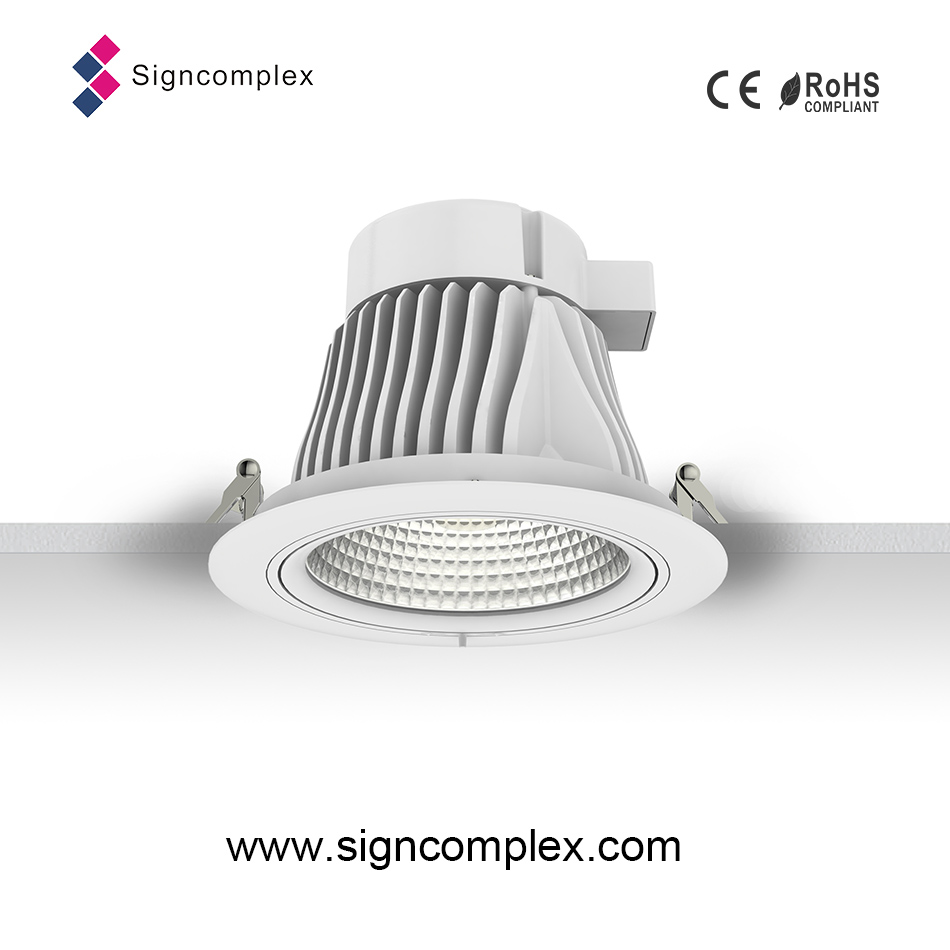

Description of the led downlight :

Luna COB 6" Downlight is designed to be rotatable 358° at horizontal and 30° at vertical direction, could meet various need on emitting directions. It is 25W including driver and delivers over 2000lm of 80+ CRI light while achieving up to 85lm/W. This outstanding performance is achieved by one 35W COB with Epistar chip. Its pending patent design especially the heat sink make sure perfect heat dissipation and low temperature on light body.

Features of the led downlight:

1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6.Energy-saving and high efficient LED driver.

Specification of the led downlight:

Model #	CCT	LED Type (±10%)	Lumen(lm) (f10%)	CRI	Power(W) (±10%)	Beam angle	Current	Voltage (V)	PF
MDL6-025-AW-W-01	5000K	COB ( Epistar chip )	2130	>80	25W	30°	<0.32A	100-240V AC	>0.9
MDL6-025-AW-NW-01	4000K		2050
MDL6-025-AW-WW-01	3000K		2040
