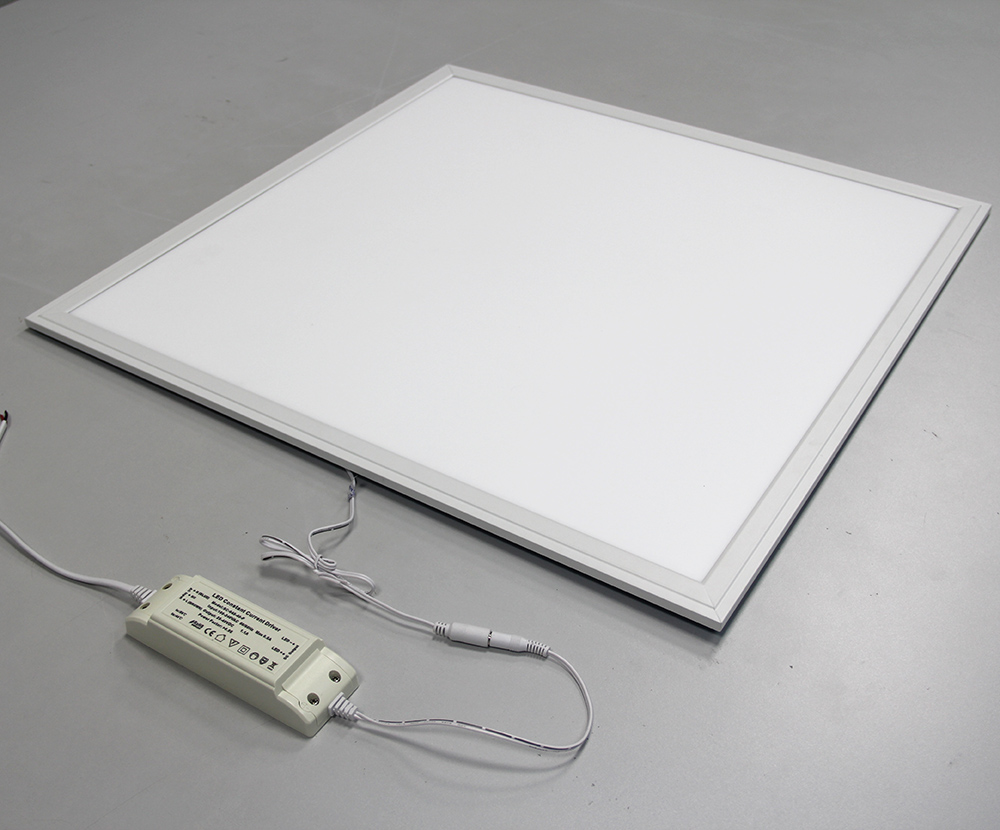

Square UGR<19 2ft*2ft 595*595 3600LM 40W Led Panel 62x62
1)3 Years Warranty for all the light.
2) CE ,RoHS Available.
3)3 Days for Sample Oder,5-7 Days for Bulk Order.
4)Professional Specifications,CE RoHS Testing Report,IES File to be sent before confirmed.
5) User"s Manual ,stardard package and considerate serives will be provided after confirmed.
Specification
600x600mm LED panel light | |
| LED Type | Epistar SMD4014 |
| Power Consumption | 40 Watts |
| Size | 595*595*9/600*600*9mm |
| Power Factor(PF) | 0.95 |
| Frame Material | Aluminum alloy panel |
| LGP Material | Acrylic |
| Input Voltage | 100-240Vac |
| Working Voltage | DC24V |
| Frequency | 50-60Hz |
| Beam angel | 120° |
| Operating temperature | -20°C-40°C |
| IP / IK code | IP43 / IK04 |
| Life span | 50,000 Hrs |
| Energy saving | 50% |
| LED colors | Cool White, Nature White & Warm White |
| CCT | 5700-7000K, 4000-5000K, 2700-3300K |
| Other colors available | Red, Green, Blue, yellow and color changing |
| Other sizes available | 6inch, 8 inch, 200*200mm, 300*300mm, 600*600mm, 300*600mm, 600*1200mm and custom sizes. |
| Control options | Brightness, color temperature dimmable |
| Installation methods | Recessed, surface-mounted or suspended |
| Standard packing: | 1 panel light +1 driver +1 power supply + 1 instruction book |
| Lead time | 1-3 days for sample, 5-10 days for more than 500PCS |
| CE & RoHS certificates | |
| Warranty 3 years | |
Installation
Production Package
CE LVD EMC & RoHS Listed
Applications
1) Hotels
2) Conference/Meeting Rooms
3) Factories & Offices
4) Commercial Purposes
5) Residential/Institution Buildings
6) School, Colleges & Universities
7) Hospitals
8) Places where Energy Saving and High Color Rendering Index Lighting are needed
Applications :
Suitable for hotels,conference rooms,factories,offices,commercial purposes,institution buildings,schools,
colleges,universities,hospitals and other places which needs energy saving and high color rendering index lighting.
Production Line:
Aging:
