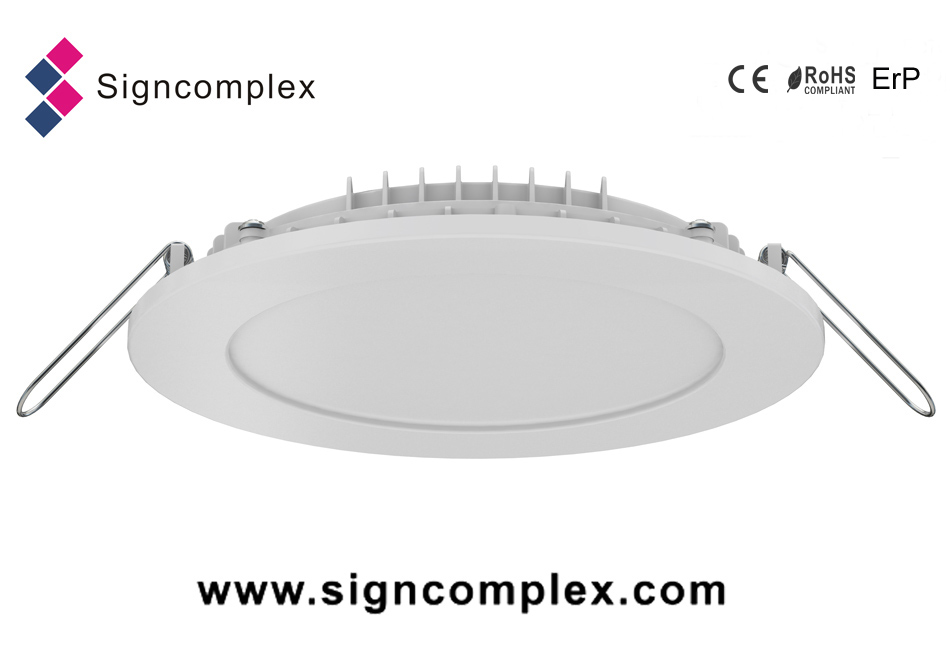

opal diffuser thickness<26mm 6inch led downlight 18w dimmable

Click on the image to view the original image

Product：	views：2opal diffuser thickness<26mm 6inch led downlight 18w dimmable
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 200-240V AC/100-240V AC

Lamp Luminous Flux(lm):: 1370

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, RoHS

Model Number:: FDL6-018-AL-W-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Beam angle:: 100°

PF:: >0.9

color:: white/warm white/Natural white

Led Qty:: 108pcs

Weight:: 0.4kg

Applications:: hotel, house, office, parking lot, exhibition, club...

CCT:: 6000-6300K

Maximum current(mA):: <200

item:: opal diffuser thickness<26mm 6inch led downlight 18w dimmable

Product name:: led downlight 18w dimmable

Item Type:: Downlights

Warranty(Years):: 3

CRI (Ra>):: 80

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 18

LED Light Source:: 2835 SMD

Lamp Luminous Efficiency(lm/w):: 120

Supply Ability

Supply Ability:: 900000 Piece/Pieces per Month we have stock for the led downlight 18w dimmable

Packaging & Delivery

Packaging Details: Inner box dimension: 178*42*235MM
Net weight: 0.4KG
Gross weight: 0.46KG
Carton box dimension (24PCS inside) : 550*370*270MM
11.9KG/Carton box

Port: Yantian Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

1.Die-casted aluminum alloy housing;

2.Matt white

3.Ultra-slim,thickness<26mm

4.Opal diffuser make light beam uniform and low glare

5.Led downlight UGR<19

Features of the led downlight 18w dimmable :

*TRIAC dimmable, fluent, no strobe.
*Dimmable range 1%~100%.
*Adopt die-casting aluminum alloy to make the main body.
*Use PMMA of high transmittance as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance to ensure the long
lifetime of LED
*The driver and main body use separation design which
ensure the long lifetime of both parts.
*High-efficient and energy -saving LED driver

Application:
Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.

Specification:

Model Number	Color	LED Type	LED Qty.	CCT(K)	Light Output (lm)	Power (W)	Maximum current(mA)	Voltage (V) Frequency	Beam angle(°)	Net weight (KG)	PF
FDL6-018-AL-W-01	white	2835	108	6000-6300	1370	18W	<200	100-120V AC 60Hz	100°	0.4	≥0.9
FDL6-018-AL-NW-01	Neutral white		108	3900-4100	1400
FDL6-018-AL-WW-01	warm white		108	2900-3100	1220
FDL6-018-AH-W-01	white		108	6000-6300	1370	18W	<100	200-240V AC 50Hz
FDL6-018-AH-NW-01	Neutral white		108	3900-4100	1400
FDL6-018-AH-WW-01	warm white		108	2900-3100	1220
