0.6m/1.2m/1.5m 2835smd Extrusion aluminum led batten linear light

Click on the image to view the original image

Product：	views：20.6m/1.2m/1.5m 2835smd Extrusion aluminum led batten linear light
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Warranty(Years):: 3

Input Voltage(V):: AC 100-240V 50/60Hz

Lamp Power(W):: 36

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +40

Working Lifetime(Hour):: 50000

Lamp Body Material:: premium aluminum

IP Rating:: IP40

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: led linear light

Light Source:: LED

Model number:: SC-SL8050-036-AW-01W

CCT:: 6000-6500K

Beam Angle:: 110°

PF:: >0.95

Weight (Kg):: 2.58

Length:: 1200mm

Reflector:: Milky cover

Applications:: Hotels, Conference,Factories,offices,Commercial purposes, Residential

Product Name:: led batten linear light

Item:: 0.6m/1.2m/1.5m 2835smd Extrusion aluminum led batten linear light

Item Type:: Tube Lights

Lamp Luminous Flux(lm):: 3312

Color Temperature(CCT):: Pure White

LED Light Source:: SMD 2835

Supply Ability

Supply Ability:: 9500000 Piece/Pieces per Month we have stock for the led batten linear light

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

LED Linear Light

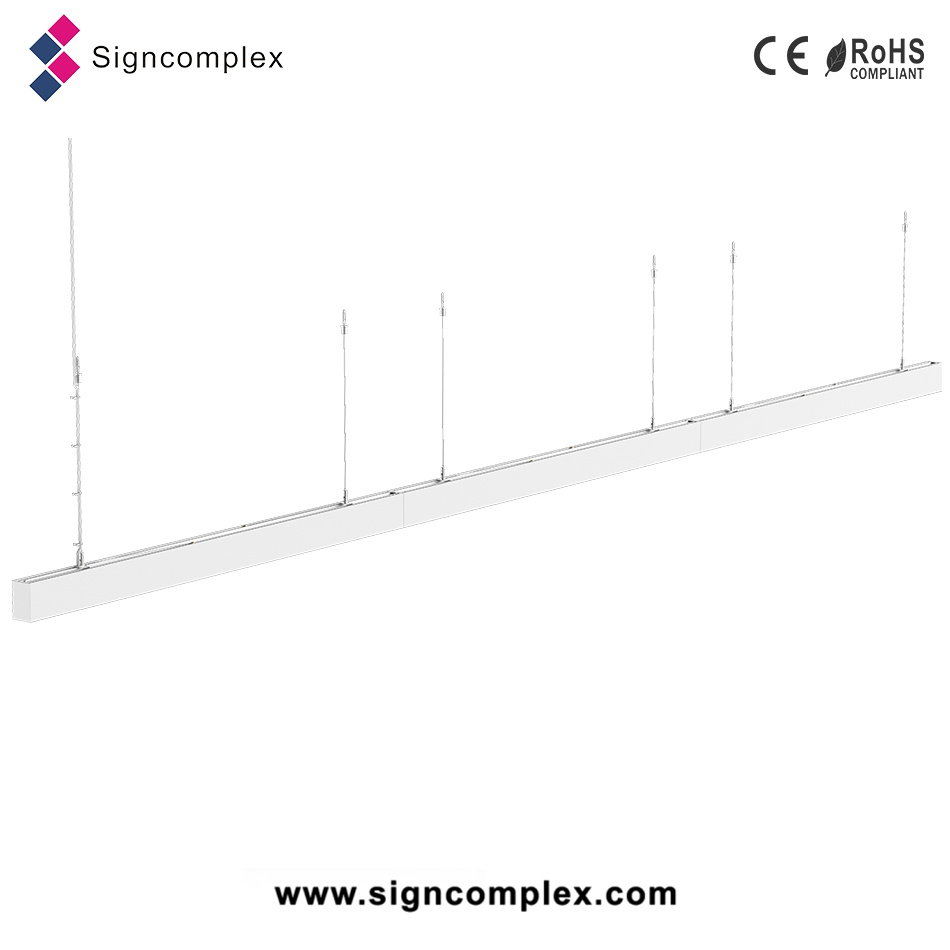

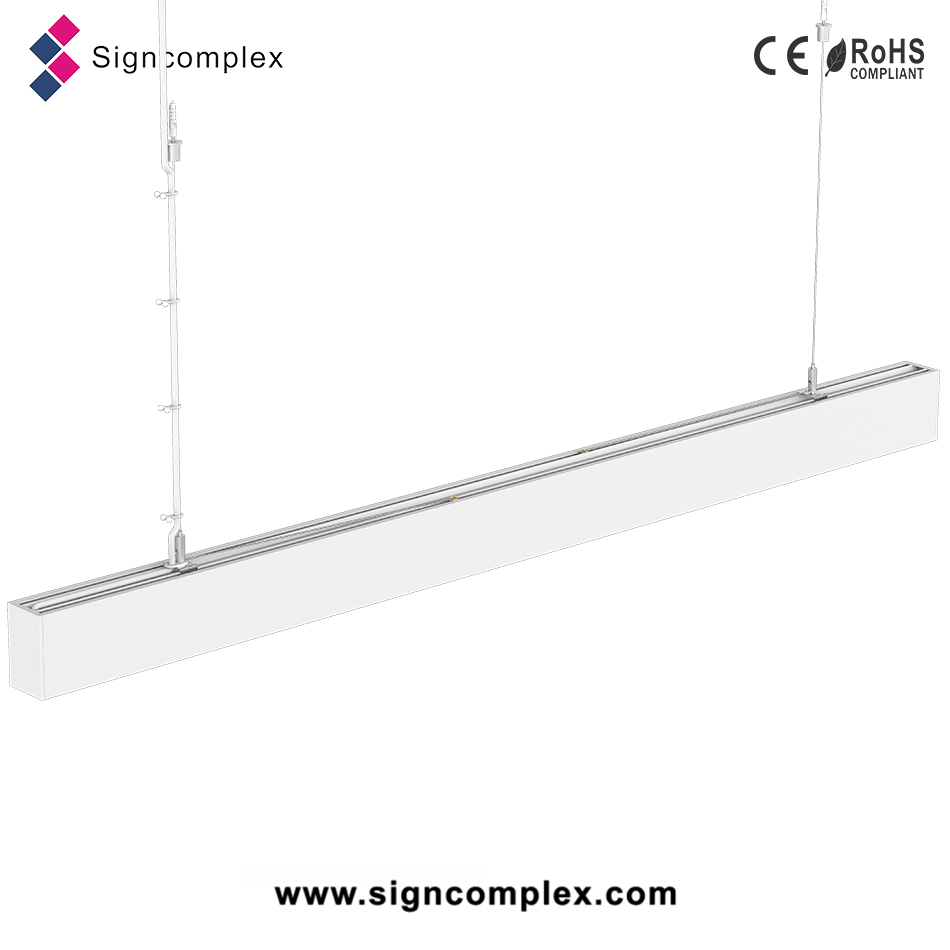

SL8050 in single run

Description :
LED linear light is exclusively designed for designer and architect with imagination and personal style.LED linear light adopt premium aluminum profi le,different dimension and size,easy to install.3 types installation method: ceiling mounted type, suspended type and embedded type,and different customized dimensions are also acceptable,which can meet installation requirement of different fields and occasions.

Features:
1.Simple and modern design,screwless at end cap.

2.Extrusion aluminum lamp boby and PC cover.

3.Smooth and soft lighting effect,no dark dot and shadow at the lighting area.

4.Various installation:Suspendent,ceiling and recessed.

5.Three colors of lamp body,white,black and silver.

6.Continuous connection at max 550W run.

Specification:

Model	CCT	LED Type	Lumen(lm) (±10%)	Power(W) (±10%)	Length(mm)	Voltage (V)
SC-SL8050-018-AW-01W	6000-6500K	2835	1656lm	18W	600	AC 100-240V 50/60Hz
SC-SL8050-018-AW-01NW	3800-4200K		1620lm	18W	600
SC-SL8050-018-AW-01WW	2800-3200K		1530lm	18W	600
SC-SL8050-036-AW-01W	6000-6500K	2835	3312lm	36W	1200	AC 100-240V 50/60Hz
SC-SL8050-036-AW-01NW	3800-4200K		3240lm	36W	1200
SC-SL8050-036-AW-01WW	2800-3200K		3060lm	36W	1200
SC-SL8050-045-AW-01W	6000-6500K	2835	4140lm	45W	1500	AC 100-240V 50/60Hz
SC-SL8050-045-AW-01NW	3800-4200K		4050lm	45W	1500
SC-SL8050-045-AW-01WW	2800-3200K		3825lm	45W	1500
Beam angle	PF	CRI	IP	Life span	Reflector	installation
110°	>0.95	≥80	IP40	50000hrs	Milky cover	Suspendent installation /Ceiling installation /Embedded Installation
