China square ceiling 30x120cm led panel with spring installation

Click on the image to view the original image

Product：	views：2China square ceiling 30x120cm led panel with spring installation
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Input Voltage(V):: 24V dc

Lamp Luminous Flux(lm):: 3510.9

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +45

Working Lifetime(Hour):: 36000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: CE, Energy Star, FCC, RoHS, SAA, ErP,CE,ROHS,DALI

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-PSC24WE3012-A

Light Source:: LED

Beam Angle:: 110degree

Size:: 30*1200mm

Installation:: embedded

Color Temperature(CCT):: 2700-3200K, Warm White

Weight:: 3.9kg

Shape:: Square

Product name:: 30x120cm led panel

item:: China square ceiling 30x120cm led panel with spring installation

Item Type:: Panel Lights

Warranty(Years):: 5

Lamp Power(W):: 45

LED Light Source:: SMD3014

Lamp Luminous Efficiency(lm/w):: 70

Supply Ability

Supply Ability:: 8500000 Piece/Pieces per Month we have stock for the 30x120cm led panel

Packaging & Delivery

Packaging Details: 1. Net weight:3.88kg
2.Gross weight/Carton: 25.2 kg
3. Packing size: 1255X285X425mm
4. 5pcsinner boxes in one carton

Port: shenzhen and Hongkong

Lead Time:: 5-15days after order confirmed

LED Panel Light
SC-PSC24NE3012-A
SC-PSC24WE3012-A
SC-PSC24CE3012-A

Features of the 30x120cm led panel :

Two sides are lined with LED"s to grant optimal illumination.
High light output at a reduced energy consumption of up to 50%.
Over 36"000 hours life expectancy.
Wide angle of deflection with even light distribution.
No start-up time, no flickering, no humming.
High efficiency (95%) constant current driver with built in overheat protection that remains stable at a wide range of input voltages.
Independent LED circuit prevents complete blackout in case an LED fai ls.
Environmentally friendly, mercury and lead free.
Causes no electromagnetic interference.

Model #	CCT	LED Type	Lumen(lm) (±10%)	CRI	Beam angle	Power(W) (±10%)	Working Voltage	PF	Weight (Kg)
SC-PSC24CE3012-A	5500-6500K	SMD3014	3882.9lm	80	110°	45W	24V dc	>0.9	3.9
SC-PSC24NE3012-A	3900-4500K		3721.4lm
SC-PSC24WE3012-A	2700-3200K		3510.9lm

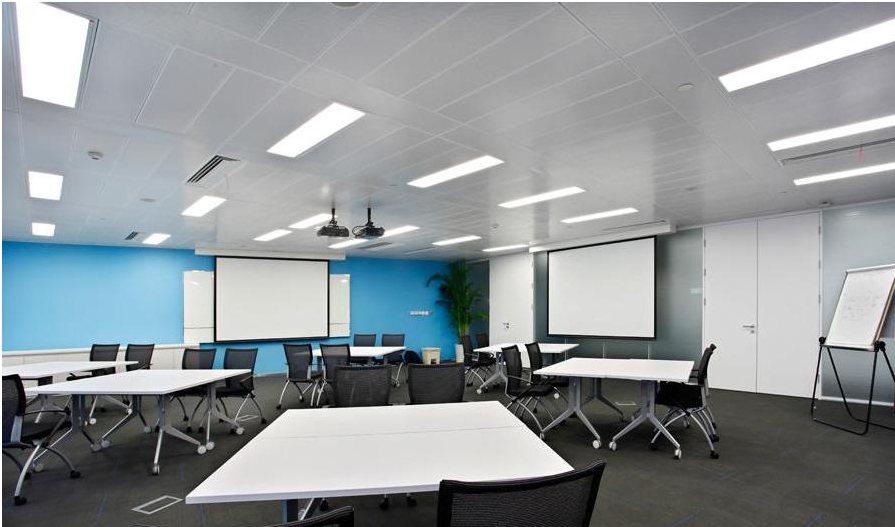

Applications:

- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution buildings
- Schools, colleges, universities and hospitals
-Places which needs energy saving and high color rendering index lighting.
