Signcomplex flexible cuttable Epistar 120 leds /m 3014 led strip

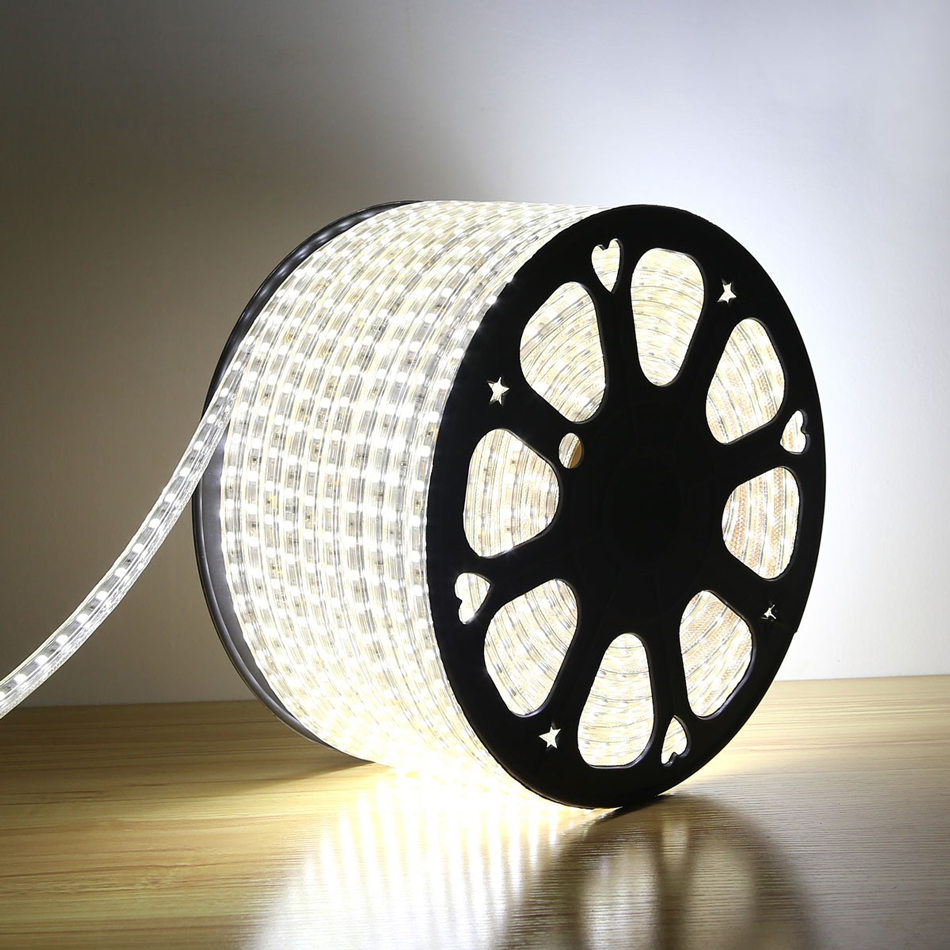

Click on the image to view the original image

Product：	views：2Signcomplex flexible cuttable Epistar 120 leds /m 3014 led strip
Branch：	Signcomplex
Type：	Flex LED Strips
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Type:: Flex LED Strips

Input Voltage(V):: DC12

Lamp Power:: 7.2W/M

Lamp Luminous Flux(lm):: 980lumen/m

CRI (Ra>):: 80

Working Temperature(℃):: 20 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: PC

Certification:: CE, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-IEP2-HWW-12V

Light Source:: LED

IP Rating:: 65

LED Quantity:: 120/m

Length:: 5 meter a roll

Color:: white,warm white

LED Chip:: Original Epistar SMD3014

Warranty:: 3 years

Beam angle:: 120°

Current (A/m):: 1.2

item:: 120 leds /m 3014 led strip

Product name:: Signcomplex flexible cuttable Epistar 120 leds /m 3014 led strip

Item Type:: Light Strips

Emitting Color:: Warm White

Color Temperature(CCT):: 2700-7000K

LED Light Source:: SMD3014

Supply Ability

Supply Ability:: 85000000 Roll/Rolls per Month we have in stock for the 120 leds /m 3014 led strip

Packaging & Delivery

Packaging Details: Reel and antistatic bag

Port: Shenzhen and Hongkong

Lead Time:: 5-12 working days after we confirm payment

Great advantag of the 120 leds /m 3014 led strip :

-eseco friendly
-long life span standard warranty 3 years
-complete cut / connection accessories
-no need of constant-current power feed
-low power consumption
-custom packing
-white and warm white interlaced arrangement
-CCT can be adjusted, wider CCT range
-can display several changing patterns with a controller and remote

Applications :

-Cove lighting
-Architectural lights for canopy, corridor, window, archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday, event, show, exhibition

Technical parameters :

Model	Color	LED Q"ty	LED Type	Light output (lumen/m)	Beam angle (degrees)	Voltage (V DC)	Current (A/m)	Max.Power Consumption (W/m)	IP	CRI	Continuous connection (m)
SC-IEP-HWW-12V	warm white	60/m	3014SMD	530	120°	12	0.6	7.2	65	90	10
SC-IEP-HW-24V	white	60/m		565	120°	24	0.3	7.2	65	90	10
SC-IEP-HW-12V	white	60/m		565	120°	12	0.6	7.2	65	90	10
SC-IEP-HWW-24V	warm white	60/m		530	120°	24	0.3	7.2	65	90	10
SC-IEP2-HWW-12V	warm white	120/m		980	120°	12	1.2	7.2	65	90	10
SC-IEP2-HWW-24V	warm white	120/m		1010	120°	24	0.6	7.2	65	90	10
SC-IES-HWW-12V	warm white	60/m		520	120°	12	2.4	7.2	65	90	10
SC-IES-HWW-24V	warm white	60/m		520	120°	24	1.2	7.2	65	90	10
SC-IES2-HWW-12V	warm white	120/m		1010	120°	12	2.4	7.2	65	90	10
SC-IES2-HWW-24V	warm white	120/m		1010	120°	24	1.2	7.2	65	90	10
