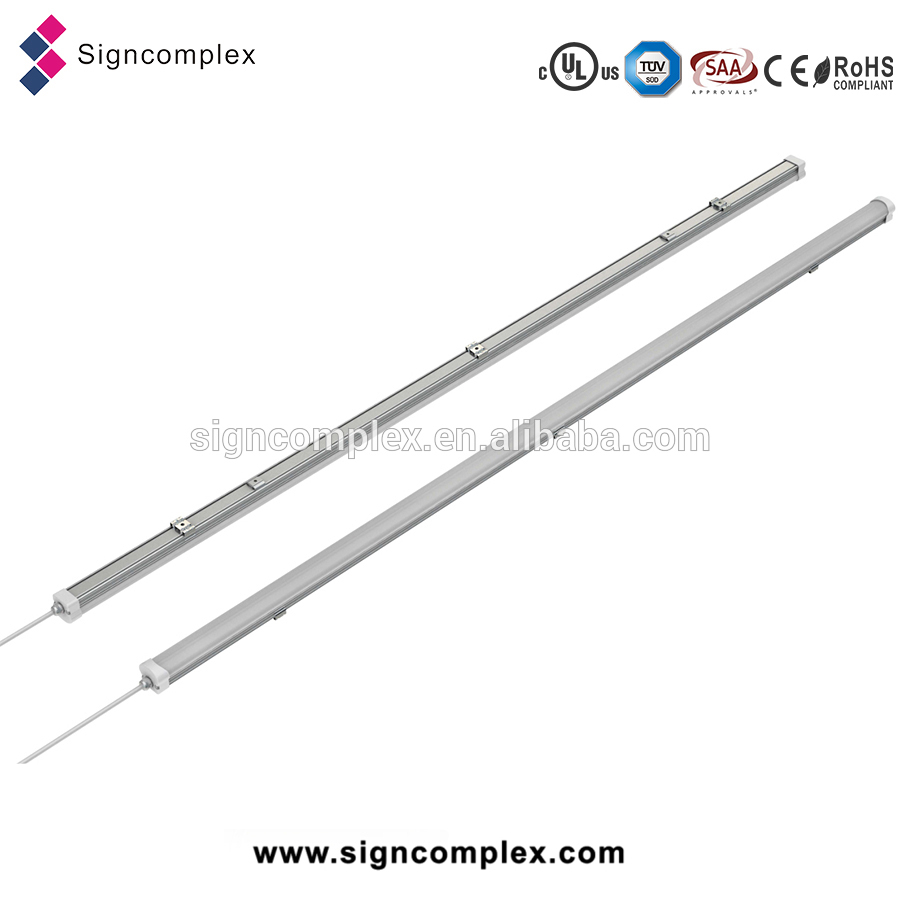

Best quality 25w 1.5m 3p led light
10w 20w 25w is available
Description of the tri-proof lamp:
Tri-proof light is usually used in environment which require water-proof, dust-proof,corrosion-proof lighting, and it is widely used in shopping mall,warehouse and other indoor places. Tri-proof light of medium power can be ceiling mounted or suspending installed. Adopt aluminum alloy and PC as the material which ensure that it can work stably in different environment. White appearance.
Lifespan: 30,000 hours. Operating environment:-20-45. CE/RoSH compliant.
Features of the tri-proof lamp:
1. Water-proof design without adhesive, so there is no water leakage caused by adhesive aging, convenient to disassemble;
2. Light panel and PSU adopt modular design,connected via terminals, easy and convenient to maintain, no need of soldering;
3. Energy saving and eco-friendly, no IR or UV ,no mercury contamination, RoHS compliant;
4. Aluminum profile+PC, high impact resistance, good waterproof and anti-aging performance;
5. High transmittance PC cover transmit soft light+small power LEDs, high light efficiency ,uniform light ;no dark spot;
6. High efficient heat dissipation, LEDs and power supply low temperature rise ,high stability of continuous working;
7. Can switch start frequently, no flicker and flare ,good color rendering performance. Compact appearance, novel design style, easy to install and transport;
Application of the tri-proof light:
Tri-proof light can be used in warehouse, parking lot,shopping mall,farm,factory, cold storage, metro, underground passage and other places
Specification of the tri-proof light:
Model# | CCT | LED Type Quantity | Lumen(lm) (±10%) | CRI | Beam angle (°) | Power | Voltage Frequency current | PF | IP Rating | Coitosion-proof Grade |
FTN-TP-025-AW-W-02 | 5500-6500K | 2835 120pcs | 2700 | ≥80 | 120° | 25 | AC 100-277V 50/60Hz 0.15A | ≥0.9 | IP65 | W |
FTN-TP-025-AW-NW-02 | 4000-4500K | 2700 | ≥80 | 120° | 25 | |||||
FTN-TP-025-AW-WW-02 | 2700-3200K | 2300 | ≥80 | 120° | 25 |
Dimensions(Unit:mm/inch):
Installation information:
1. Power off before installation;
2. First make sure the installation material can endure the weight of light, securely fix the
holder on the installation surface with installation accessories, then install the light into
the holder;
3. Connect the light wire to the wire of power supply, and process the joint with insulation
sealing;
4. If you choose suspension installation, please first fix the steel wire on the installation
surface, then put another end into the M5 screw thread hole which leave first, finally
adjust the length of steel wire and make sure it won"t loose and falling;
5.If the light has two wire terminals, the light can be connected in parallel,the max.cascade
q"ty is 20 pcs
Products Application:
Production of flowsheet:
Welcome to inquire the 1.5m 3p led light !
Please email for details!
