- Input Voltage(V):
- AC100-277V/50-60Hz
- Lamp Luminous Flux(lm):
- 18740
- Working Temperature(℃):
- -20 - +45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, LVD, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- GK-150-AW-WW-L-05
- Light Source:
- LED
- LEDQty:
- 120pcs
- CCT:
- 2700-3200K
- PF:
- ≥ 0.9
- Current:
- 1.8A
- Beamangle:
- 70°*120°
- Application:
- large workshop,warehouse,parking lot,shopping mall,farm,gas station...
- Net weight:
- 5.9kg
- Product Name:
- led low bay lights
- Item:
- china 130lm/w outdoor IP65 meanwell driver led low bay lights
- Item Type:
- High Bay Lights
- Warranty(Years):
- 5
- CRI (Ra>):
- 70
- Color Temperature(CCT):
- Warm White
- Lamp Power(W):
- 150
- LED Light Source:
- CREE/SEOUL
- Lamp Luminous Efficiency(lm/w):
- 130
- Supply Ability:
- 880000 Piece/Pieces per Month we have stock for the led low bay lights
- Packaging Details
- Net Weight:8.1KGGross Weight:8.5KG
Outer carton dimension: 900*280*190mm (1pcs/carton)
- Port
- Shenzhen and Hongkong
- Lead Time:
- 5-15 days

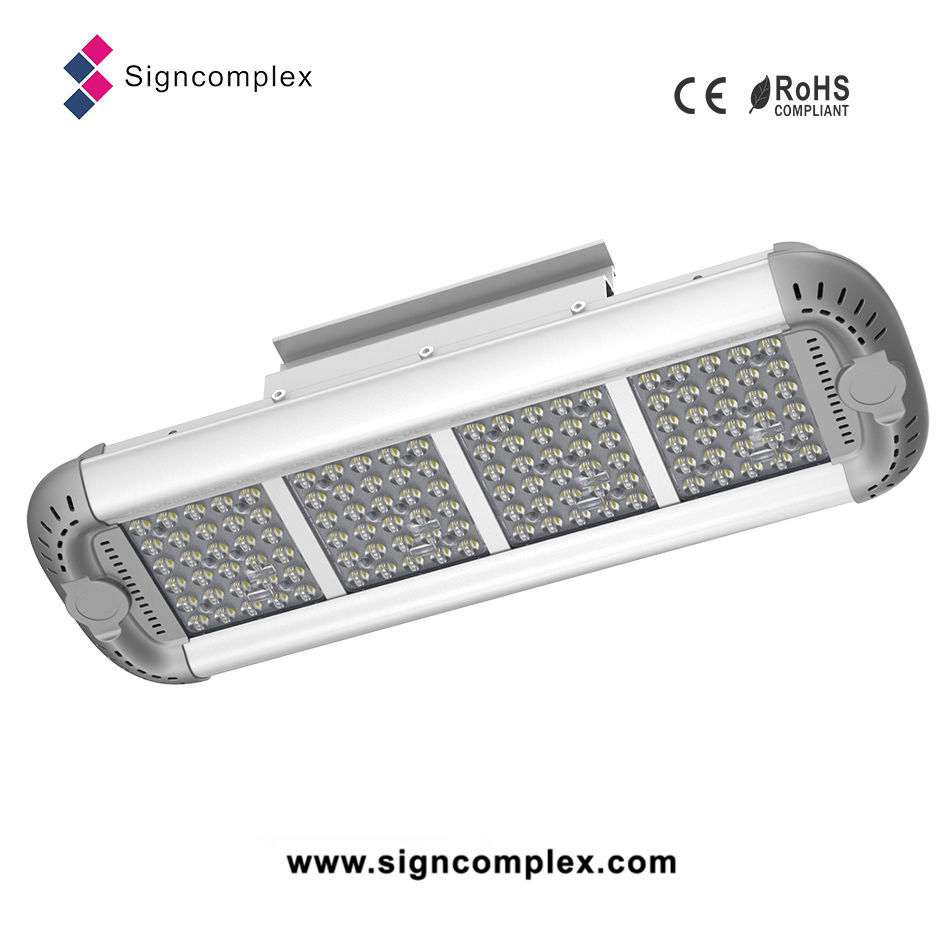

China 130lm/w outdoor IP65 meanwell driver led low bay lights
90w 120w 150w 200w 240w 300w is available
Description of the led low bay lights :
LiBayTM high bay and low bay series are mainly used for commercial and industrial lighting. With 130lm/W light output, they are ideal choices for replacing fluorescent and MH lamp source. LiBayTM lighting bring new levels of performance, technical innovation and unique design to outdoor and indoor use.
Features of the led low bay lights :
1.Unique appearance design, different from traditional high-bay light, fashion,compact,beautiful,can be customized.
2.High light effect Seoul Semiconductor and CREE LEDS optional,and light output can be up to 130lm/w.
3.Anti-glare design;better protect eyes;
4.Modular design, different power and length can be customized;
5.Meanwell power supply, PF>0.9;
6.Ceiling installation and suspension installation, convenient and quick;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Technical parameters of the led low bay lights :
Model | Color | CCT | Lumen(lm) (±10%) | LED Type | LED Qty. | Power (±10%) | Voltage Frequency | Current | Beam angle (°) | CRI | IP | PF |
GK-150-AW-W-L-01 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
GK-150-AW-NW-L-01 | netural white | 4000-4500K | 14680 | |||||||||
GK-150-AW-WW-L-01 | warm white | 2700-3200K | 13870 | |||||||||
GK-150-AW-W-L-02 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
GK-150-AW-NW-L-02 | netural white | 4000-4500K | 14680 | |||||||||
GK-150-AW-WW-L-02 | warm white | 2700-3200K | 13870 | |||||||||
GK-150-AW-W-L-04 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
GK-150-AW-NW-L-04 | netural white | 4000-4500K | 19640 | |||||||||
GK-150-AW-WW-L-04 | warm white | 2700-3200K | 18740 | |||||||||
GK-150-AW-W-L-05 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
GK-150-AW-NW-L-05 | netural white | 4000-4500K | 19640 | |||||||||
GK-150-AW-WW-L-05 | warm white | 2700-3200K | 18740 |
Applications:
Suitable for large workshop, warehouse, parking lot, shopping mall, farm, gas station
and other places.
Package Information:
Net Weight:5.9KG Gross Weight:7.6KG
Production of flowsheet:
Welcome to inquire the led low bay lights !
Please email for details!
