Home > Products > china Energy saving round 15w cob led dmx adressable downlight

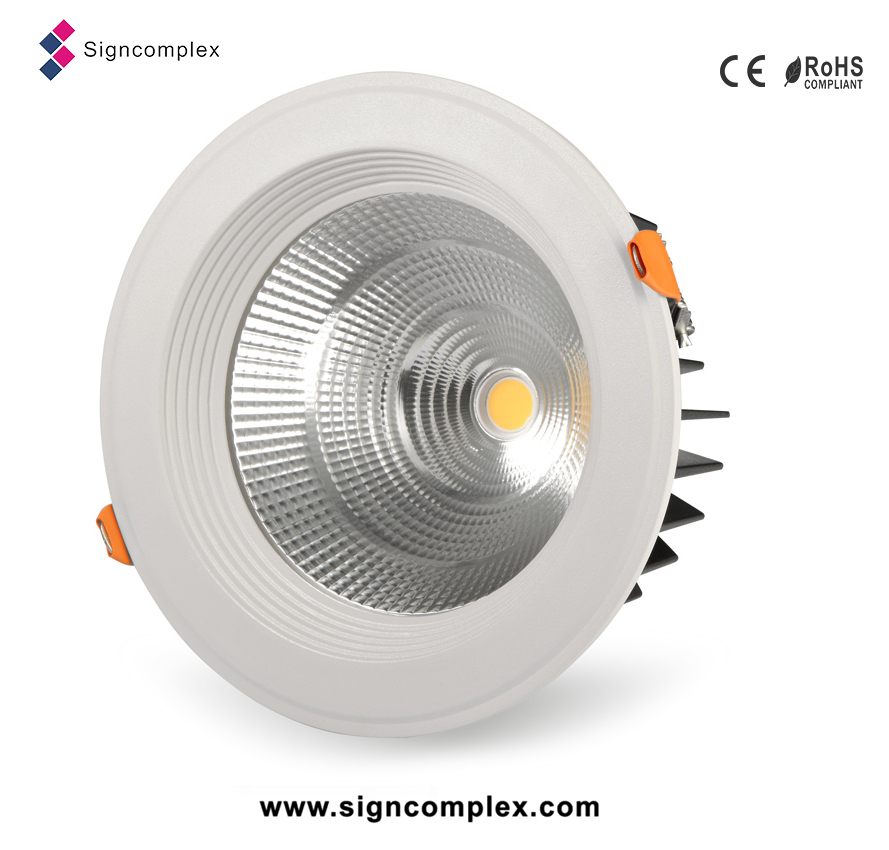

china Energy saving round 15w cob led dmx adressable downlight
Click on the image to view the original image
Product: views:2china Energy saving round 15w cob led dmx adressable downlight
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-240V AC
Lamp Luminous Flux(lm):
1040
Working Lifetime(Hour):
50000
Lamp Body Material:
PMMA
IP Rating:
IP33
Certification:
CE, EMC, LVD, RoHS, UL
Model Number:
DLD05-015
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
color:
white,warm white,natural white
Shape:
Round
Beam Angle(°):
55
LED Quantity:
1
CCT:
6000-6300k(W)
Max.Current (mA):
170
Weight:
0.47kg
Product name:
dmx adressable downlight
item:
china Energy saving round 15w cob led dmx adressable downlight
Keyword:
dmx adressable downlight
Item Type:
Downlights
Working Temperature(℃):
-20 - +40
CRI (Ra>):
80
LED Light Source:
Epistar COB LED
Warranty(Years):
3
Lamp Power(W):
15
Lamp Luminous Efficiency(lm/w):
100
Color Temperature(CCT):
6000-6300K/2900-3100K/3900-4100K
Supply Ability
Supply Ability:
880000 Piece/Pieces per Month we have stock for the dmx adressable downlight
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hongkong
Lead Time:
5-15 working days after we confirm payment

China Energy Saving Round 15w Cob Led Dmx Adressable Downlight



9w 15w 20w 25w 35w is available





Features of the dmx adressable downlight :

*Use die-casting magnesium alloy to make the main body.
*Use PMMA as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance.
*The driver and main body use separation design which ensure the long life of both parts.
*Energy saving LED driver.
*Can replace traditional downlight.





Electricity Parameter of the dmx adressable downlight :

-Rated voltage:  AC100-240V  50-60Hz
-Rated wattage: 15W
-Application environment: -20C - +40C


Absolute Maximum Rating
ParameterRatingUnits
Aluminum Heat sink Temperature66
Operating Temperature-20~+40
Storage Temperature-20~+80
Equilibrium Temperature58





Specifications

Model Number

Color

LED Type

Light Output
(lumen)

CRI

Beam Angle(degrees)

CCT

Max.Current
(mA)

Power(w)

Voltage

Weight

DLD05-015-AW-W-01

White

Epistar COB

LED

1040

>80

55°

6000-6300k

170

    9

AC 100-240V
50-60Hz

0.47kg

DLD05-015-AW-WW-01

Warm White

890

>80

55°

2900-3100k

DLD05-015-AW-NW-01

Natural White

920

>80

55°

3900-4100k




Application

 Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.



Dimensions (Unit: mm)



Installation drawing







Production of flowsheet:



Main products
Certifications



Company Image











Sales Team



Production line



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- panel lights
- linear light
- high bay
- corn bulb

- tube

-LED controller

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?





Welcome to inquire the dmx adressable downlight !





Please email for details!
