Home > Products > 150lm/w smd2835 1.2m 70w IP65 tri-proof led light
150lm/w smd2835 1.2m 70w IP65 tri-proof led light
Click on the image to view the original image
Product： views：2150lm/w smd2835 1.2m 70w IP65 tri-proof led light
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
AC100-277V 50/60Hz
Lamp Luminous Efficiency(lm/w):
150
CRI (Ra>):
80
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, RoHS, SAA
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
led tri-proof lamp
Light Source:
LED
LED Light Source:
SMD2835
Lamp Luminous Flux(lm):
9420
Model No.:
TP-070-AW-W-H-03
CCT:
5500-6500K
Lamp cover:
Frost/Clear
Beam(angle°):
230°
PF:
>0.9
Saving energy:
80% compared CFL
Max.Current(Amps):
0.8A
LED qty.:
456pcs
Item Type:
Tube Lights
Supply Ability
Supply Ability:
950000 Piece/Pieces per Month We have stock for the tri-proof led light
Packaging & Delivery
Packaging Details
the 20w led tri proof light
Single package dimension:690*80*80mm
Outercarton dimension: ,12pcs/caron(gross weight14kg) 700*340*270mm
Port
Shenzhen and Hongkong

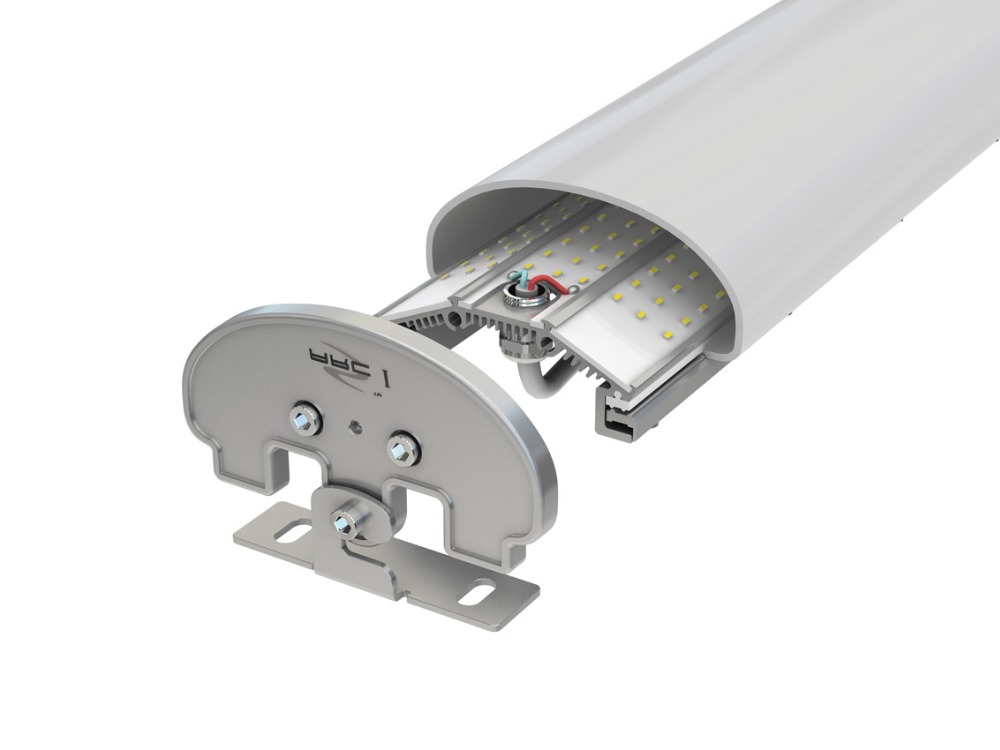

150lm/w smd2835 1.2m 70w IP65 tri-proof led light





Tri-proof LED Lamp

TP-070-AW-H-03





Description:
This product adopt long lifetime LEDs as light source, smooth light without glare, simple looking design. Impace-proof,water-proof and dust-proof,IP rating is up to IP65,can be used in different environment.
Use aluminum alloy and PC as material which ensure product can work stably in different environment.





Features:

1. ArcS TM tri-proof lamp with 230° beam angle to replace fluorescent tube;
2. Water-proof, dust-proof, col l ision-proof design, can be used in harsh environment;

3.Use fire-resistant PC cover,can pass 650° glow wire test;
4.High efficiency ,up to 140lm/w;
5. External power, easy to maintain;
6. Anti-glare cover,protect eyes better.



Technical parameters:

Model NumberColorLED Type
/Quantity		Light output
(lumen)		Beam angle
(degrees)		CCTCRIMax.Current
(Amps)		Power
(W)		VoltagePF
TP-070-AW-W-H-03whiteSMD2835
LED
(456pcs)		94202305500-6500K>800.870AC100-277V
50/60Hz		>0.9
TP-070-AW-NW-H-03natural white92002304000-4500K
TP-070-AW-WW-H-03warm white89502302700-3200K





Main Applications :
Suitable for outdoor hallway,workshop, warehouse, parking lot, shopping mal l, farm, gas station, etc.
