Home > Products > china Meanwell driver 130lm/w led high bay light 36000 lumen

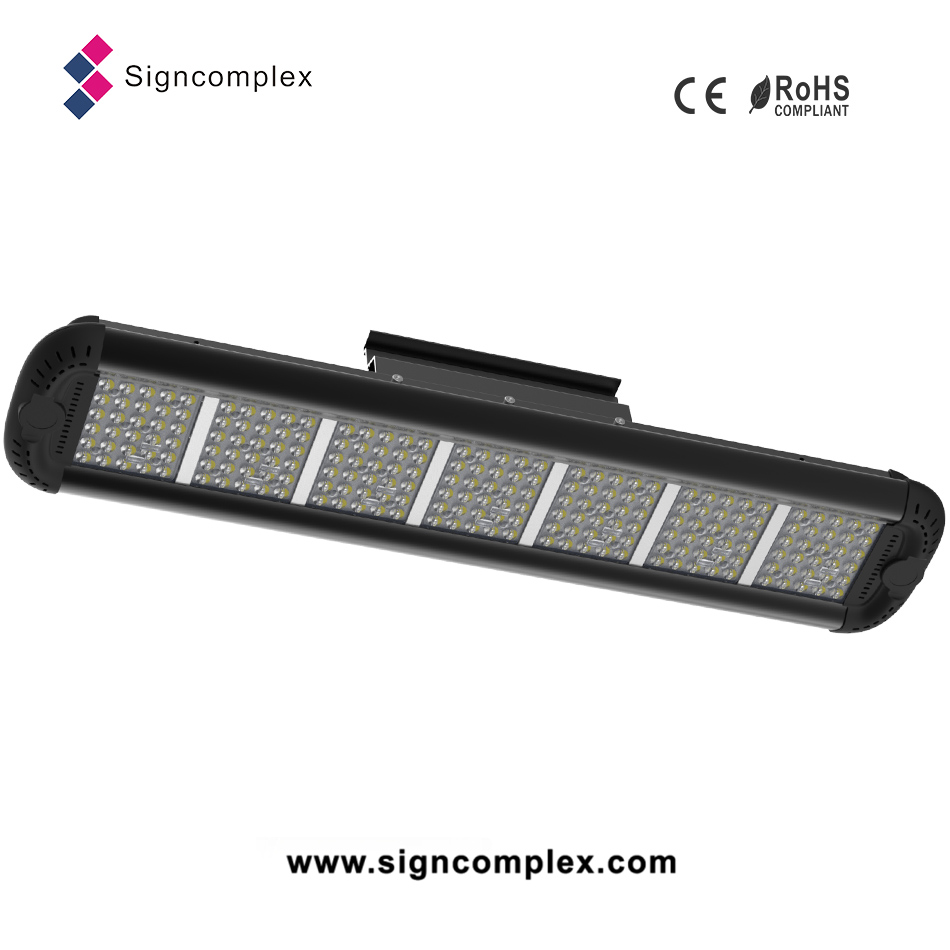

china Meanwell driver 130lm/w led high bay light 36000 lumen
Click on the image to view the original image
Product： views：6china Meanwell driver 130lm/w led high bay light 36000 lumen
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
36460
Working Temperature(℃):
-20 - +40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
GK-300-AW-W-L-04
Light Source:
LED
Net Weight:
9.33kg
CCT:
5500-6500K
Current:
3.5A
Beam angle:
70°*120°
LED Qty.:
210pcs
PF:
>0.9
product name:
led high bay light 36000 lumen
item:
china Meanwell driver 130lm/w led high bay light 36000 lumen
Item Type:
High Bay Lights
Warranty(Years):
5
CRI (Ra>):
70
Color Temperature(CCT):
Pure White
Lamp Power(W):
300
LED Light Source:
SEOUL/CREE
Lamp Luminous Efficiency(lm/w):
130
Supply Ability
Supply Ability:
950000 Piece/Pieces per Month We have stock for led high bay light 36000 lumen
Packaging & Delivery
Packaging Details
Common Industrial Packaging, Inner Box and Cartons
Port
Shenzhen and Hongkong
Lead Time:
5-15days

China Meanwell driver 130lm/w led high bay light 36000 lumen



LiBayTM High Bay& Low Bay
Lighting Seried300W
GK-300-AW-L
90w 120w 150w 200w 240w 300w  is available




Description of the led high bay light 36000 lumen :
LiBayTM high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.


Features of the led high bay light 36000 lumen :
1.Unique appearance design,different from traditional high-bay light,fashion,

compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.





Technical parameters :

ModelColorCCTLumen(lm)
(±10%)		LED TypeLED Qty.Power
(±10%)		Voltage
Frequency		CurrentBeam angle
(°)		CRIIPPF
GK-300-AW-W-L-01white5500-6500K27720CREE210pcs300wAC100-277V
50/60Hz		3.5A70°*120°>7065>0.9
GK-300-AW-NW-L-01neutral white4000-4500K28100
GK-300-AW-WW-L-01warm white2700-3200K25080
GK-300-AW-W-L-02white5500-6500K27720CREE210pcs300wAC100-277V
50/60Hz		3.5A70°*120°>7065>0.9
GK-300-AW-NW-L-02neutralwhite4000-4500K28100
GK-300-AW-WW-L-02warm white2700-3200K25080
GK-300-AW-W-L-04white5500-6500K36460SEOUL210pcs300wAC100-277V
50/60Hz		3.5A70°*120°>7065>0.9
GK-300-AW-NW-L-04neutral white4000-4500K35640
GK-300-AW-WW-L-04warm white2700-3200K35620
GK-300-AW-W-L-05white5500-6500K36460SEOUL210pcs300wAC100-277V
50/60Hz		3.5A70°*120°>7065>0.9
GK-300-AW-NW-L-05neutral white4000-4500K35640
GK-300-AW-WW-L-05warm white2700-3200K35620



Application :

Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.



Production of flowsheet:


Company Image



Main products



Sales Team



Trade Shows



Welcome to inquire the led high bay light 36000 lumen !





Please email for details!
