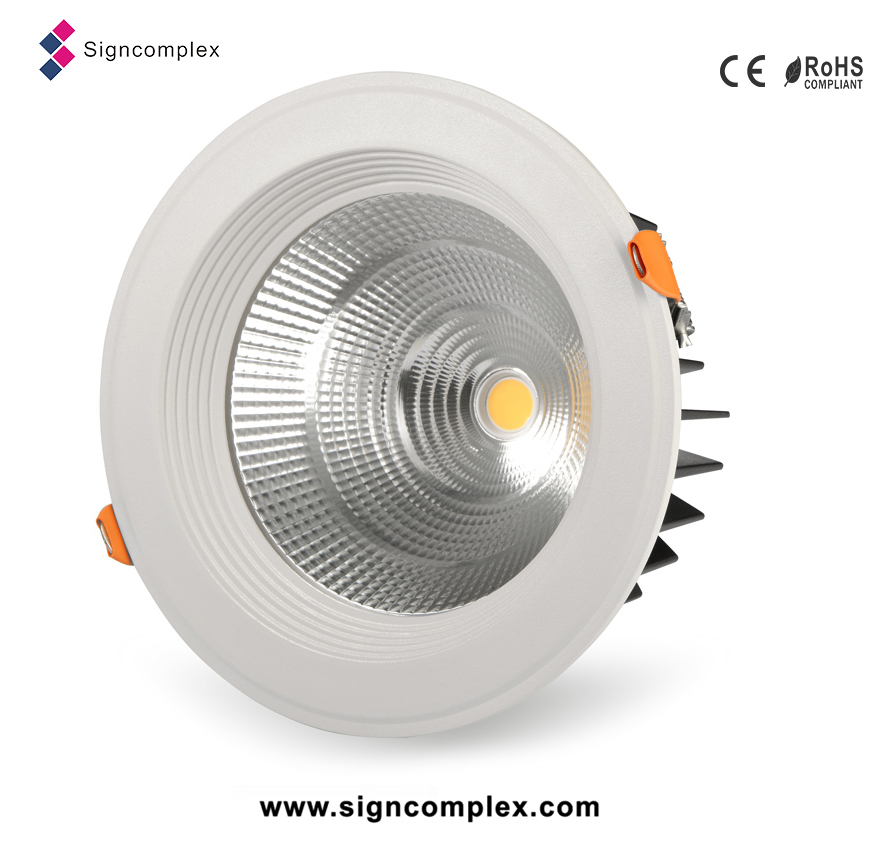

china Energy saving Epistar chip 15w cob led lux down light
Click on the image to view the original image
Product： views：2china Energy saving Epistar chip 15w cob led lux down light
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-240V AC
Lamp Luminous Flux(lm):
1040
Working Lifetime(Hour):
50000
Lamp Body Material:
PMMA
IP Rating:
IP33
Certification:
CE, EMC, LVD, RoHS, UL
Model Number:
DLD05-015
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
color:
white,warm white,natural white
Beam Angle(°):
55
Shape:
Round
Weight:
0.47kg
LED Quantity:
1
CCT:
6000-6300k(W)
Max.Current (mA):
170
Product name:
led lux down light
item:
china UGR<19 Epistar chip 15w cob led down light with CE ROHS
Item Type:
Downlights
Warranty(Years):
3
CRI (Ra>):
80
Working Temperature(℃):
-20 - +40
Lamp Power(W):
15
LED Light Source:
Epistar COB LED
Lamp Luminous Efficiency(lm/w):
100
Color Temperature(CCT):
6000-6300K/2900-3100K/3900-4100K
Supply Ability
Supply Ability:
880000 Piece/Pieces per Month we have stock for the led lux down light
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hongkong
Lead Time:
5-12 working days after we confirm payment

China Energy saving Epistar chip 15w cob led lux down light



9w 15w 20w 25w 35w is available





Features of the led lux down light  :

*Use die-casting magnesium alloy to make the main body.
*Use PMMA as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance.
*The driver and main body use separation design which ensure the long life of both parts.
*Energy saving LED driver.
*Can replace traditional downlight.



Electricity Parameter of the led lux down light :

-Rated voltage:  AC100-240V  50-60Hz
-Rated wattage: 15W
-Application environment: -20C - +40C


Absolute Maximum Rating
ParameterRatingUnits
Aluminum Heat sink Temperature66c°
Operating Temperature-20~+40c°
Storage Temperature-20~+80c°
Equilibrium Temperature58c°





Specifications

Model Number

Color

LED Type

Light Output
(lumen)

CRI

Beam Angle(degrees)

CCT

Max.Current
(mA)

Power(w)

Voltage

Weight

DLD05-015-AW-W-01

White

Epistar COB

LED

1040

>80

55°

6000-6300k

170

    9

AC 100-240V
50-60Hz

0.47kg

DLD05-015-AW-WW-01

Warm White

890

>80

55°

2900-3100k

DLD05-015-AW-NW-01

Natural White

920

>80

55°

3900-4100k




Application

 Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.



Dimensions (Unit: mm)



Installation drawing





 Production of flowsheet:



Company Image



Main products



Company Showroom

Trade Shows



Sales Team



welcome to inquire the led lux down light !



Please email for details!
