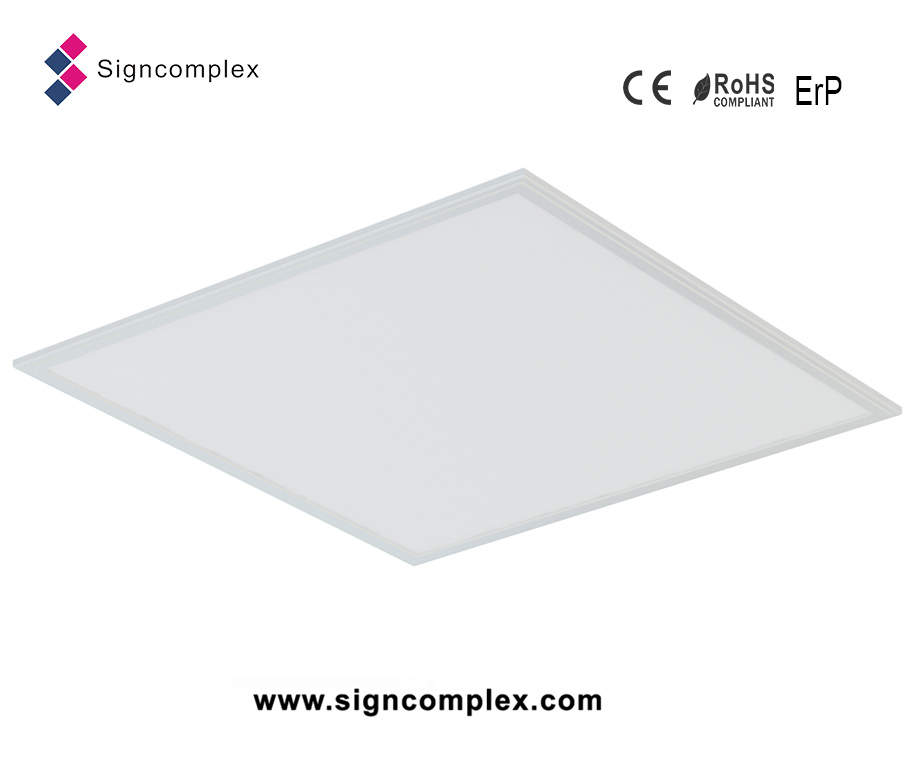

UK slim 9mm diffused led light panel with 5 warranty years

Click on the image to view the original image

Product：	views：2UK slim 9mm diffused led light panel with 5 warranty years
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-240V 50-60Hz

Lamp Luminous Flux(lm):: 2824

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 45

Working Lifetime(Hour):: 50000

Lamp Body Material:: 6063 aluminum

IP Rating:: IP40

Certification:: CE, EMC, FCC, LVD, PSE, SAA, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Light Source:: LED

Size:: 600*600mm

Installation:: Embeded/Ceiling/Hanging

Beam Angle:: 110degree

Max Current:: 0.85A

Dimmable:: dimmable is available

Shape:: Square

Weight:: 3.4kg

Color Temperature(CCT):: 2700-3200K, Warm White

Reflector:: Opal color PC

item:: UK slim 9mm diffused led light panel with 5 warranty years

Item Type:: Panel Lights

LED Light Source:: SMD2835

Warranty(Years):: 5

Lamp Luminous Efficiency(lm/w):: 90

Supply Ability

Supply Ability:: 8500000 Piece/Pieces per Week we have stock for the diffused led light panel

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

6060-F Series High Brightness Version
SC-PSC24CE6060-S35W
SC-PSC24NE6060-S35W
SC-PSC24WE6060-S35W

Description :
LED Square Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth l ight beam,low glare rating, low l ight pol lution, and excel lent protection from eyestrain. It can be widely used as interior lighting in shops, supermarkets, mal ls and hospitals, etc

Features :

1. Color:cool white(5000-6500K), nature white(3700-4500K)
warm white(2700-3200K), other avai lable.
2. Power factor>0.95
3. UGR<19
4. Beam angle: 110 Degree
5. Saving energy: 50%
6. Life span more than 36,000Hrs
7. IP code: Ip40
8. Standard warranty: 3years
9. Fol low RoHS and CE Certified.

Technical Parameter :
Input Voltage: AC100-240V 50-60Hz
Max Current: 0.85A
LED type: 2835 SMD LED
Output Power: 35W
Reflector: Opal color PC

Specifications :

Model	Color	LED Type	CCT	Power	CRI	Light Output	Voltage	Beam angle	Weight
SC-PSC24CE6060-S35W SC-PSC24NE6060-S35W SC-PSC24WE6060-S35W	Cool White	SMD 2835	5000-6500K	35W	>80	2858lm	AC100-240V 50-60Hz	110°	3.4kg
	nature white	SMD 2835	3700-4500K	35W	>80	2866lm	AC100-240V 50-60Hz	110°	3.4kg
	Warm White	SMD 2835	2700-3200K	35W	>80	2824lm	AC100-240V 50-60Hz	110°	3.4kg

Applications
- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution buildings
- Schools, col leges, universities and hospitals
-Places which needs energy saving and high color rendering index lighting.
