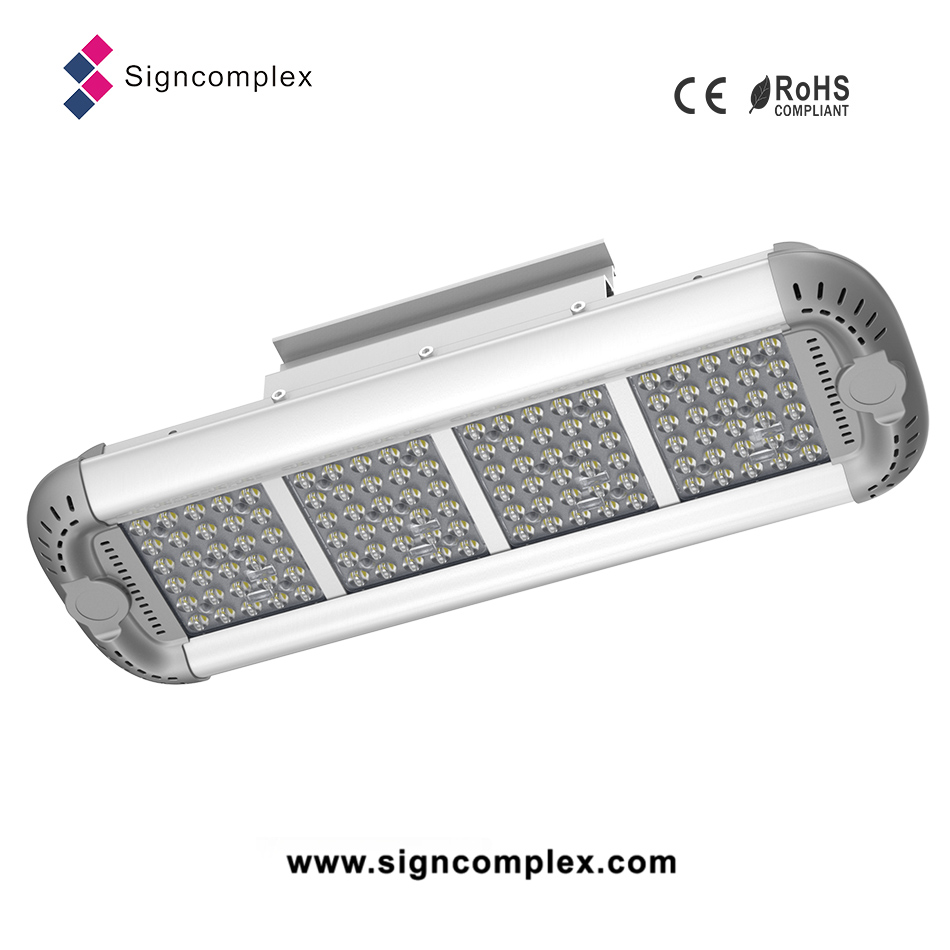

China new 130lm/w IP65 Seoul meanwell driver LED highbay
90w 120w 150w 200w 240w 300w is available
Description of the meanwell driver LED highbay :
LiBayTM high bay and low bay series are mainly used for commercial and industrial lighting. With 130lm/W light output, they are ideal choices for replacing fluorescent and MH lamp source. LiBayTM lighting bring new levels of performance, technical innovation and unique design to outdoor and indoor use.
Features of the meanwell driver LED highbay:
1.Unique appearance design, different from traditional high-bay light, fashion,compact,beautiful,can be customized.
2.High light effect Seoul Semiconductor and CREE LEDS optional,and light output can be up to 130lm/w.
3.Anti-glare design;better protect eyes;
4.Modular design, different power and length can be customized;
5.Meanwell power supply, PF>0.9;
6.Ceiling installation and suspension installation, convenient and quick;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Technical parameters of the meanwell driver LED highbay :
| Model | Color | CCT | Lumen(lm) (±10%) | LED Type | LED Qty. | Power (±10%) | Voltage Frequency | Current | Beam angle (°) | CRI | IP | PF |
| GK-150-AW-W-L-01 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-01 | netural white | 4000-4500K | 14680 | |||||||||
| GK-150-AW-WW-L-01 | warm white | 2700-3200K | 13870 | |||||||||
| GK-150-AW-W-L-02 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-02 | netural white | 4000-4500K | 14680 | |||||||||
| GK-150-AW-WW-L-02 | warm white | 2700-3200K | 13870 | |||||||||
| GK-150-AW-W-L-04 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-04 | netural white | 4000-4500K | 19640 | |||||||||
| GK-150-AW-WW-L-04 | warm white | 2700-3200K | 18740 | |||||||||
| GK-150-AW-W-L-05 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V 50/60Hz | 1.8A | 70°*120° | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-05 | netural white | 4000-4500K | 19640 | |||||||||
| GK-150-AW-WW-L-05 | warm white | 2700-3200K | 18740 |
Applications:
Suitable for large workshop, warehouse, parking lot, shopping mall, farm, gas station
and other places.
Package Information:
Net Weight:5.9KG Gross Weight:7.6KG
Production of flowsheet:
Welcome to inquire the meanwell driver LED highbay !
Please email for details!
