- Input Voltage(V):
- DC36-42V
- Lamp Luminous Flux(lm):
- 2598
- CRI (Ra>):
- 80
- Working Temperature(℃):
- 20 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP33
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- SC-PSC24CE6060-C
- Light Source:
- LED
- Shape:
- Square
- Dimmable:
- Avaliable
- LED Quantity:
- 192
- Aluminum Heat sink Temperature:
- 70°
- Beam Angle:
- 110 °
- Equilibrium Temperature:
- 58°
- Color Temperature:
- 5000-7000K,2700-3500K,4000-5000K
- Product Name:
- 595x595x9
- item:
- High efficiency600*600*9mm slim led panel light
- Item Type:
- Panel Lights
- Color Temperature(CCT):
- Cool White
- LED Light Source:
- Epistar 4014
- Warranty(Years):
- 3
- Lamp Power(W):
- 36
- Lamp Luminous Efficiency(lm/w):
- 90
- Supply Ability:
- 8000000 Piece/Pieces per Month we have stock for the 595x595x9
- Packaging Details
- Common industrial packaging,Inner box and carton
- Port
- Shenzhen and Hong Kong
- Lead Time:
- 5-12 working days after we confirm payment

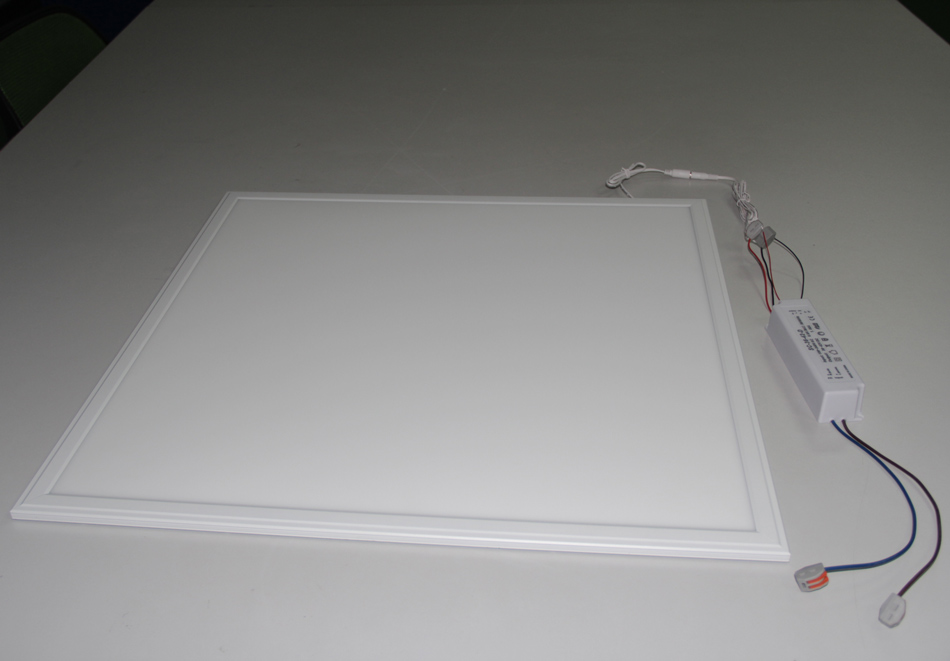

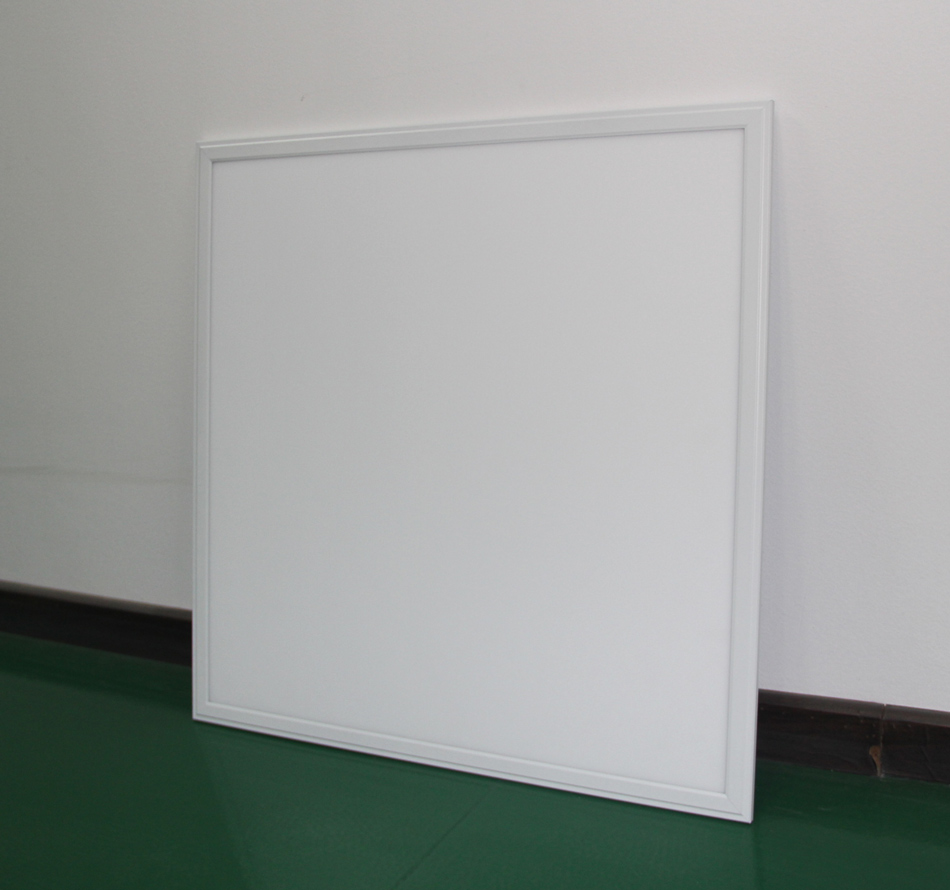

Chinese Signcomplex Super Slim Flat Square Led Panel Light 595x595x9
Size | 600x600x9mm |
Power | 36W |
Voltage(In-put) | DC42V |
Led Type | Epistar 4014 |
Lumen | 2598 |
Material | Aluminum +PMMA |
Power Supply | External |
Color Temperature | Warm white, Pure white,Cool white |
Beam Angle | 110 degree |
Warranty | 3 years for commercial use, 5years for home use |
CRI | >80 |
PF | >0.9 |
Certificates | CE, RoHS,SAA |
Led emitting | Led side emitting |
Working Life | 50,000Hours |
Working Temp | -20-50 °C |
Advantage of the led panel light
-All sides are lined with LED"s to grant optimal illumination.
-High light output at a reduced energy consumption of up to 50%.
-Over 50"000 hours life expectancy.
-Wide angle of deflection with even light distribution.
-No start-up time, no flickering, no humming.
-High efficiency (95%) constant current driver with built in overheat
-protection that remains stable at a wide range of input voltages.
-Independent LED circuit prevents complete blackout in case an LED fails.
-Environmentally friendly, mercury and lead free.
-Causes no electromagnetic interference.
Dimensions(Unit:mm/inch)
Absolute Maximum Rating of the led panel light
Electrical Connection of the led panel light
Installation Instructions of the led panel light
Packing Specification(mm)
Applications of led panel light
*Hotels
*Conference / Meeting rooms
*Factories & Offices
*Commercial Purposes.
*Residential / Institution Buildings
*Schools, Colleges & Universities
*Hospitals
*Places where energy saving and high color rendering index lighting are needed
Production of flowsheet:
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
Welcome to inquire the 595x595x9 !
