Home > Products > Signcomplex ultra slim square 36w 60x60 led panel

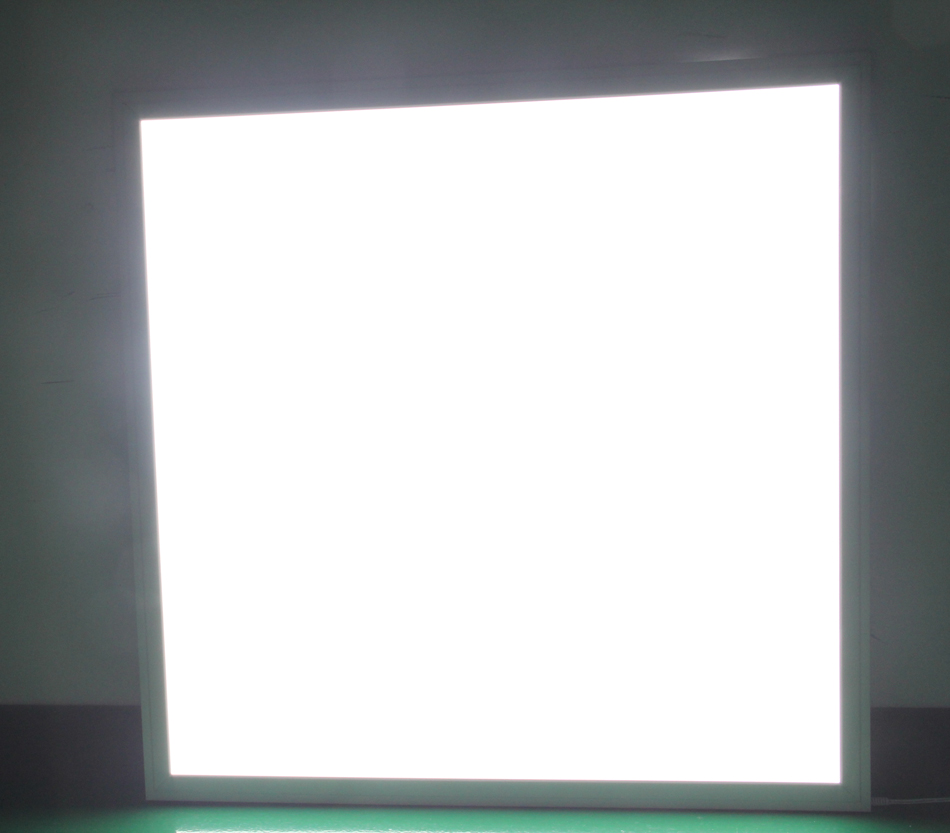

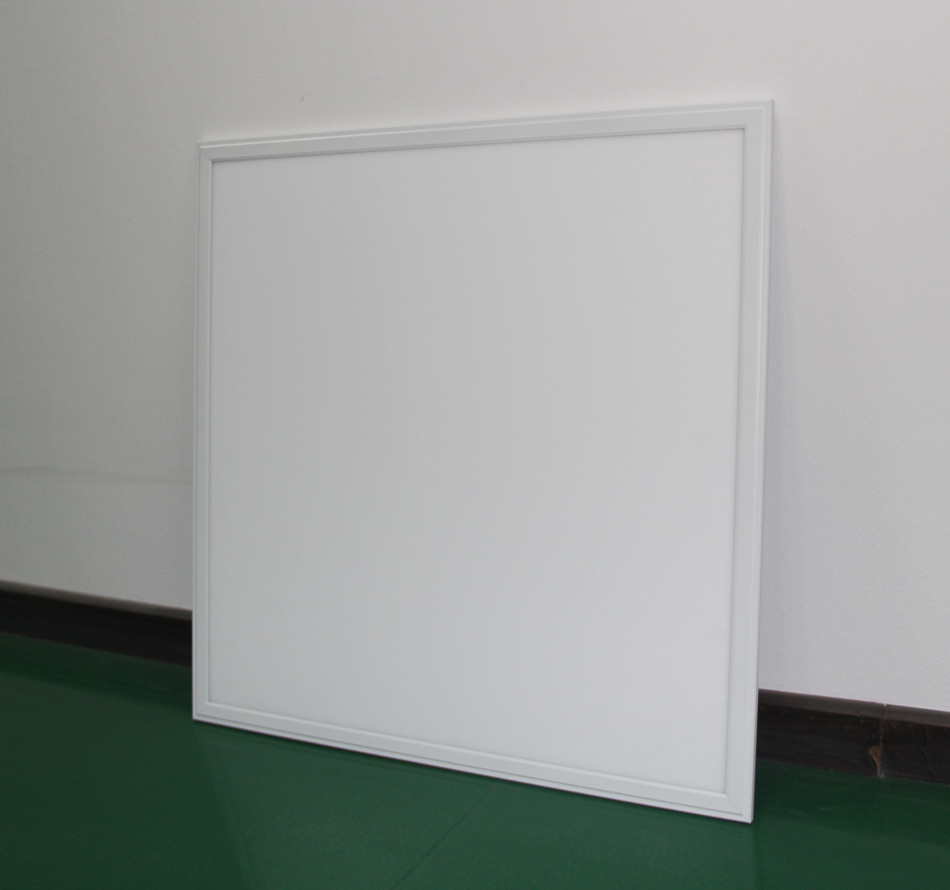

Signcomplex ultra slim square 36w 60x60 led panel
Click on the image to view the original image
Product： views：2Signcomplex ultra slim square 36w 60x60 led panel
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
DC36-42V
Lamp Luminous Flux(lm):
2348.8
CRI (Ra>):
80
Working Temperature(℃):
20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP33
Certification:
CE, EMC, LVD, RoHS, SAA
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-PSC24NE6060-C36W
Light Source:
LED
Shape:
Square
LED Quantity:
192
Dimmable:
Avaliable
Aluminum Heat sink Temperature:
70°
Dimension:
600*600*9mm
CCT:
3900-4500K
Beam Angle:
110 °
Equilibrium Temperature:
58°
Product Name:
60x60 led panel
item:
Signcomplex ultra slim square 36w 60x60 led panel
Item Type:
Panel Lights
Warranty(Years):
3
Color Temperature(CCT):
Cool White
Lamp Power(W):
36
LED Light Source:
Epistar 4014
Lamp Luminous Efficiency(lm/w):
80
Supply Ability
Supply Ability:
9500000 Piece/Pieces per Month sample is avaliable for the 60x60 led panel
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hong Kong
Lead Time:
5-12 working days after we confirm payment

Signcomplex ultra slim square 36w 60x60 led panel





Features of the  60x60 led panel


Size

600x600x9mm

Power

36W

Voltage(In-put)

DC42V

Led Type

Epistar 4014

Lumen

2598

Material

Aluminum +PMMA

Power Supply

External

Color Temperature

Warm white, Pure white,Cool white

Beam Angle

110 degree

Warranty

3 years for commercial use, 5years for home use

CRI

>80

PF

>0.9

Certificates

CE, RoHS,SAA

Led emitting

Led side emitting

Working Life

50,000Hours

Working Temp

 -20-50 °C





Advantage of the 60x60 led panel

-All sides are lined with LED"s to grant optimal illumination.

-High light output at a reduced energy consumption of up to 50%.
-Over 50"000 hours life expectancy.
-Wide angle of deflection with even light distribution.
-No start-up time, no flickering, no humming.
-High efficiency (95%) constant current driver with built in overheat
-protection that remains stable at a wide range of input voltages.
-Independent LED circuit prevents complete blackout in case an LED fails.
-Environmentally friendly, mercury and lead free.
-Causes no electromagnetic interference.



Dimensions(Unit:mm/inch)





Absolute Maximum Rating of the  60x60 led panel





Electrical Connection of the  60x60 led panel

Installation Instructions of the 60x60 led panel



Packing Specification(mm)

Applications of  60x60 led panel

*Hotels

*Conference / Meeting rooms

*Factories & Offices

*Commercial Purposes.

*Residential / Institution Buildings

*Schools, Colleges & Universities

*Hospitals

*Places where energy saving and high color rendering index lighting are needed



Production of flowsheet:



Company Image



Main products



Sales Team



Trade Shows



Our service

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. Distributer ship is offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.





Welcome to inquire the 60x60 led panel !
