Home > Products > distinctive design dimmable 3inch led downlight 7w

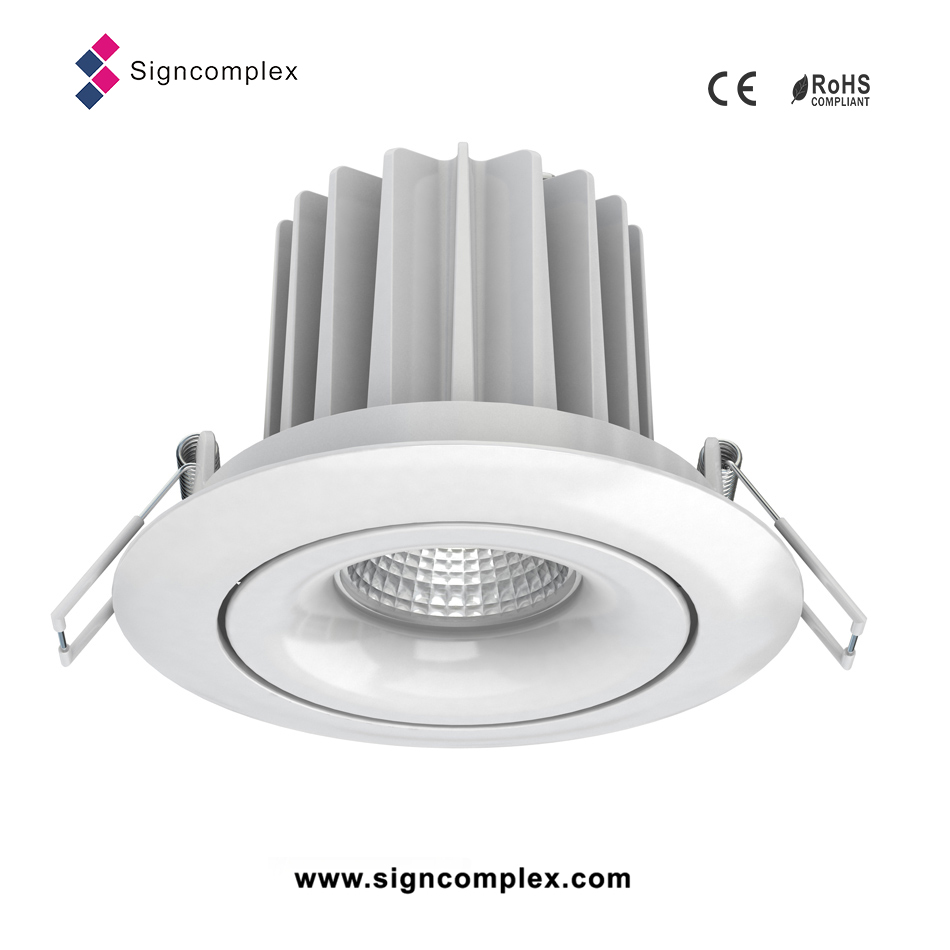

distinctive design dimmable 3inch led downlight 7w

Click on the image to view the original image

Product：	views：2distinctive design dimmable 3inch led downlight 7w
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-240V AC

Lamp Luminous Flux(lm):: 510

Working Lifetime(Hour):: 50000

Lamp Body Material:: Die-casting housing

IP Rating:: IP20

Certification:: CE, RoHS

Model Number:: MDL3 -007-AW-W-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Beam angle:: 28°40°55°

CCT:: 5000K

Certificates:: CE ROHS DALI

Power:: 5W/7W/9W

Application:: office, cabinet, restaurant, shop and corridor, etc

PF:: >0.9

Product name:: led downlight 7w

item:: distinctive design dimmable 3inch led downlight 7w

Item Type:: Downlights

Warranty(Years):: 3 years

CRI (Ra>):: 80

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 7

LED Light Source:: COB ( Epistar )

Lamp Luminous Efficiency(lm/w):: 120

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Week we have stock for led downlight 7w

Packaging & Delivery

Packaging Details: Inner Box Dimension:105*105*125mm
Carton Box Dimension:445*230*280MM(16pcs)

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

distinctive design dimmable 3inch led downlight 7w

Description of the led downlight 7w :

Luna 3" COB downlight is designed to replace halogen 35W, 50W downlight, delivering halogen-like warm white accent beam. The patented heat-sink design maintain perfect heat dissipation. It provides 3 types of beam angle for various accent beam demand, could fit most of halogen fittings in the market. With Signcomplex designed fitting it can be 358°horizontal and 30°vertical rotatable

Features of the led downlight 7w :

1. Die-casting housing, distinctive design for better heat dissipation
2. Delivering halogen-like accent beam, uniform light distribution, no light circle or dot
3.One external driver make sure low heat, good performance.
Working at constant current so that LED functions stably and maintain long life time. Strain relief on both sides make sure cables never loose by strong strength
4. More choices of beam angle for various demands
5. The reflectors are interchangable, help reduce inventory cost.
6. Anti-glare optic design, UGR<19
7. Reliable light source, COB with Epistar chip

Specification:

Model #	CCT	LED Type	Lumen(lm) (±10%)	Beam angle	CRI	Power(W) (±10%)	Comparable Halogen Wattage	Voltage (V)	PF
MDL3 -005-AW-W-01	5000K	COB ( Epistar chip )	370	28°40°55°	>80	5W	35W	100-240V AC	>0.9
MDL3 -005-AW-NW-01	4000K		400
MDL3 -005-AW-WW-01	3000K		380
MDL3 -007- AW-W-01	5000K		510			7W	50W
MDL3 -007-AW-NW-01	4000K		570
MDL3 -007-AW-WW-01	3000K		500
MDL3 -009-AW-W-01	5000K		780			9W	high light for special demand
MDL3 -009-AW-NW-01	4000K		830
MDL3 -009-AW-WW-01	3000K		750

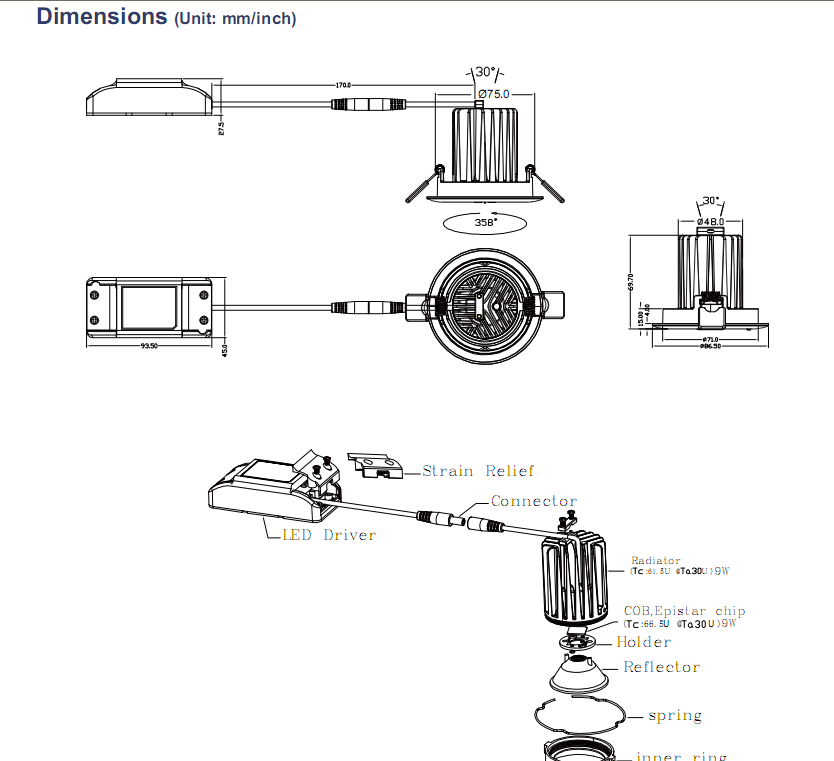

Dimension:

Install drawing:

Package information:

C O B3"
Inner Box Dimension:105*105*125mm
Carton Box Dimension:445*230*280MM(16pcs)
Single Light Net Weight:0.28kg
Single Light Gross Weight:0.34kg
Carton Box Gross Weight:6.5kg

Application:

Both residential lighting and commercial lighting...
