Signcomplex 5 years warranty led tube t8

Click on the image to view the original image

Product：	views：2Signcomplex 5 years warranty led tube t8
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:42

Product Details

Overview

Quick Details

Warranty(Years):: 5

Input Voltage(V):: 12V/24V DC 110-240AC

Lamp Luminous Efficiency(lm/w):: 130

CRI (Ra>):: 80

Working Temperature(℃):: 20 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, EMC, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: T8

Light Source:: LED

Lamp Luminous Flux(lm):: 2859

LED Light Source:: Epistar 2835

Modelnumber:: ST8-022-AW-WW-01C

LED quantity:: 240pcs

Dimension:: 1500mm

PF:: >0.92

Cover:: Frosted/Clear

Power:: 9W/18W/22W

Power Efficiency:: >90%

item:: Signcomplex 5 years warranty led tube t8

Item Type:: Tube Lights

Supply Ability

Supply Ability:: 800000 Piece/Pieces per Month We have stock for the ul dlc listed led tube t8

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

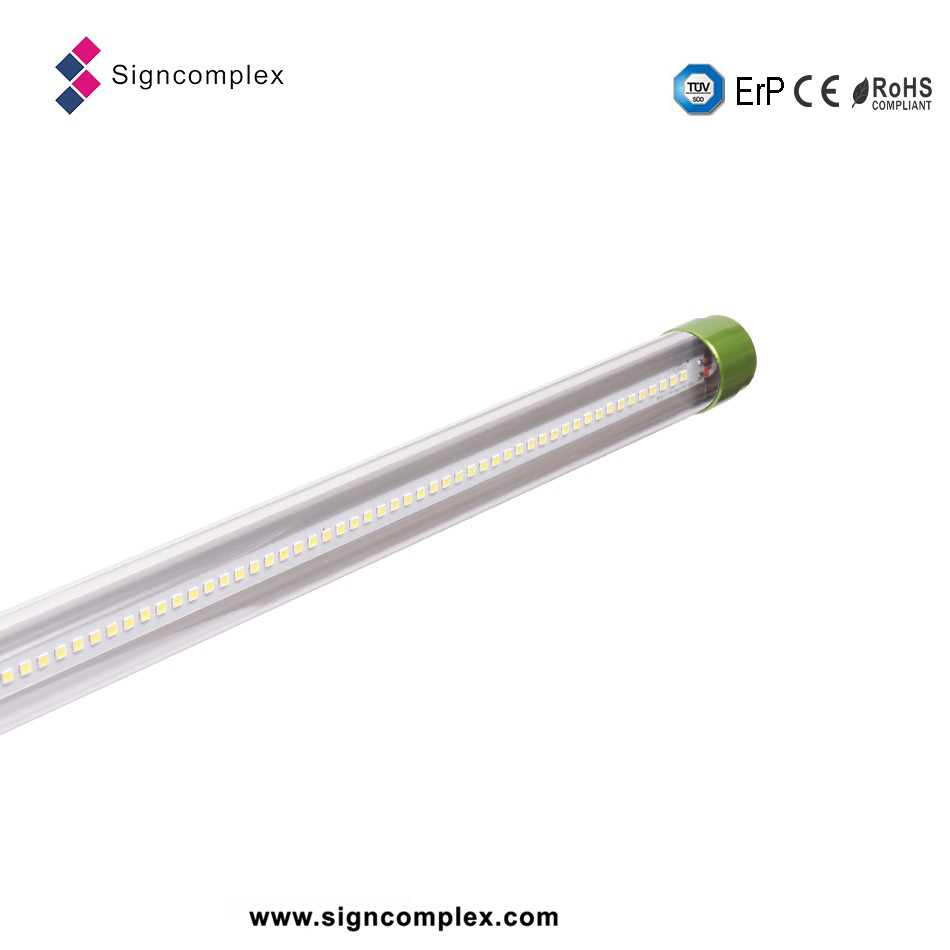

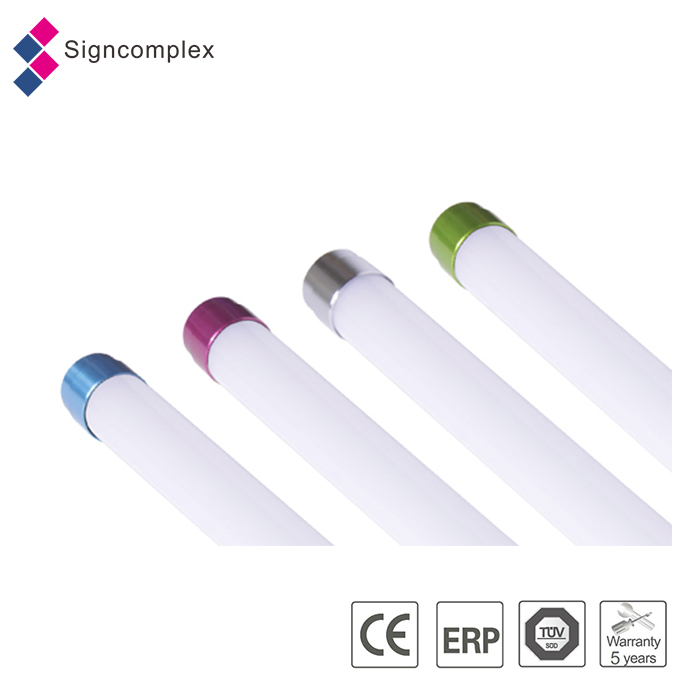

Signcomplex 5years warranty led tube t8

Description of the led tube t8

S-Tube is an upgraded version CFL tube replacement with LED. It has the best configuration of brightness and power efficiency.

S-tube is designed to replace medium bi-pin T8 and T12 fluorescent tubes. S-tube fits directly into most fluorescent fixtures providing a simple upgrade to high quality LED lighting. S-tube is optimized to provide light outputs comparable to fluorescent and delivers the immediate benefits of white-LED lighting; long lifetimes, no maintenance, high efficency, no mercury, no recycling, no flickering, no buzzing, instant start, cold temperature operation, and high quality light. It provides energy savings of up to 75% over fluorescent applications that require long hours with low occupancy rates such as stairwells, corridors, warehouses, and remote locations. The high quality S-tube replacement tube is constructed from extruded aluminum to provide a virtually unbreakable, vandal proof lighting solution.

Why our S-tube?

Much longer life than CFL tube: min. 10 years (suppose that light is on 8 hours per day)
-70%~80% Energy-saving over Fluorescent tubes
-Solid State, high shock/vibration resistant
-Work without ballast, Instant soft-start
-No RF interference, No fickering or buzzing
-Quick and easy installation to minimize retrofit costs
-Minimum maintenance costs, Produce little Heat
-No Mercury and other hazardous materials, fully RoHS-compliant
-Continuous operation for white LEDs (10 years for other colors)
-Rated to operate from -4°F to 104°F [-20°C to 40°C],perfect for
environments with extreme climates
-Epistar+Intermatix LED packaging solution, no patent trouble
-The newest design
-The best cost-effective
-Complete electricity isolation design, safety prove

Feature of the led tube t8

Standard length 60cm / 120cm / 150cm
Rated input voltage 100-240V AC, 50/60Hz,maximal input
voltage 277V AC
Power: 9W/ 18W / 22W
PF (power factor) >0.92
SMD2835 LED

Specifications

Type	Model number	LED Type	Color	Voltage	Length (cm)	Power(W)	CRI	Light output (lm±10%)	LED Q’ty	PF
Frosted	ST8-009-AW-WW-01F	SMD 2835	Warm White	AC100-240V 50/60Hz MAX.277V (DC 12/24V available)	60	9	≥80	1071	96	≥0.92
	ST8-009-AW-NW-01F		Natural white					967
	ST8-009-AW-W-01F		White					982
	ST8-018-AW-WW-01F		Warm White		120	18		2143	192
	ST8-018-AW-NW-01F		Natural white					2031
	ST8-018-AW-W-01F		White					2044
	ST8-022-AW-WW-01F		Warm White		150	22		2315	240
	ST8-022-AW-NW-01F		Natural white					2572
	ST8-022-AW-W-01F		White					2594
Clear	ST8-009-AW-WW-01C		Warm White		60	9	≥80	1219	96
	ST8-009-AW-NW-01C		Natural white					1111
	ST8-009-AW-W-01C		White					1146
	ST8-018-AW-WW-01C		Warm White		120	18		2680	192
	ST8-018-AW-NW-01C		Natural white					2534
	ST8-018-AW-W-01C		White					2514
	ST8-022-AW-WW-01C		Warm White		150	22		2859	240
	ST8-022-AW-NW-01C		Natural white					3175
	ST8-022-AW-W-01C		White					3150
