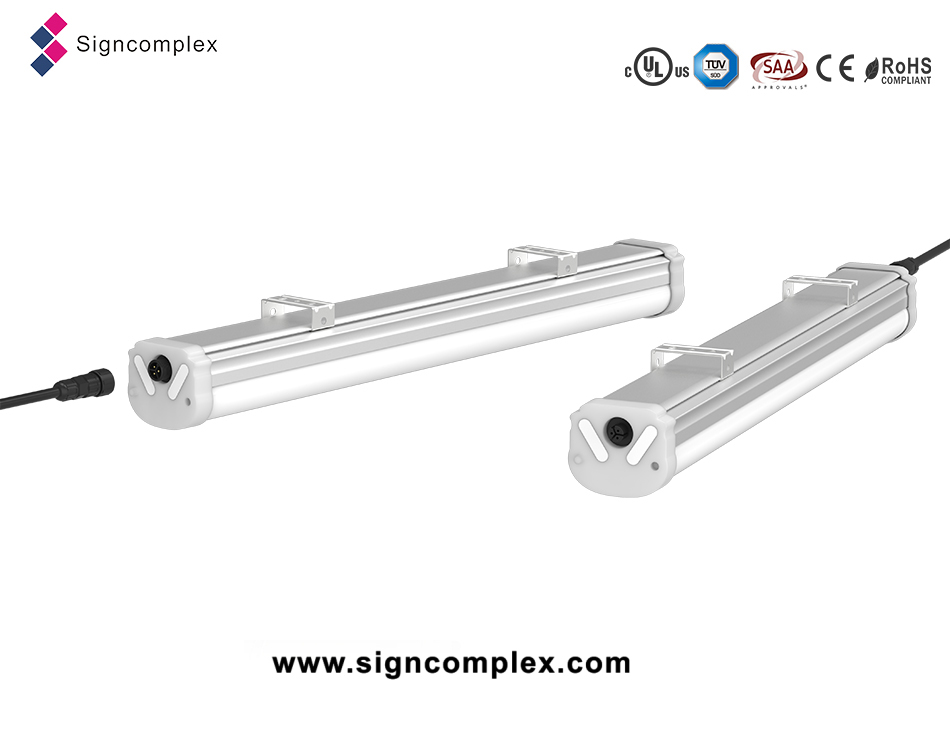

SAA Approved Energy Saving 50w Led Tri-proof Light
50W Tri-proof Light
With Built-in Power
TP-050-AW-B-04/07/08/09/10
FTN-TP-050-AW-B/B1
20w 40w 50w is available
Description:
Tri-proof light is usually used in environment which require water-proof ,dust-proof,corrosion-proof lighting,such as shopping mall,warehouse and other indoor places.The lamp features smooth surface,no dust deposition,so it can be ceiling mounted or suspending mounted.
Sensor function:
Microwave sensing apply principle of doppler effect,to detect mobile signal,such as movement of human body,vehicles can be trigger signal.Microwave signal can penetrate wooden door,glass panel,wooden wall to detect.
When lamp detect movement of object,the lamp will be full bright;if lamp hasn"t detected movement of object,the output power will degrade to 30%,and the lamp will be full bright when detect movable object again.
Compared with IR sensing,Microwave sensing features small size,so it can be built in lamp,at the same time,larger angle and farther distance of microwave sensing make it suitable for parking lot,passageway for occasions which have movement of person and object,and need energy-saving control.
Function parameters:
Sensing principle:doppler microwave
Detection distance:0-8m
Retention time:1 minutes
Detection angle:180degree
Max. power:100%
Transmitting power:<10mW
Min. power:30%
Emission frequency:5.8GHz
Working environment:-30~45degree
Features:
1.Water-proof design without adhesive,so there is no water leakage caused by adhesive aging,convenient to disassemble.
2.Anti-UV cover,it"s ideal choice for outdoor use
3.High impact resistance PC cover,IK10
4.High transmittance PC cover transmit soft light,high light efficiency,uniform light;no dark spot
5.Hight efficient heat dissipation,LEDs and power supply low temperature rise,high stability of continuous working
6.Can switch start frequently,no flicker
7.Flexible wiring joint function,such as:direct joint,bare wire joint,IP65 seamless wiring connection,etc
8.No dimming,1-10V dimming,DALI dimming,sensing control for your option
9.Compact appearance,novel design,easy to install and transport
Specifications:
| Model | CCT | Color | Lumen(lm) (±10%) | Beam angle | LED Type Quantity | Power(w) (±10%) | Voltage Frequency | CRI | PF |
| TP-050-AW-W-B-04 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| TP-050-AW-NW-B-04 | 4000-4500K | Netural white | 4370 | ||||||
| TP-050-AW-WW-B-04 | 2700-3200K | Warm white | 4270 | ||||||
| TP-050-AW-W-B-07 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| TP-050-AW-NW-B-0 | 4000-4500K | Netural white | 4370 | ||||||
| TP-050-AW-WW-B-07 | 2700-3200K | Warm white | 4270 | ||||||
| TP-050-AW-W-B-08 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| TP-050-AW-NW-B-08 | 4000-4500K | Netural white | 4370 | ||||||
| TP-050-AW-WW-B-08 | 2700-3200K | Warm white | 4270 | ||||||
| TP-050-AW-W-B-09 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| TP-050-AW-NW-B-09 | 4000-4500K | Netural white | 4370 | ||||||
| TP-050-AW-WW-B-09 | 2700-3200K | Warm white | 4270 | ||||||
| TP-050-AW-W-B-10 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| TP-050-AW-NW-B-10 | 4000-4500K | Netural white | 4370 | ||||||
| TP-050-AW-WW-B-10 | 2700-3200K | Warm white | 4270 | ||||||
| FTN-TP-050-AW-W-B | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| FTN-TP-050-AW-NW-B | 4000-4500K | Netural white | 4370 | ||||||
| FTN-TP-050-AW-WW-B | 2700-3200K | Warm white | 4270 | ||||||
| FTN-TP-050-AW-W-B1 | 5500-6500K | White | 4740 | 230° | SMD2835 384pcs | 50w | AC100-277V 50/60Hz | >80 | ≥0.9 |
| FTN-TP-050-AW-NW-B1 | 4000-4500K | Netural white | 4370 | ||||||
| FTN-TP-050-AW-WW-B1 | 2700-3200K | Warm white | 4270 |
Main Applications :
Tri-proof light of medium power can be used in warehouse, parking lot,shopping mal l,farm,food factory, cold storage, metro, underground passage and other places.
