Hot 90W/120W/150W/200W/240W/300W High Bay Light
Lighting Seried200W
GK-200-AW-L
Description of the high bay light :
LiBayTM high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.
Features of the high bay light :
1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Technical parameters of the high bay light :
| Model | Color | CCT | Lumen(lm) (±10%) | LED Type | LED Qty. | Power (±10%) | Voltage Frequency | Current | Beam angle (°) | CRI | IP | PF |
| GK-200-AW-W-L-01 | white | 5500-6500K | 19370 | CREE | 150pcs | 200w | AC100-277V 50/60Hz | 2.3A | 70°*120° | >70 | 65 | >0.9 |
| GK-200-AW-NW-L-01 | netural white | 4000-4500K | 18870 | |||||||||
| GK-200-AW-WW-L-01 | warm white | 2700-3200K | 17330 | |||||||||
| GK-200-AW-W-L-02 | white | 5500-6500K | 19370 | CREE | 150pcs | 200w | AC100-277V 50/60Hz | 2.3A | 70°*120° | >70 | 65 | >0.9 |
| GK-200-AW-NW-L-02 | netural white | 4000-4500K | 18870 | |||||||||
| GK-200-AW-WW-L-02 | warm white | 2700-3200K | 17330 | |||||||||
| GK-200-AW-W-L-04 | white | 5500-6500K | 24770 | SEOUL | 150pcs | 200w | AC100-277V 50/60Hz | 2.3A | 70°*120° | >70 | 65 | >0.9 |
| GK-200-AW-NW-L-04 | netural white | 4000-4500K | 25080 | |||||||||
| GK-200-AW-WW-L-04 | warm white | 2700-3200K | 24110 | |||||||||
| GK-200-AW-W-L-05 | white | 5500-6500K | 24770 | SEOUL | 150pcs | 200w | AC100-277V 50/60Hz | 2.3A | 70°*120° | >70 | 65 | >0.9 |
| GK-200-AW-NW-L-05 | netural white | 4000-4500K | 25080 | |||||||||
| GK-200-AW-WW-L-05 | warm white | 2700-3200K | 24110 |

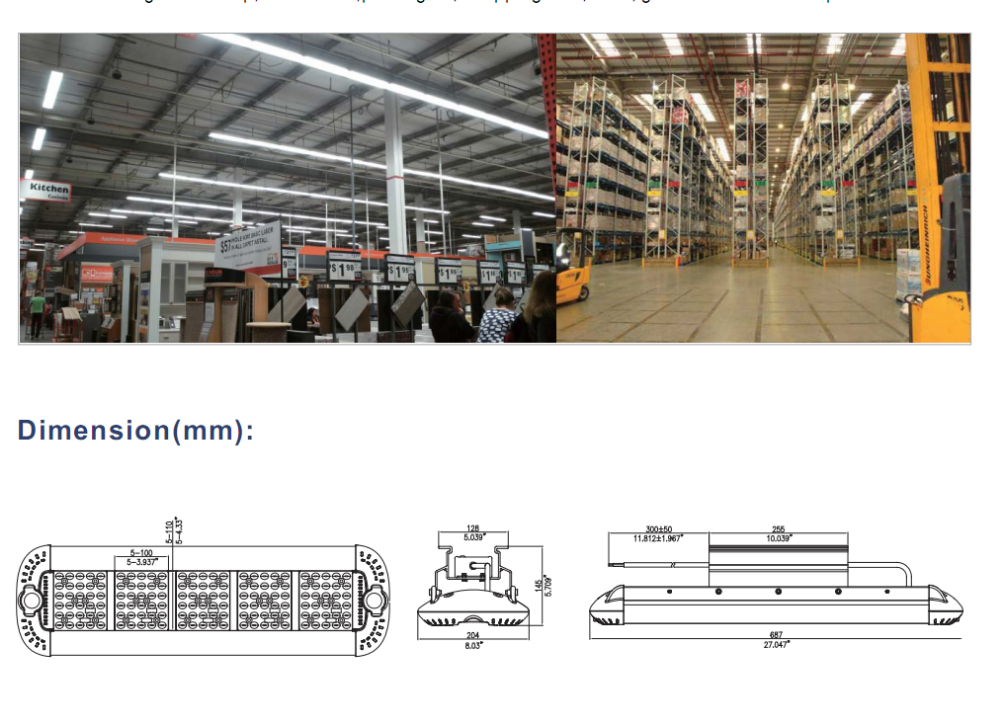

Application:
Suitable for large workshop, warehouse,
parking lot, shopping mall, farm, gas station
and other places.
Installation information:
Package Information:
Net Weight:7.0KG
Gross Weight(include ceiling installation plate):8.8KG
Outer carton dimension: 780*280*190mm (1pcs/carton)
Production of flowsheet:
Welcome to inquire the high bay light!
Please email for details!
