Home > Products > 3years warranty 3528/5050 led flexible strips

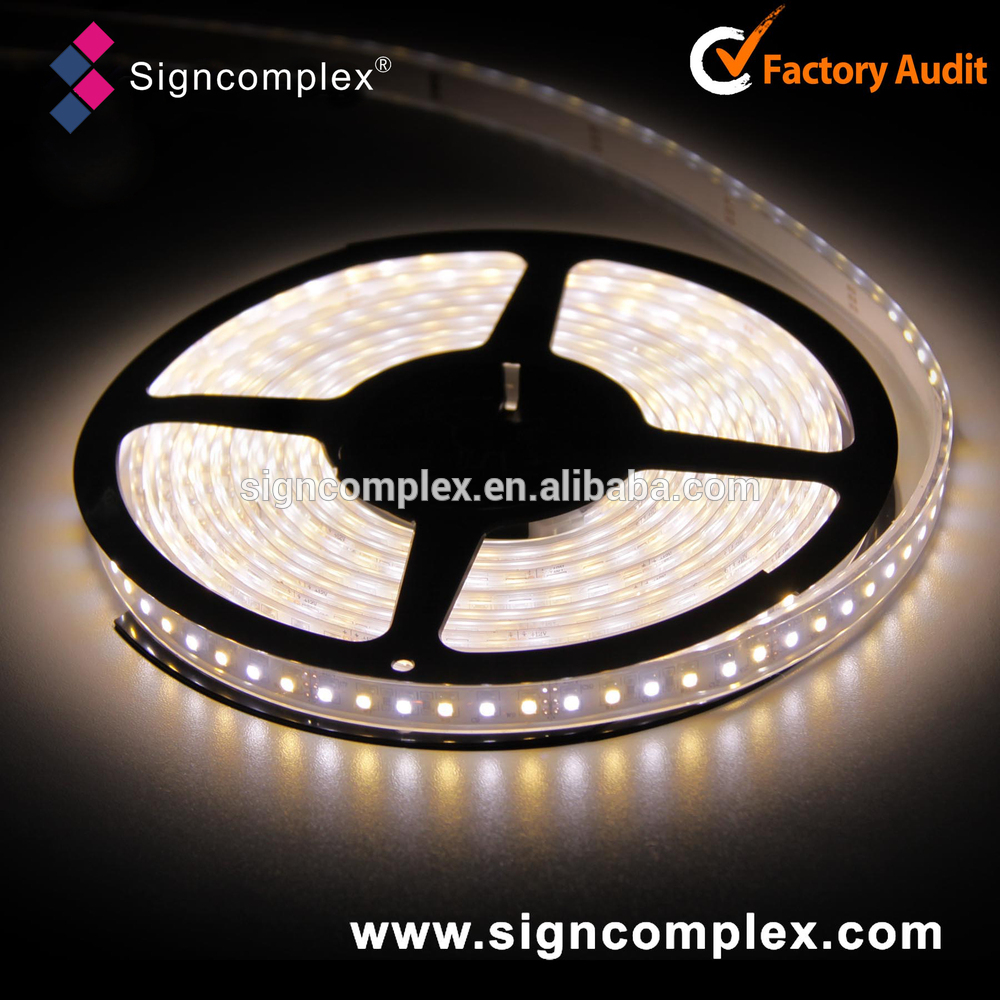

3years warranty 3528/5050 led flexible strips
Click on the image to view the original image
Product： views：23years warranty 3528/5050 led flexible strips
Branch： SignComplex
Type： Flex LED Strips
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
12/24V DC
Lamp Power:
24
Lamp Luminous Flux(lm):
320
CRI (Ra>):
75
Working Temperature(℃):
-20 - +40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
SignComplex
Model Number:
SC-IB
Light Source:
LED
LED Quantity:
300/600
Max.Power Consumption:
4.8/9.6W/m
IP:
20
Continuous Connection:
10/5M
Length:
5M
Item Type:
Light Strips
Color Temperature(CCT):
5500-7000k/4000-4500k/2700-3200k
LED Light Source:
3528/5050 SMD LED
Emitting Color:
Natural White/White/Warm White/ Red/ Green/Blue/Yellow
Supply Ability
Supply Ability:
1000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
5 meters/reel as an unit wrapped around a disk, each disk is packed by anti-static bag.
Port
shenzhen and Hongkong
Lead Time:
5-10 working days after we confirm payment

3528/5050 led flexible strips :

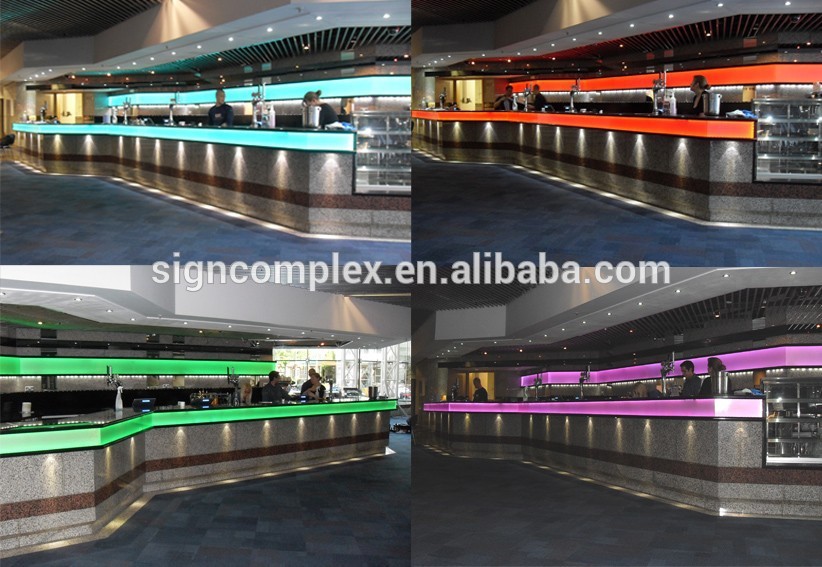

Application
-Cove lighting
-Architectural lights for canopy,corridor,windoe,
-archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday,event,show,exhibition



Great advantages
-Eco friendly
-Long life span,standard warranty 3 years
-Complete cut / connection accessories
-No need of constant-current power feed
-Low power consumption
-Custom packing

Technical parameters

Model NumberColorLight Outpu
(lumen/m)		LED
Q’ty		LED TypeLength
(m)		Beam Angle
(degrees)		Voltage
(V DC)		Current
(Amps/m)		Max.Power
Consumption
(W/m)		IPContinuous
Connection
(m)
SC-IB-NWNatural White3203003528 SMD
   LED		5120°12/240.4/0.24.82010
SC-IB-WWhite390300
SC-IB-WWWarm White330300
SC-IB-RRed85300
SC-IB-GGreen200300
SC-IB-BBlue82300
SC-IB-YYellow92300
SC-IB-NW2Natural White6406000.8/0.49.6
SC-IB-W2White7806005
SC-IB-WW2Warm White660600
SC-IB-R2Red170600
SC-IB-G2Green400600
SC-IB-B2Blue164600
SC-IB-Y2Yellow184600
SC-IB-RGBRGB2331505050 SMD
   LED		0.6/0.37.210
SC-IB-RGB2RGB4663001.2/0.614.45
