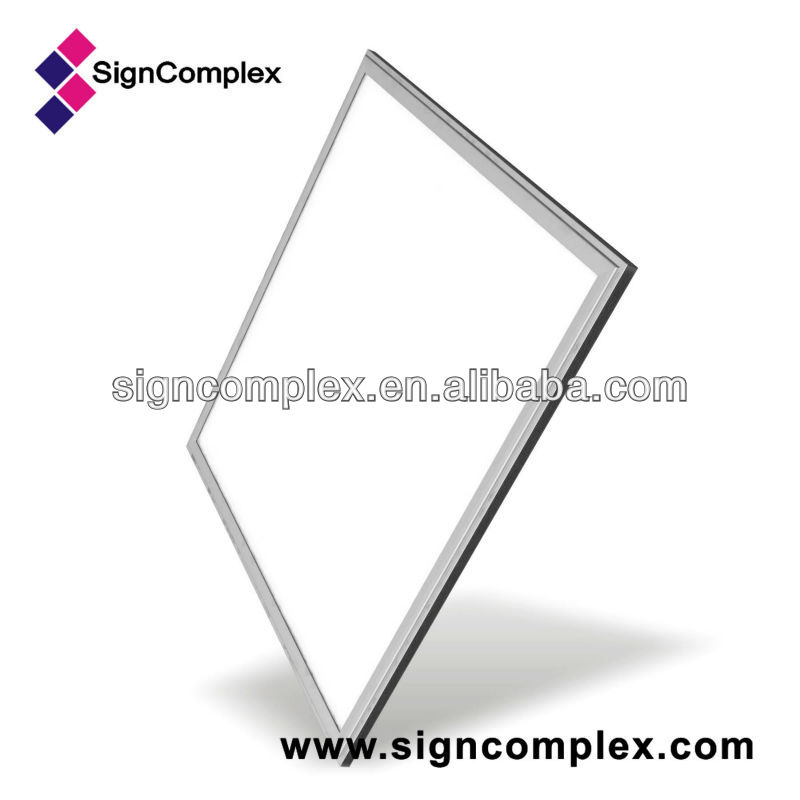

LED panel lights 600x600mm 60x60 cm 36w 45w 60w

Click on the image to view the original image

Product：	views：2LED panel lights 600x600mm 60x60 cm 36w 45w 60w
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:43

Product Details

Overview

Quick Details

Input Voltage(V):: 12/24

Lamp Luminous Flux(lm):: 3000

CRI (Ra>):: 85

Working Temperature(℃):: 20 - 45

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP44

Certification:: CE, EMC, FCC, LVD, PSE, SAA, UL

Place of Origin:: China

Brand Name:: Signcomplex

Light Source:: LED

Beam Angle:: 120

Size:: 600*600/595*595mm

LED chip:: SMD3528

Quantity:: 600pcs

Weight:: 6.5kg

Installation:: Embeded/Ceiling/Hanging

Cover Material:: PMMA

Color Temperature(CCT):: 5500-7000K/4000-4500K/2700-3200K, WW/NW/CW/RGB...

Dimmable Optional:: Manual / IR dimmer / RF dimmer

Shape:: Square

Item Type:: Panel Lights

LED Light Source:: Epistar

Warranty(Years):: 3

Lamp Luminous Efficiency(lm/w):: 100

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton
Customize also be ok

Port: shenzhen

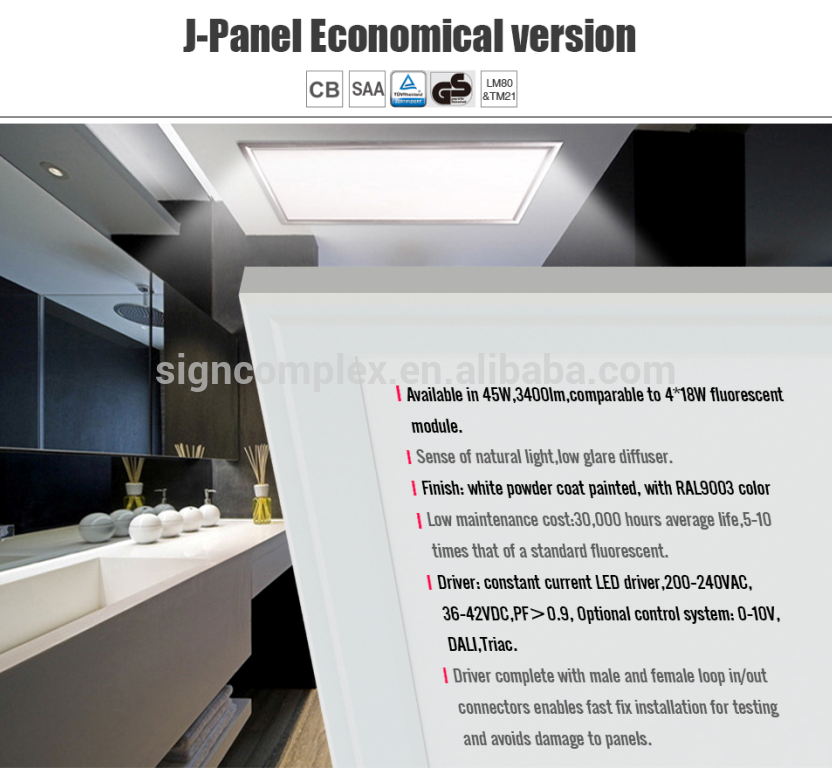

Best Selling color temperature and brightness dimmable LED Light Panel,3 years warranty CE RoHS

Square color changing 600*600mm led light panel

Features of the Products

-All sides are lined with LED"s to grant optimal illumination.
-High light output at a reduced energy consumption of up to 50%.
-Over 40"000 hours life expectancy.
-Wide angle of deflection with even light distribution.
-No start-up time, no flickering, no humming.
-High efficiency (95%) constant current driver with built in overheat
-protection that remains stable at a wide range of input voltages.
-Independent LED circuit prevents complete blackout in case an LED fails.
-Environmentally friendly, mercury and lead free.
-Causes no electromagnetic interference.

Specifications

Model	Color	LED Type	CCT	Power	CRI	Light Output	Voltage	Beam angle	Weight
SC-PSD24DE6060	Cool White	SMD 3528	5794K	0-59W	72	0-2283lm	24VDC	120°	6.1kg
	Cool White& Warm White	SMD 3528	4116K	0-59W	72	0-4391lm	24VDC	120°	6.1kg
	Warm White	SMD 3528	3045K	0-59W	68	0-2122lm	24VDC	120°	6.1kg
