Home > Products > Signcomplex RGB LED Strip WiFi Controller, For iPhone, iPad and Android System

Signcomplex RGB LED Strip WiFi Controller, For iPhone, iPad and Android System

Click on the image to view the original image

Product：	views：2Signcomplex RGB LED Strip WiFi Controller, For iPhone, iPad and Android System
Branch：	Signcomplex
Type：	Flex LED Strips
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:43

Product Details

Overview

Quick Details

Type:: Flex LED Strips

Input Voltage(V):: 12V/24V

Lamp Power:: 96W

Lamp Luminous Flux(lm):: 1217

CRI (Ra>):: 80

Working Temperature(℃):: 20 - 40

Working Lifetime(Hour):: 30000

Lamp Body Material:: PVC

Certification:: CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-BID

Light Source:: LED

LED Light Source:: SMD3020, Epistar

PCB width:: 10mm

Certificates:: CE&Rohs&EMC&LVD

Packing:: 5M/reel + accessories

Beam Angle:: 120Degree

LED Quantity:: 600PCS

IP Rating:: IP20 IP65 IP68

Power:: 19.2W/M

length:: customised length is available

Color bin:: We can keep your color bin to confirm the color is the same

Item Type:: Light Strips

Color Temperature(CCT):: CW

Emitting Color:: W/NW/WW

Supply Ability

Supply Ability:: 100000 Roll/Rolls per Month

Packaging & Delivery

Packaging Details: 5 meters/reel as an unit wrapped around a disk, each disk is packed by anti-static bag.

Port: Shenzhen

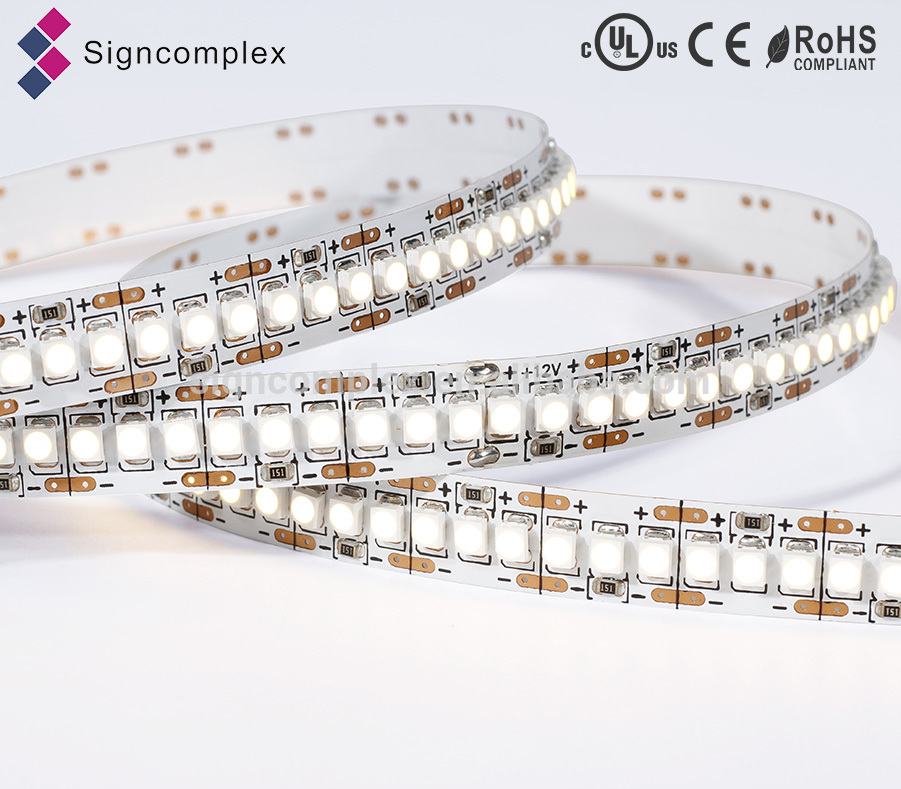

High quality flexible led strip

Flexmond3020 high brightness ,It is the brightest flexible LED strip available in the market

Application

-Cove lighting
-Architectural lights for canopy,corridor,window,archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday,event,show,exhibition

Printed circuit board layout

Technical parameters

Signcomplex is an expert led striplight manufacturer for 7 years,we are dedicated in offering high level led striplight.

Thanks to the consistent high quality,3 years warranty and good after sale service.

Signcomplex has become one of the leading enterprise in led striplight field.

Available models:

3528 60leds/m ,120leds/m,240leds/m.

5050 30leds/m. 60leds/m.

Super bright 3020 120leds/m.

Super bright 3014 60leds/m,120leds/m,204leds/m.

WW+W CCT dimmable models.

RGB+W changeable models.

Digital striplight models.

					Power Consumption
Model Number	LED Type	LED Quantity	Lumen Output	Voltage	Power Consumption
	SMD	LEDS/m	LM/M	V	W/M
SC-XID1-W	3528	240	1560	24	19.2
SC-XID1-NW	3528	240	1400
SC-XID1-WW	3528	240	1240
SC-XID1-R	3528	240	720
SC-XID1-Y	3528	240	720
SC-XID1-B	3528	240	360
SC-XID1-G	3528	240	1200
SC-XID2-W	3528	240	1560	12	19.2
SC-XID2-NW	3528	240	1400
SC-XID2-WW	3528	240	1240
SC-XID2-R	3528	240	720
SC-XID2-Y	3528	240	720
SC-XID2-B	3528	240	360
SC-XID2-G	3528	240	1200

		LED Quantity			Power Consumption
Model Number	LED Type	LED Quantity	Lumen Output	Voltage	Power Consumption
	SMD	LEDS/m	LM/M	V	W/M
SC-DID-W	3528	54	430	12	4.8
SC-DID-WW	3528	54	400	12	4.8
SC-DID-R	3528	54	150	12	4.8
SC-DID-Y	3528	54	170	12	4.8
SC-DID-B	3528	54	45	12	4.8
SC-DID-G	3528	54	220	12	4.8
SC-DID-RGB2	5050	30	250	12	7.2
SC-WC4	single color DigiRibbon, DC12-24V
LC-0RGB-WIFI-01	WIFI RGB Controller for DigiRibbon, DC5-24V; 100W, available with IOS and Android systems
