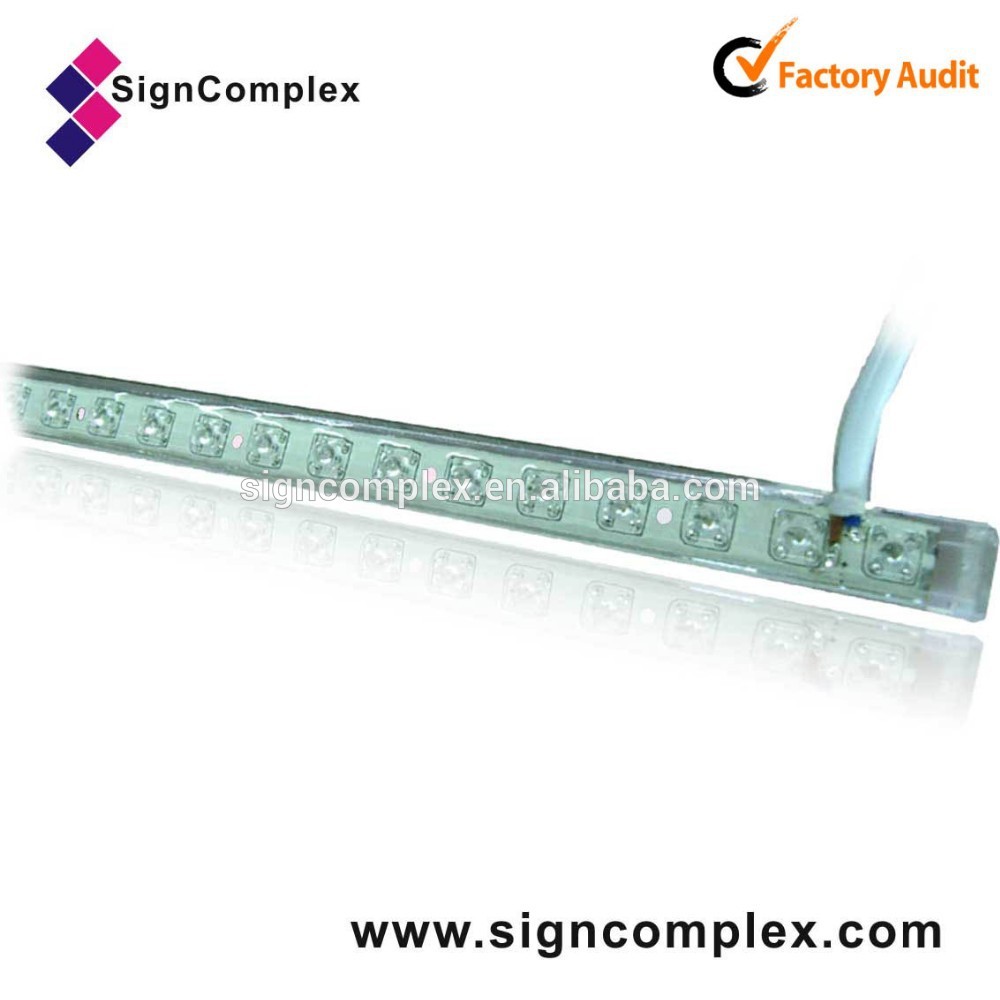

High quality flexible led strip
Flexmond3020 high brightness ,It is the brightest flexible LED strip available in the market
Application
-Cove lighting
-Architectural lights for canopy,corridor,window,archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday,event,show,exhibition
Printed circuit board layout
Technical parameters
| Model Number | Color | Light Outpu (lumen/m) | LED Q’ty | LED Type | Length (m) | Beam Angle (degrees) | Voltage (V DC) | Current (Amps/m) | Max.Power Consumption (W/m) | IP | Continuous Connection (m) |
| SC-BID-W | White | 1217 | 600 | 3020 SMD LED | 5 | 120° | 12 | 1.6 | 19.2 | 20 | 5 |
| SC-BID-WW | Warm White | 850 | |||||||||
| SC-BID-NW | Natural White | 1085 | |||||||||
| SC-BID-W-24V | White | 1217 | 24 | 0.8 | |||||||
| SC-BID-WW-24V | Warm White | 850 | |||||||||
| SC-BID-NW-24V | Natural White | 1085 |
Certificates
Company Image
Company Showroom
Machinery equipment
Warehouse & Production line
Assembly Information
- Solder connection should only be performed on designated solder pads(marked +/-).During soldering,don’t exceed the
maximum soldering time of 10 seconds and the maximum soldering temperature of 260 Celsius degrees.
- Solder connection should only be performed on designated solder pads(marked +/-).During soldering,don’t exceed the
maximum soldering time of 10 seconds and the maximum soldering temperature of 260 Celsius degrees.
- The smallest unit(25mm/1 -3 LEDs) can be removed by cutting with scissors between the designated solder pads.
- The mounting of the strip is facilitaed by means of the double-sided adhesive on the back-surface of the strip.Care must be
taken to provide a clean and dry mounting surface,free of oils or silicone coatings as well as dirt partide.The mounting substrate
must have sufficient structural integrity.Take care to completely remove the adhesive backing.Once the strip is appropriately
positioned.Press on the strip with about 20N/cm2(refer to application techniques of 3M adhesive transfer tapes).
- The minimum bending radius is 2 cm. The strip may be bent over a smaller radius of the circuit board containing no electronic
components and such bends should be made once and fixed in position to avoid cyclic fatigue.
