Home > Products > Super Brightness 3020 Led Strip Lights 12v Led Flexible Strip

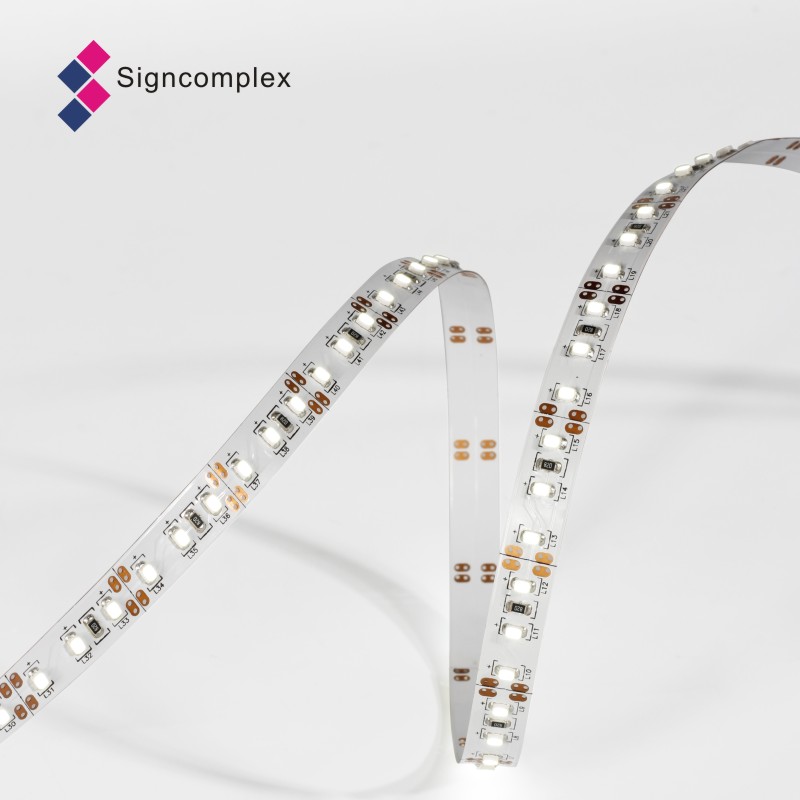

Super Brightness 3020 Led Strip Lights 12v Led Flexible Strip
Click on the image to view the original image
Product： views：3Super Brightness 3020 Led Strip Lights 12v Led Flexible Strip
Branch： Signcomplex
Type： Flex LED Strips
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
19.2W/M
Lamp Luminous Flux(lm):
850 lumen/m
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
500000
Lamp Body Material:
PC
Certification:
CE, RoHS, SAA, UL
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-BID-WW
Application:
Residential
Light Source:
LED
Emitting Color:
Warm White
LED Light Source:
3020 SDM LED
Beam Angle:
120
Current (Amps/m):
1.6A
LED Q'ty:
600
Standard length:
5m
IP Rating:
IP20
Continuous Connection (m):
5
Item Type:
Light Strips
Supply Ability
Supply Ability:
1000000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details
5 meters/reel as an unit wrapped around a disk, each disk is packed by anti-static bag
Port
Shenzhen and Hongkong
Lead Time:
Quantity(Rolls)1 - 10001001 - 2000 >2000
Est. Time(days)510To be negotiated

Super Brightness 3020 Led Strip Lights 12v Led Flexible Strip



Applications of the led flexible strip
-  Cove lighting
-  Architectural lights for canopy,corridor,window,archway
-  Back light or edge lighting for signage
-  DIY lights for home use
-  Path and contour marking
-  Decorative lights for holiday,event,show,exhibition



Technical parameters of the led flexible strip

Model Number

Length

 (m)

LED Q’ty

LED

Type

Light

Output

(lumen/m)

Beam Angle

 (degrees)

Voltage

(V DC)

Current

(Amps/m)

Max.Power

 Consumption(w/m)

CRI

Continuous

connection

 (m)

SC-BID-W

5

600

3020 SMD LED

1220

120

12

1.6

19.2

>80

5

SC-BID-NW

5

600

1090

120

SC-BID-WW

5

600

850

120

SC-BID-W-24V

5

600

1220

120

24

0.8

SC-BID-NW-24V

5

600

1090

120

SC-BID-WW-24V

5

600

850

120





QC Flow sheet:
