Home > Products > Shenzhen manufacturer 45W super slim diy led light panel

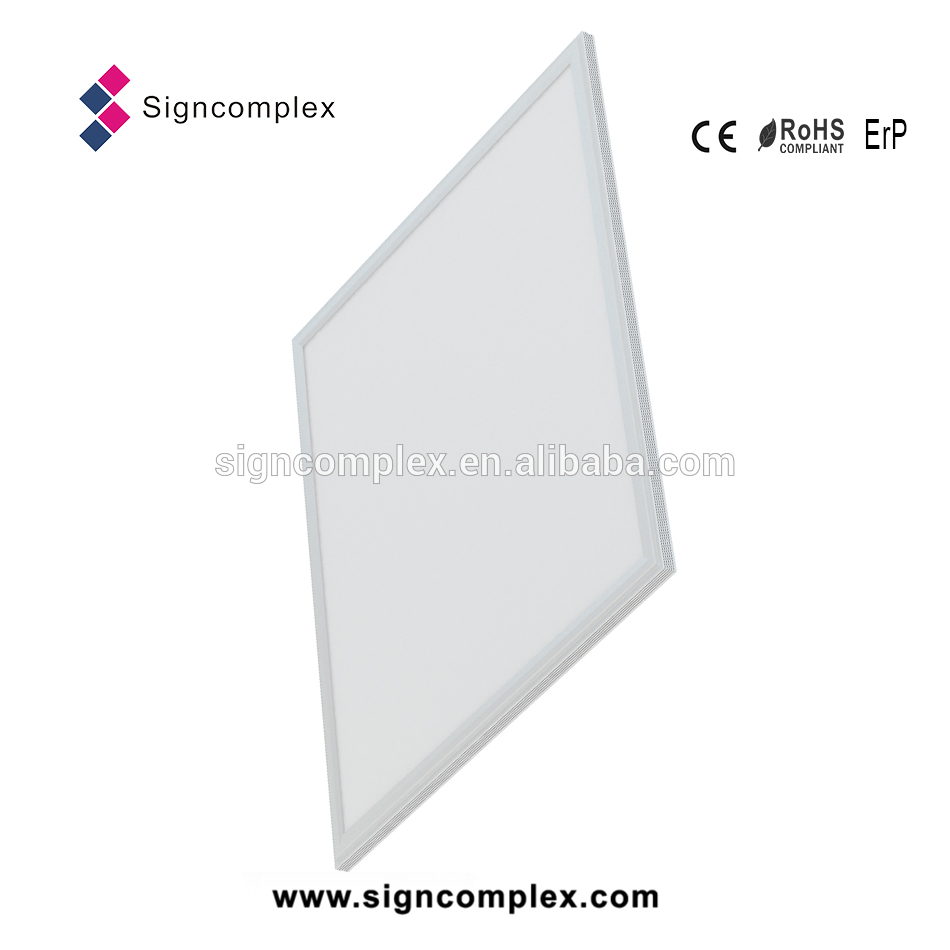

Shenzhen manufacturer 45W super slim diy led light panel
Click on the image to view the original image
Product: views:2Shenzhen manufacturer 45W super slim diy led light panel
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:43
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
DC36-42V
Lamp Luminous Flux(lm):
3180
CRI (Ra>):
80
Working Temperature(℃):
20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP33
Certification:
CE, EMC, LVD, RoHS, SAA
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-PSC24CE6060-C45W
Light Source:
LED
Dimmable:
Avaliable
Shape:
Square
Dimension:
600*600*9mm
LED Quantity:
288
Aluminum Heat sink Temperature:
70°
Beam Angle:
110 °
Equilibrium Temperature:
58°
Color Temperature:
5000-7000K,2700-3500K,4000-5000K
Key words:
super slim diy led light panel
Product name:
Shenzhen manufacturer45W super slim diy led light panel
Item Type:
Panel Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Epistar 4014
Warranty(Years):
3
Lamp Power(W):
45
Lamp Luminous Efficiency(lm/w):
80
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month sample is avaliable for super slim diy led light panel
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hong Kong
Lead Time:
5-10 working days after we confirm payment



Shenzhen Manufacturer  45W Super Slim Diy Led Light Panel



Features of the led panel light


Size

600x600x9mm

Power

45W

Voltage(In-put)

DC42V

Led Type

Epistar 4014

Lumen

2598

Material

Aluminum +PMMA

Power Supply

External

Color Temperature

Warm white, Pure white,Cool white

Beam Angle

110 degree

Warranty

3 years for commercial use, 5years for home use

CRI

>80

PF

>0.9

Certificates

CE, RoHS,SAA

Led emitting

Led side emitting

Working Life

50,000Hours

Working Temp

 -20-50 °C





Advantage of the led panel light

-All sides are lined with LED"s to grant optimal illumination.

-High light output at a reduced energy consumption of up to 50%.
-Over 50"000 hours life expectancy.
-Wide angle of deflection with even light distribution.
-No start-up time, no flickering, no humming.
-High efficiency (95%) constant current driver with built in overheat
-protection that remains stable at a wide range of input voltages.
-Independent LED circuit prevents complete blackout in case an LED fails.
-Environmentally friendly, mercury and lead free.
-Causes no electromagnetic interference.



Dimensions(Unit:mm/inch)





Absolute Maximum Rating of the led panel light





Electrical Connection of the led panel light

Installation Instructions of the led panel light



Packing Specification(mm)

Applications of led panel light

*Hotels

*Conference / Meeting rooms

*Factories & Offices

*Commercial Purposes.

*Residential / Institution Buildings

*Schools, Colleges & Universities

*Hospitals

*Places where energy saving and high color rendering index lighting are needed





Main products
Certifications



Company Image











Sales Team



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- panel lights
- linear light
- high bay
- corn bulb

- tube

-LED controller

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?





We have no MOQ to new clients,please leave an inquiry to know more details about Price,Packing,Shipping and Discount.



Company Website:www.signcomplex.com .Explore for more product information



Please email for details!
