Home > Products > 3528 SMD LED Backlight LED Lights Decorative Lighting RGB LED Strip

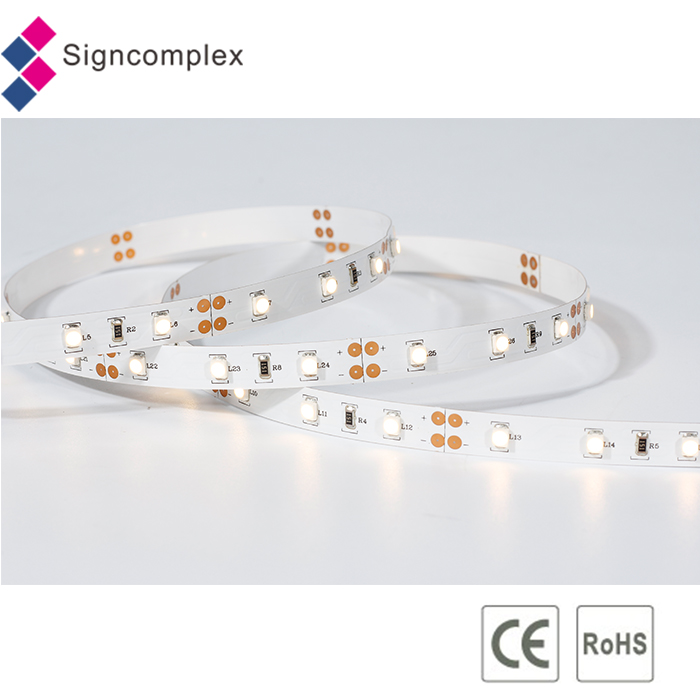

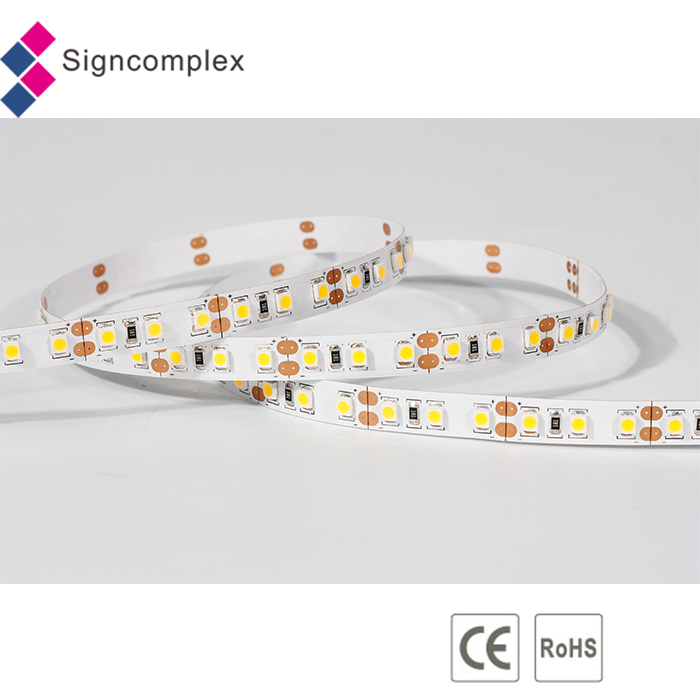

3528 SMD LED Backlight LED Lights Decorative Lighting RGB LED Strip
Click on the image to view the original image
Product: views:23528 SMD LED Backlight LED Lights Decorative Lighting RGB LED Strip
Branch: Signcomplex
Type: Flex LED Strips
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12
Lamp Power:
9.6
Lamp Luminous Flux(lm):
90
CRI (Ra>):
80
Working Temperature(℃):
20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PVC
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-IB-NW
Application:
LANDSCAPE
Light Source:
LED
LED Light Source:
Epistar
Length:
5 meter a roll
LED Quantity:
120 leds per meter
IP Rating:
20
Color:
W,WW,NW,R,G,B,RGB
Waterproof:
Avaliable
LED Chip:
Original Epistar SMD3528
Warranty:
1 years
Beam angle:
120°
Key words:
led strip
Item Type:
Light Strips
Supply Ability
Supply Ability:
80000 Roll/Rolls per Month we have in stock for led strip furniture
Packaging & Delivery
Packaging Details
Reel and antistatic bag
Port
Shenzhen and Hongkong

3528 SMD LED Backlight LED Lights Decorative Lighting RGB LED Strip

Great advantage

-eseco friendly
-long life span standard warranty 3 years
-complete cut / connection accessories
-no need of constant-current power feed
-low power consumption
-custom packing
-white and warm white interlaced arrangement
-CCT can be adjusted, wider CCT range
-can display several changing patterns with a controller and remote

Applications

-Cove lighting
-Architectural lights for canopy, corridor, window, archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday, event, show, exhibition

Technical parameters

Signcomplex Limited

SMD Type

3528

Model

SC-IB-NW, SC-IB-W SC-IB-WW, SC-IB-R, SC-IB-G, SC-IB-B, SC-IB-Y, SC-IB-NW2, SC-IB-W2, SC-IB-WW2, SC-IB-R2, SC-IB-G2, SC-IB-B2, SC-IB-Y2, SC-IB-RGB, SC-IB-RGB2

Color

Natural White, White, Warm White, Red, Green Blue, Yellow, RGB

Length (m)

5

LED Qty

300, 600

Lumens/M

330, 390, 320, 90, 200, 80, 640, 640, 660, 170, 400, 160, 180

Beam Angle (degrees)

120

Voltage (V DC)

12/24

Current (Amps/m)

0.4/0.2, 0.8/0.4

Max. Power Consumption (W/m)

4.8, 9.6

IP Grade

20

Continuous Connection (m)

10, 5

Customized Service available

Dimensions   (Unit: mm)

Linking operation

Installation   Drawing





Contact us

Request pirce? a sample? or custom order?

Contact us now for more discount!



Company Information



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- Panel light
- Linear light

- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb

- LED tube

- Emergency light  (Exit Sign / Emergency Downlight / Camping Light)

- LED Controller



2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.



3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.



4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.



5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.



6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.



7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.



8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.



9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
