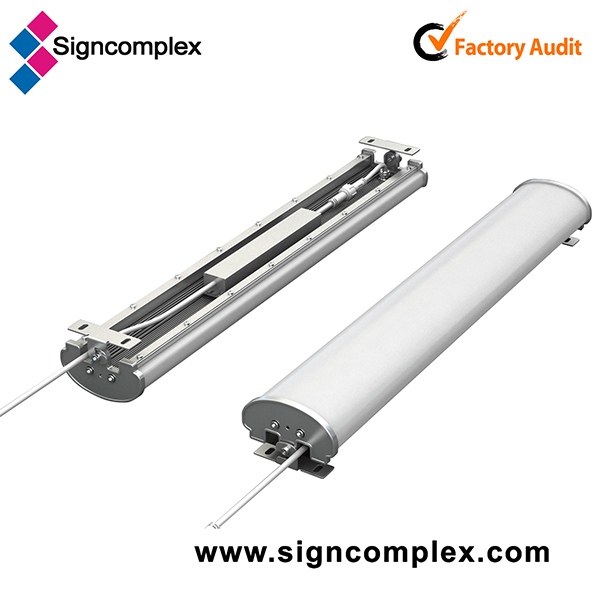

High Brightness 2835 SMD IP65 Led Tri-proof Light
Features:
This product use durable long life span LED as light source, smooth light without glare, simple looking design.Corrosion-proof, water-proof and dust-proof, IP rating is up to IP65, can be used in different environment. Use aluminum alloy and PC as the material which ensure that it can work stably in different environment.
Specification:
| Model Number | Color | LED Type | Light Output (lumen) | Beam Angle (degrees) | CCT | Max.Current (Amps) | Dimensions (diameterx widthx height) mm | Power (W) | Voltage |
| FTN-TP-30-W-01 | White | SD 2835 LED | 2750 | 230 | 5500-7000K | 0.55 | 603x106 | 30 | AC 100-277V 50-60Hz |
| FTN-TP-30-NW-01 | Natural white | 2750 | 230 | 4000K-4500K | 0.55 | 603x106 | 30 | ||
| FTN-TP-30-WW-01 | warm white | 2680 | 230 | 2700-3200K | 0.55 | 603x106 |
Dimension:
Application:
Widely used for outdoor hal lway, factory, basement, warehouse, parking lot...
Install instruction:
1.First set up accessories and fittings of the l ight.
2.Cut off the power before instal lation.
3.Make sure the product is fixed tightly to the instal lation surface(instal l it according
to diagram as below).
4.Connect the wire of the l ight to the power supply, then switch on the power.
Cautions:
1.This product must be intalled by professionals.
2.If there is any damage on the power line or the shell of the product, it should be taken as defective product and do not use it.
3.Dangerous high voltage, non-professionals are not allowed to maintain the product.
