Home > Products > 22W 1500mm T8 LED Tube Light 5 Years Warranty

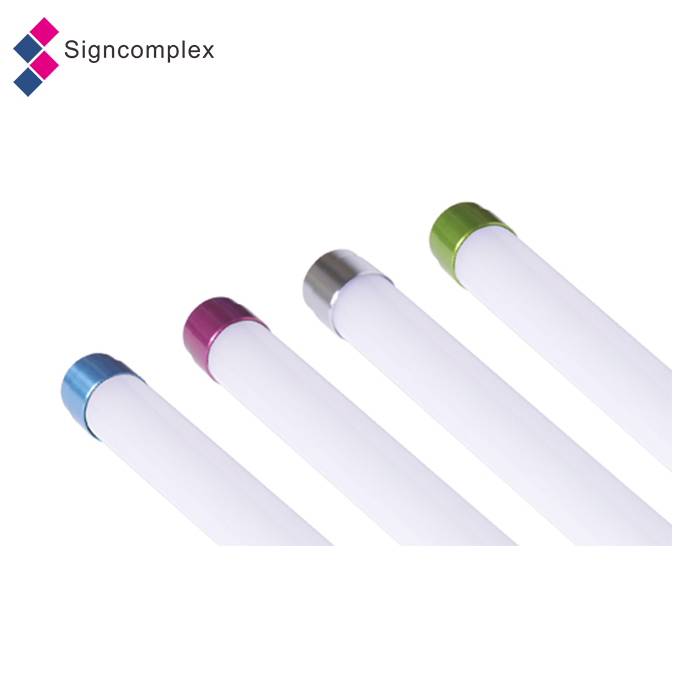

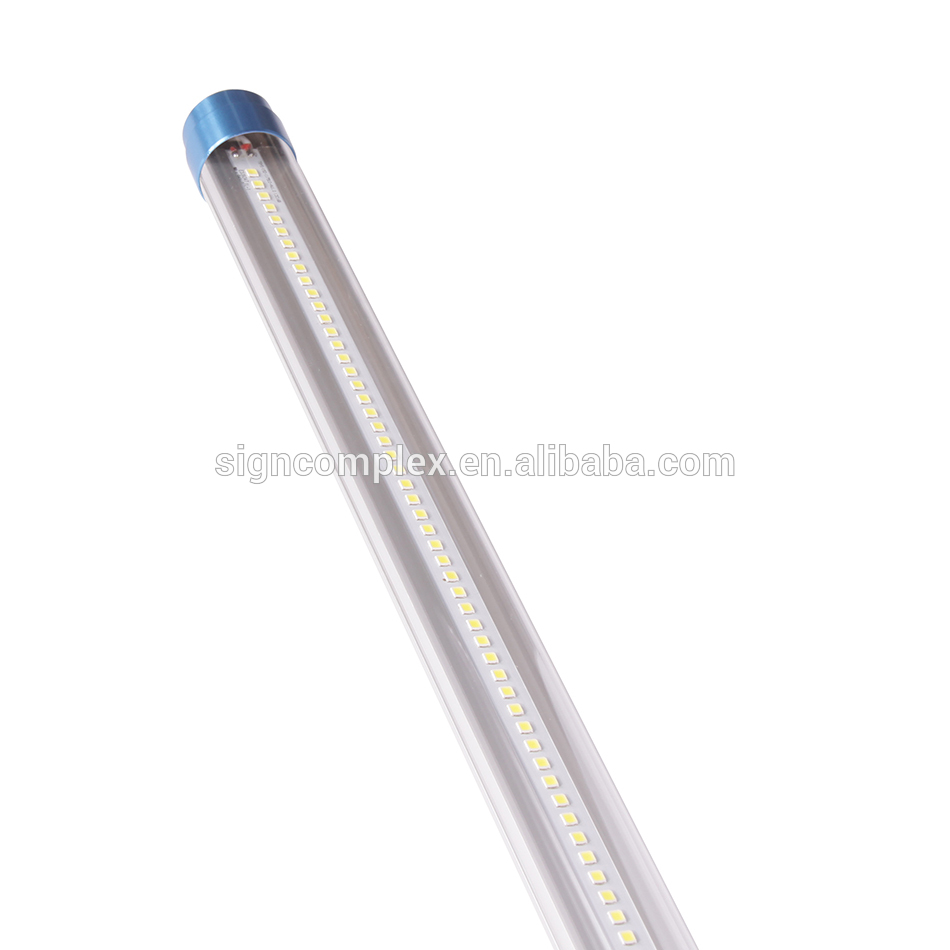

22W 1500mm T8 LED Tube Light 5 Years Warranty
Click on the image to view the original image
Product： views：322W 1500mm T8 LED Tube Light 5 Years Warranty
Branch： Signcomplex 1500mm T8 LED Tube
Type： 1500mm T8 LED Tube
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
100~240
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex 1500mm T8 LED Tube
Model Number:
T8
Light Source:
LED
Lamp Luminous Flux(lm):
2594
LED Light Source:
SMD2835
Color Temperature(CCT):
White/warm white/cool white
Power:
22W
Voltage:
AC100~277V
Driver:
Isolated,safe
Luminous flux:
2594LM
CRI:
>80
Cover:
clear/frosted
Type:
1500mm T8 LED Tube
Item Type:
Tube Lights
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month 1500mm T8 LED Tube
Packaging & Delivery
Packaging Details
1500mm T8 LED TubePACKING
Common industrial packaging,Inner box and carton
Port
SHENZHEN

22W 1500mm T8 LED Tube Light 5 Years Warranty



The main advantages for 1500mm T8 LED Tube
Single Isolated driver,safty.
Heat sink with Pure Aluminum 6063, excellent heat disspation
100% in house 1000V high voltage test .
Alternative color temperature range 2700K~6500K
CRI ≥ 80.(soft and comfortable light.no dazzling)
High luminous effiency:130lm/W
PF>0.95
5 years warranty.

The specification for 1500mm T8 LED Tube
Watt:22W ( 22W 1500mm T8 LED Tube )
length:1500mm
Voltage:AC 100-277V
LED Type:SMD 2835
Luminous flux: 2594 lm
CRI>80
PF>0.95
Color:Pure white/warm white/cool white
Cover:Clear/Frosted
Certification CE ROHS FCC TUV certified



Dimensions (Unit: mm/inch) for 1500mm T8 LED Tube

Installation  Drawing for 1500mm T8 LED Tube







Trade Show Pictures

Company Showroom

Warehouse & Production line

Company Image
