Home > Products > Original Epistar 45mil LED Chip 70W LED Floodlight for Outdoor Lighting

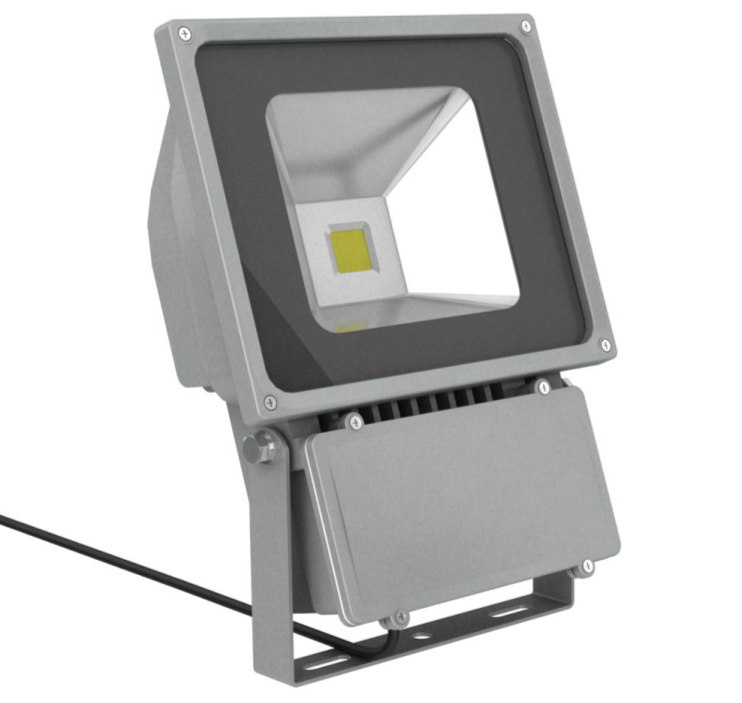

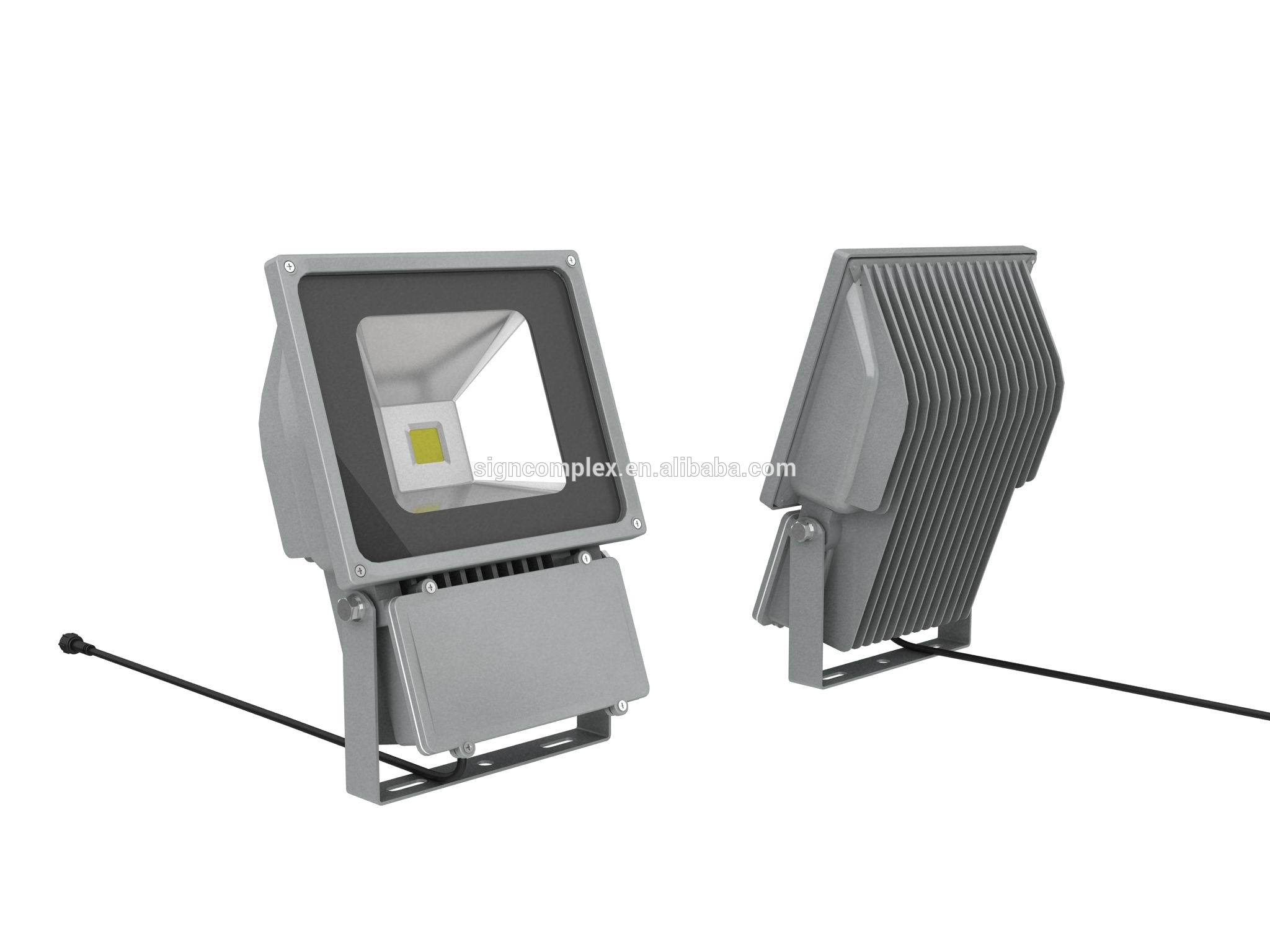

Original Epistar 45mil LED Chip 70W LED Floodlight for Outdoor Lighting
Click on the image to view the original image
Product： views：2Original Epistar 45mil LED Chip 70W LED Floodlight for Outdoor Lighting
Branch： Signcomplex 70W LED Floodlight
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-240V
CRI (Ra>):
70
Beam Angle(°):
100
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, EMC, LVD, PSE, RoHS, VDE
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex 70W LED Floodlight
Model Number:
70W LED Floodlight
Light Source:
LED
Lamp Luminous Flux(lm):
4900
Working Temperature(℃):
-40 - +60
Product name:
70W LED Floodlight
Watt:
70W
LED Chip:
Original Epsitar
LED Driver:
Isolated,Safe
Voltage:
AC100-277V
Luminous flux:
4900lm
PF:
0.9
Color:
White/Natural White/Warm White
Warranty:
5 Years
Lifespan:
50,000hrs
Item Type:
Flood Lights
Lamp Power(W):
70
LED Light Source:
Epistar
Lamp Luminous Efficiency(lm/w):
70
Color Temperature(CCT):
White/Natural White/Warm White
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month 70W LED Floodlight
Packaging & Delivery
Packaging Details
70W LED Floodlight packing
Net weight: 0.97 KG Gross weight: 1.13 KG White box size: 216*176*136 mm Package size: 901*736*450 mm (48PCS per box)
Port
SHENZHEN
Lead Time:
Accodring to order quantity

Original Epistar 45mil LED Chip 70W LED Floodlight for Outdoor Lighting

Specification for 70W LED Floodlight

Model No.

FL-070-AW-W-01

Item

70W LED Floodlight

LED Quantity

1pcs

LED Chip

Epistar

LED Luminous Efficiency

4200lm-4900lm

Power Factor(PF)

>0.9

Color Rendering Index(CRI)

CRI> 75

Beam Angle

100°

Input Voltage

AC 100-240V

Working life

Life span>50000hrs

Storage Temperature

-40°C ~ +60°C

Working Environment

-40°C ~ +60°C

Lamp Body Material

Die-casting Aluminum

IP Rating

IP65

Product Dimension (mm)

L181mm*W141mm*H93mm



Features for 70W LED Floodlight
--Aluminum die-cast alloy body and  toughened glass,durable and completely  corrosion  resistance.
--Good heat dissipation performance.
--IP  rateing  is up  to  IP65.
--High uti l ization of power,PF ≥0.9.
--Compared with  traditional ones,Energy-saving percentage: 60%.
--Use 1PCS  Integrated high-power  (COB).
--Service  l ife over 50000 hours.
--Fol low RoHS and CE Certified.



 Main Applications for 70W LED Floodlight

-bars,restaurants,clubs,hotels,stages
-historical and modern bui ldings
-museums,art gal leries
-sculptures and plastic arts



 Pictures:
