Signcomplex ultra slim triac dimmable 8W led downlight with 3 years warranty
Click on the image to view the original image
Product: views:3Signcomplex ultra slim triac dimmable 8W led downlight with 3 years warranty
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
200-240V AC/100-240V AC
Lamp Luminous Flux(lm):
500
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
Certification:
CE, RoHS
Model Number:
FDL4-008-AL-W-01
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
PF:
>0.9
Beam angle:
100°
color:
white/warm white/Natural white
Led Qty:
36
Weight:
0.22kg
Maximum current(mA):
<100
Applications:
hotel, house, office, parking lot, exhibition, club...
Item Type:
Downlights
Warranty(Years):
3
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - +40
Lamp Power(W):
8
LED Light Source:
2835 SMD
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Nner box dimension: 118*42*175MM
Net weight: 0.22KG
Gross weight: 0.26KG
Carton box dimension (24PCS inside) : 550*255*210MM
6.9KG/Carton box
Port
Shenzhen and Hongkong
Lead Time:
5-10 working days after we confirm payment

Signcomplex ultra slim triac dimmable 8W led downlight with 3 years warranty

Features of the led downlight:

*TRIAC dimmable, fluent, no strobe.
*Dimmable range 1%~100%.
*Adopt die-casting aluminum alloy to make the main body.
*Use PMMA of high transmittance as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance to ensure the long
lifetime of LED

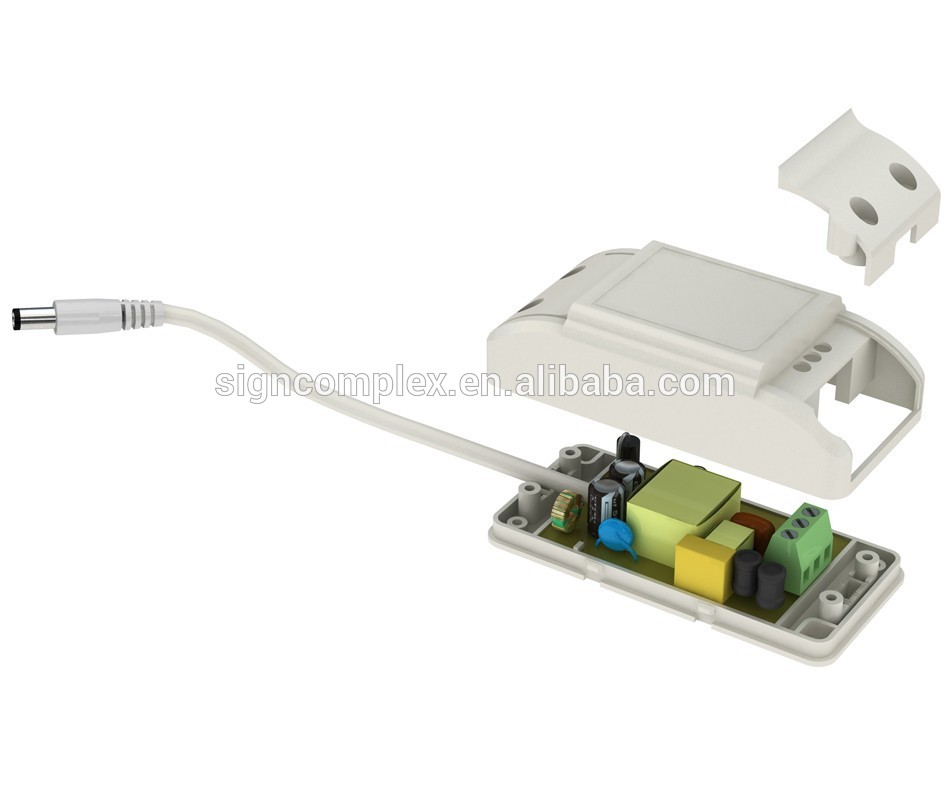

*The driver and main body use separation design which
ensure the long lifetime of both parts.
*High-efficient and energy -saving LED driver

Application
Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting. .

Specification:



Model Number

Color

LED Type

LED Qty.

CCT

Light Output (lm)

Power (W)

Maximum current(mA)

Voltage (V) Frequency

Beam angle(°)

Net weight (KG)

PF

FDL4-008-AL-W-01

white

2835

36

6000-6300

500

8W

<100

100-120V AC

60Hz

100°

0.22

0.9

FDL4-008-AL-NW-01

Neutral white

36

3900-4100

490

FDL4-008-AL-WW-01

warm white

36

2900-3100

420

FDL4-008-AH-W-01

white

36

6000-6300

500

8W

<50

200-240V AC

 50Hz

FDL4-008-AH-NW-01

Neutral white

36

3900-4100

490

FDL4-008-AH-WW-01

warm white

36

2900-3100

420



Dimenions(unit:mm):



 Installation  drawing:





Package Information:

Nner box dimension: 118*42*175MM
Net weight: 0.22KG
Gross weight: 0.26KG
Carton box dimension (24PCS inside) : 550*255*210MM
6.9KG/Carton box



Production processes






Main products



Certifications



Company Image











Sales Team



Trade Shows



Production line



FAQ

1) What are the best selling products in Signcomplex?
- tube
- panel lights
- LED strips
- spot and bulb
- controllers

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
