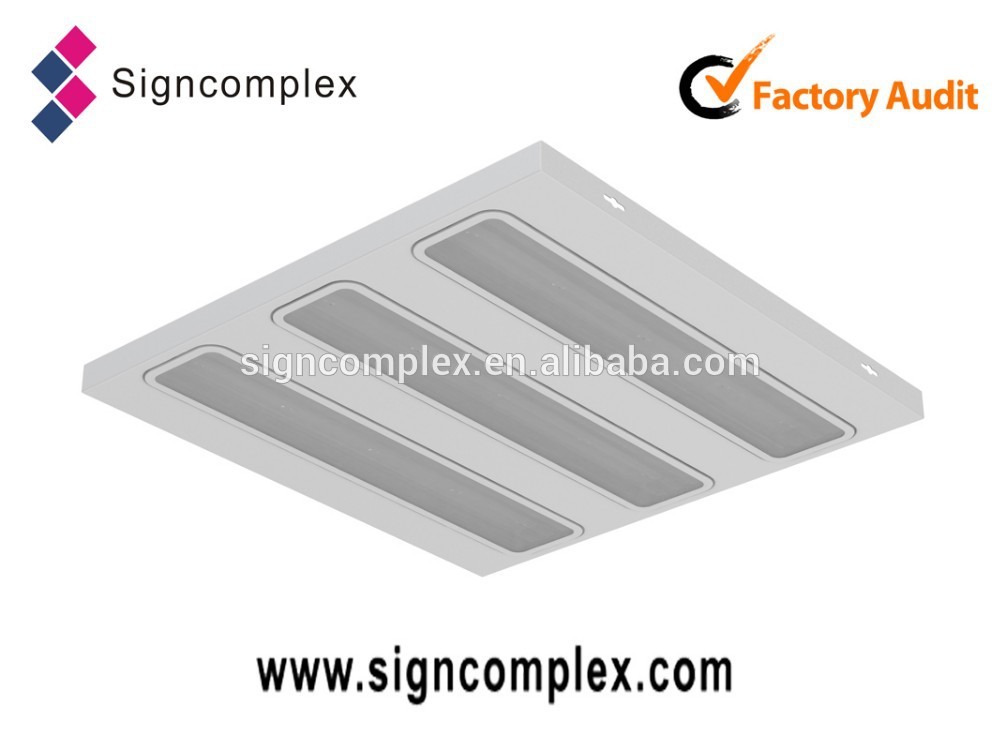

45W 600*600mm 2835 SMD Square Led Grille Downlight
Features of the square led grille light:
1. Color: cool white, warm white, nature white, other available
2.Enclosure materials: Al6063, PMMA
3. Beam angel:110degree
4.Saveing energy:50%
5.Lifespan more than 50,000Hrs
6. IP code :IP40
7. LED source:2835 SMD LED
8.Reflector:milk color PMMA
9. Fol low RoHS and CE Certified.
10Standard warranty:3 years
Description of the square led grille light:
New LED Troffer has the feature of high luminous efficiency, energy saving and long-l ife
span, can replace LED Tube. Appl ication:Hotels, meeting rooms, factories, offices,
supermarkets, residential areas, schools, hospitals and other places which need high color rendering index.
Technical Parameter of the square led grille light:
Input Voltage: AC 100-240V 50-60Hz
Max Current: 0.80A
LED type: 2835 SMD LED
Output Power: 45W
Reflector: wave cover
Net weight: 2.8KG
Gross weight: 6.67KG(2PCS)
Inner box size: 660*650*310mm (6PCS per box)
Specifications of the square led grille light:
Model | Color | LED Type | CCT | Power | CRI | Light Output | Voltage | Beam Angle |
SC-GL-45-AW-01W-6060 | Cool White | SMD2835 | 5500-6500K | 60W | 80 | 4010lm | 100-240V AC | 110° |
SC-GL-45-AW-01NW-6060 | Nature White | SMD2835 | 3900-4500K | 60W | 80 | 4480lm | 100-240V AC | 110° |
SC-GL-45-AW-01WW-6060 | Warm White | SMD2835 | 2700-3200K | 60W | 80 | 3840lm | 100-240V AC | 110° |
Applications of the square led grille light:
Dimensions (Unit: mm/inch)
Electrical Connection
Installation Instructions
Install instruction:
1. turn off the power switch.
2. connect the output-terminal with utility power(AC 100-240V) by using wiring unit, make certain that no copper
wire is bared
3. connect the output -terminal DC plug of current driver with the lamp’s DC plug, insure this connection secure.
4. fix the lamp and current driver to the suitable place by convenient installation.
5. turn on the power switch.
Packing Specification(mm)
