Home > Products > 39w 2*2feet square led light panel

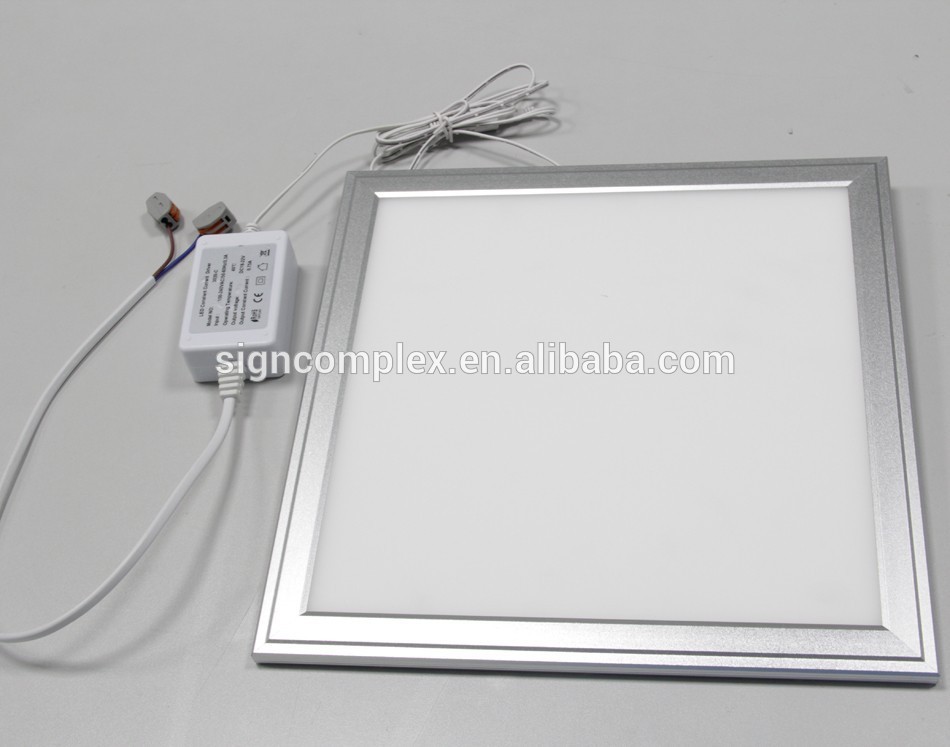

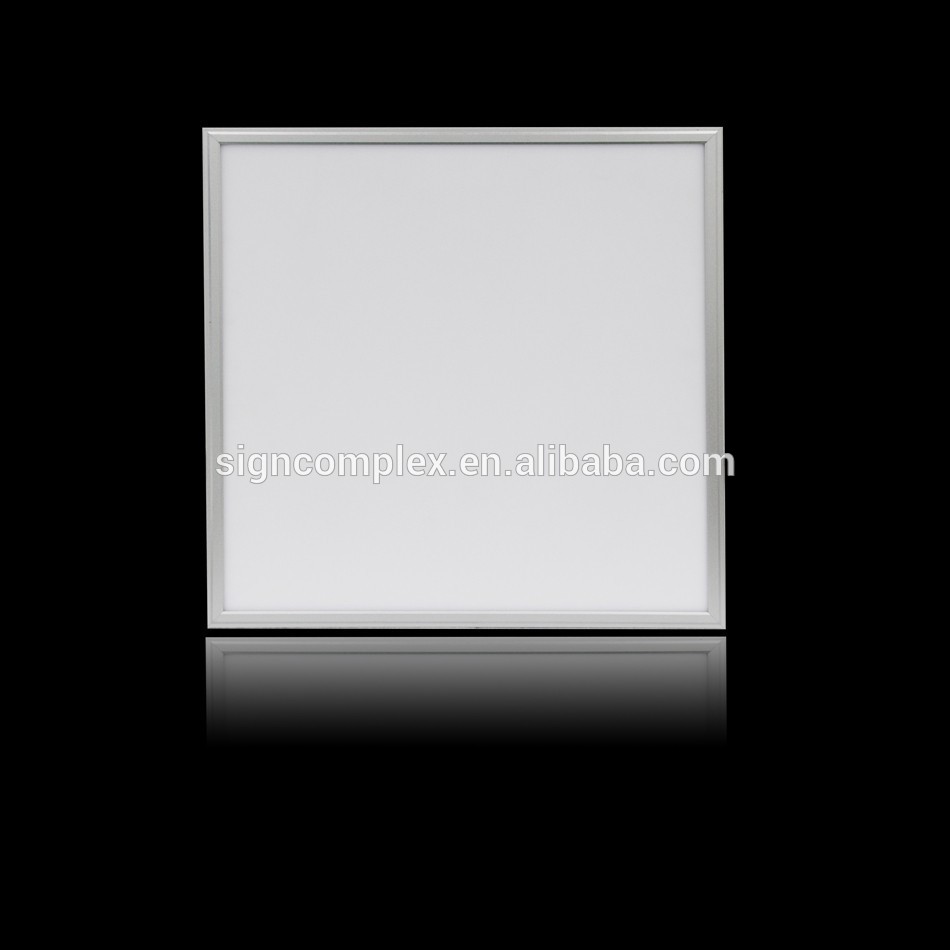

39w 2*2feet square led light panel

Click on the image to view the original image

Product：	views：339w 2*2feet square led light panel
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:44

Product Details

Overview

Quick Details

Input Voltage(V):: 24 V DC

Lamp Luminous Flux(lm):: 2900

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 40000

Lamp Body Material:: Aluminum

IP Rating:: Other

Certification:: CE, LVD, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-PSCAWWE6060

Application:: office, Conference / Meeting rooms

Light Source:: LED

Color Temperature(CCT):: Warm White

color:: white/warm white/natural white

Shape:: Square

Voltage:: 24V

Material:: aluminium alloy

Beam Angle(°):: 110

CCT:: 2700-3200K

Weight:: 6.1KG

Product name:: square 2*2 feet led panellight

Item Type:: Panel Lights

LED Light Source:: 3528 SMD

Warranty(Years):: 3

Supply Ability

Supply Ability:: 1000000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

Lead Time:

Quantity(Pieces)	1 - 10000	>10000
Est. Time(days)	10	To be negotiated

39w 2*2feet square led light panel

Features of the led panel 2*2feet:

1.Color:cool white,warm white,other available.

2. Enclosure material:AI6063 PMMA

3. Beam angle: 110 Degree

4. Saving energy:50%

5. Lifespan more than 36,000Hrs

6. Operating environment: dry location only

7. Input : AC 100-240V 50/60Hz 0.55A 39W

8. Output : DC 24V 1.55A

9. LED Source:3528 SMD LED

10. Type IC

11. Reflector:milk color PMMA

12. No UV,no IR

13. Standard warranty:3 years

14. Safety standard:SAA,RoHS,CE,UL

Specifications of the led panel 2*2feet:

Model	Color	LED Type	CCT	Power	CRI	Light Output	Voltage	Beam angle	Weight
SC-PSCAWCE6060	Cool White	SMD 3528	5500-6500K	39W	80	3140lm	24Vdc	110°	6.1Kg
SC-PSCAWNE6060	Nature White	SMD 3528	3900-4500K	39W	80	3100lm	24Vdc	110°	6.1Kg
SC-PSCAWWE6060	Warm White	SMD 3528	2700-3200K	39W	80	2900lm	24Vdc	110°	6.1Kg

Applications of the led square panel:

-Hotels
-Conference / Meeting rooms
-Factories & Offices
-Commercial Purposes.
-Residential / Institution Bui ldings
-Schools, Colleges & Universities
-Hospitals
-Places where energy saving and high color rendering index lighting are needed.

Production of flowsheet:

Dimensions(mm/inch)
