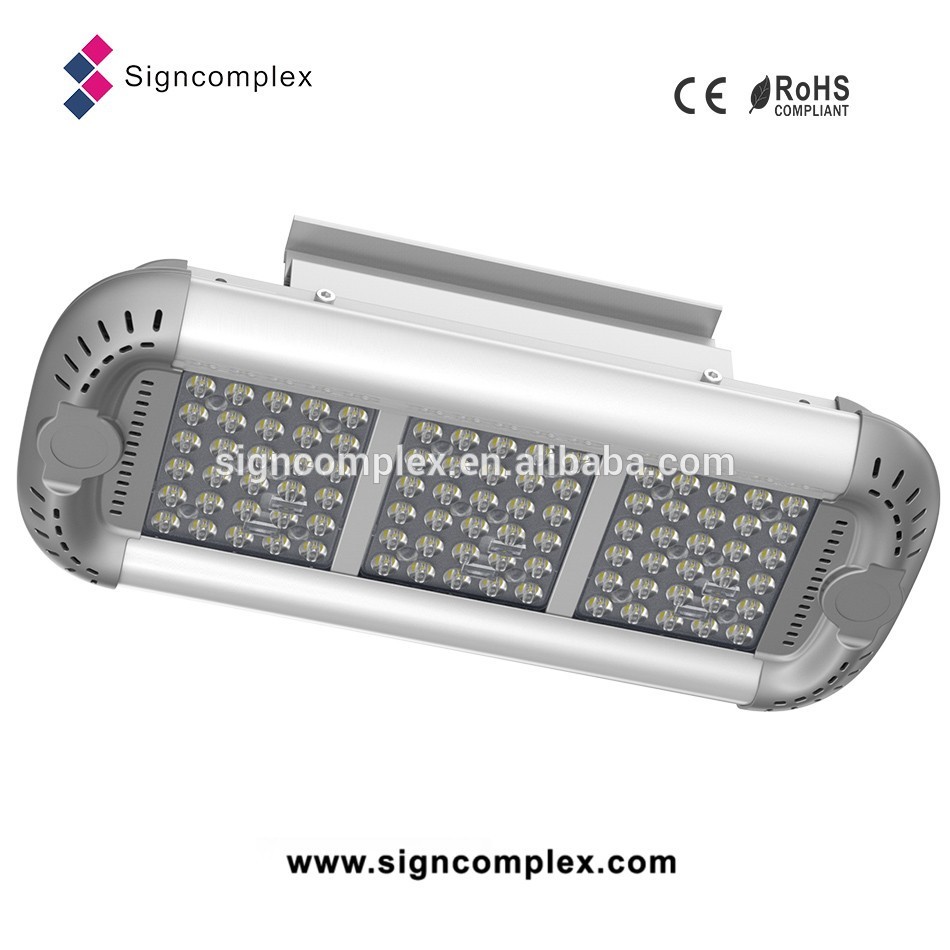

120w Seoul led high bay and low bay light with CE RoHS :
LiBayTM High Bay& Low Bay
Lighting Seried/120W
GK-120-AW-L
Description:
LiBayTM high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.
Features:
1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Technical parameters:
| Model | Color | CCT | Lumen(lm) (±10%) | LED Type | LED Qty. | Power (±10%) | Voltage Frequency | Current | Beam angle (°) | CRI | IP | PF |
| GK-120-AW-W-L-01 | white | 5500-6500K | 11260 | CREE | 90pcs | 120w | AC100-277V 50/60Hz | 1.4A | 70°*120° | >70 | 65 | >0.9 |
| GK-120-AW-NW-L-01 | netural white | 4000-4500K | 11240 | |||||||||
| GK-120-AW-WW-L-01 | warm white | 2700-3200K | 10460 | |||||||||
| GK-120-AW-W-L-02 | white | 5500-6500K | 11260 | CREE | 90pcs | 120w | AC100-277V 50/60Hz | 1.4A | 70°*120° | >70 | 65 | >0.9 |
| GK-120-AW-NW-L-02 | netural white | 4000-4500K | 11240 | |||||||||
| GK-120-AW-WW-L-02 | warm white | 2700-3200K | 10460 | |||||||||
| GK-120-AW-W-L-04 | white | 5500-6500K | 14930 | SEOUL | 90pcs | 120w | AC100-277V 50/60Hz | 1.4A | 70°*120° | >70 | 65 | >0.9 |
| GK-120-AW-NW-L-04 | netural white | 4000-4500K | 14730 | |||||||||
| GK-120-AW-WW-L-04 | warm white | 2700-3200K | 14030 | |||||||||
| GK-120-AW-W-L-05 | white | 5500-6500K | 14930 | SEOUL | 90pcs | 120w | AC100-277V 50/60Hz | 1.4A | 70°*120° | >70 | 65 | >0.9 |
| GK-120-AW-NW-L-05 | netural white | 4000-4500K | 14730 | |||||||||
| GK-120-AW-WW-L-05 | warm white | 2700-3200K | 14030 |
Application:
Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.
