Home > Products > 7inch dimmable recessed led downlight 30w with CE ROHS TUV DALI

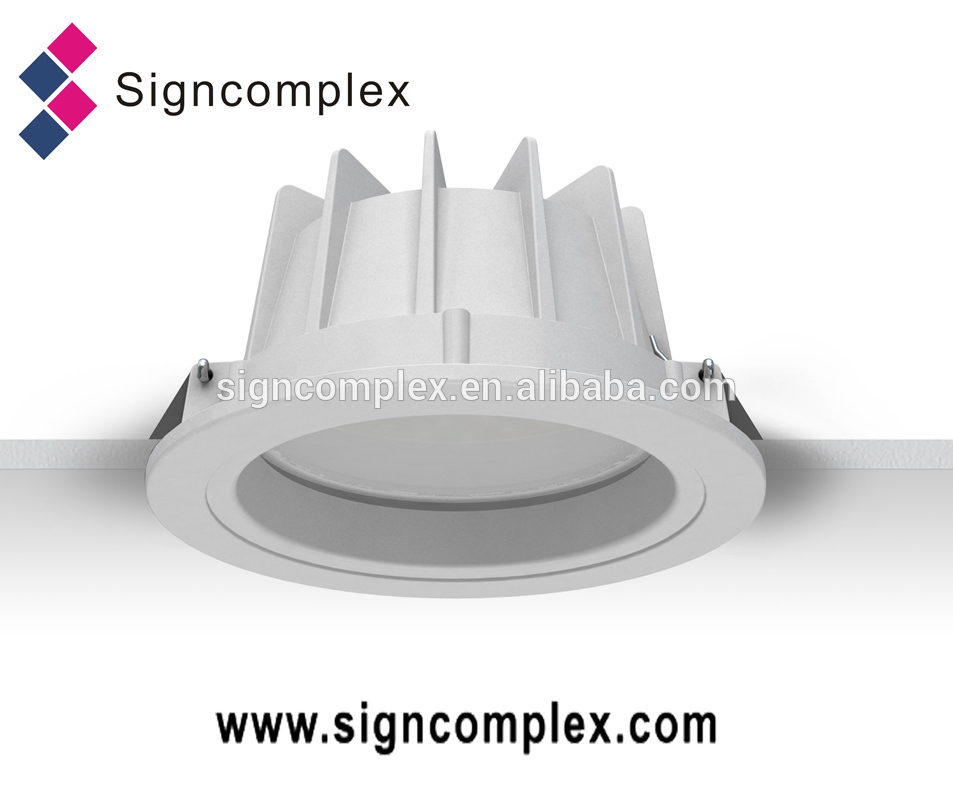

7inch dimmable recessed led downlight 30w with CE ROHS TUV DALI

Click on the image to view the original image

Product：	views：87inch dimmable recessed led downlight 30w with CE ROHS TUV DALI
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:44

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-120V AC 60Hz

Lamp Luminous Flux(lm):: 1760

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, LVD, RoHS

Model Number:: TDLD7-030-AL-WW

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Beam angle:: 82°

Led Qty:: 60

color:: white/warm white/Natural white

Net Weight:: 0.78kg

Gross weight::: 1.01KG

Carton box dimension (18PCS inside):: 665*480*305MM

CCT:: 2900-3100K

Light Output (lm):: 2220

Dimmable:: dimmable and non-dimmable is available

item:: 7inch dimmable recessed led downlight 30w with CE ROHS TUV DALI

Item Type:: Downlights

Warranty(Years):: 3

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 30

LED Light Source:: 5730 SMD

Lamp Luminous Efficiency(lm/w):: 74

Color Temperature(CCT):: 5000-7000K/2700-3500K/4000-5000K

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Nner box dimension: 231*205*96MM
Net weight: 0.78KG
Gross weight: 1.01KG
Carton box dimension (18PCS inside) : 665*480*305MM

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

7inch dimmable recessed led downlight 30w with CE ROHS TUV DALI

Features of the led down light:

*TRIAC dimmable, fluent, no strobe;
*Dimmable range 1%~100%;
*Unique structure design ensure optimized lighting effects;
*Obvious energy-saving effects;
*No UV or IR;
*Flexible control system of color difference ensure durability
of light and color;
*Strong and durable aluminum enclosure, good heat
dissipation structure;
*Milky cover, no flare, soft light;
*Constant -current driver, provide circuit protection and ensure
lumen maintenance;
*Lifespan is above 50,000 hours.

Application of the downlight led 30w:
Widely used in hotel, house, office, parking lot, exhibition, club and other places needing indoor lighting.

Specification of the downlight led 30w:

Model Number	Color	LED Type	LED Qty.	CCT	Light Output (lm)	Power (W)	Maximum current(mA)	Voltage (V) Frequency	Beam angle(°)	Net weight (KG)	PF
TDLD7-030-AL-W	white	5730	60	6000-6300	2220	30W	<320	100-120V AC 60Hz	82°	0.78	≥0.9
TDLD7-030-AL-NW	Neutral white		60	3900-4100	2000
TDLD7-030-AL-WW	warm white		60	2900-3100	1760
TDLD7-030-AH-W	white		60	6000-6300	2220	30W	<160	200-240V AC 50Hz
TDLD7-030-AH-NW	Neutral white		60	3900-4100	2000
TDLD7-030-AH-WW	warm white		60	2900-3100	1760
