Home > Products > IP65 Retrofit 130lm/w 200W highbay led light

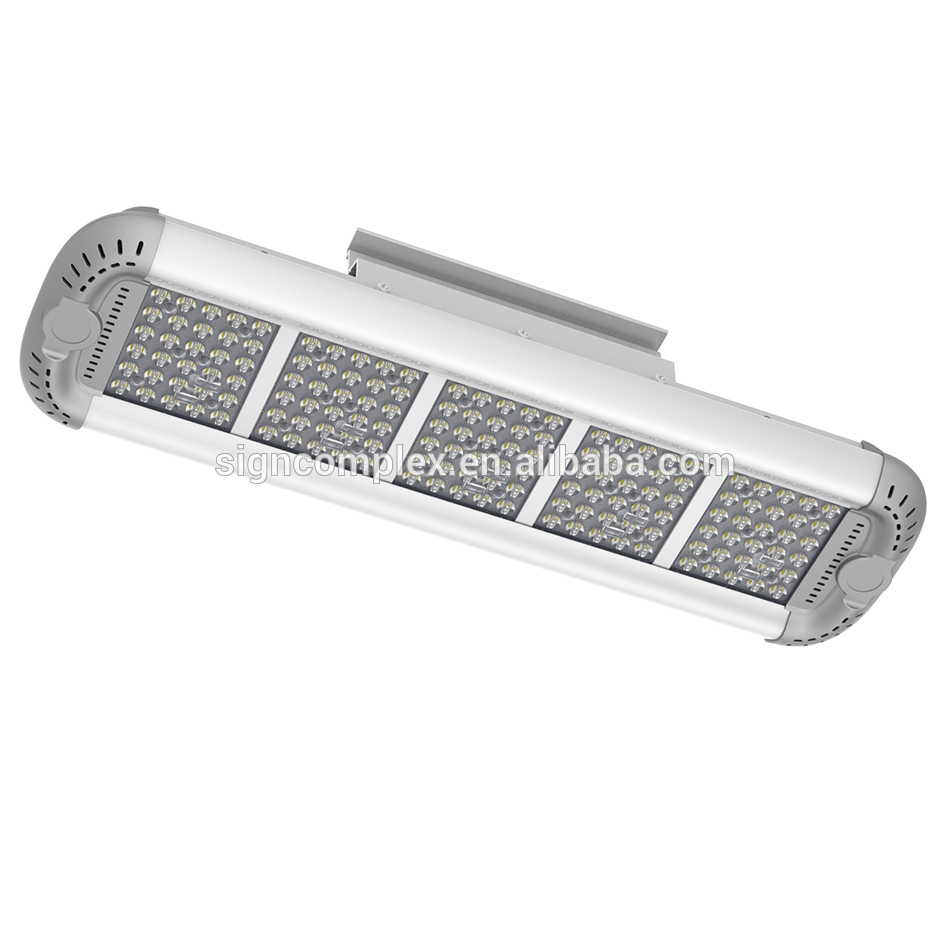

IP65 Retrofit 130lm/w 200W highbay led light
Click on the image to view the original image
Product： views：23IP65 Retrofit 130lm/w 200W highbay led light
Type： High bay
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Lamp Luminous Flux(lm):
130LM/W
CRI (Ra>):
80
Working Lifetime(Hour):
50000h
Model Number:
GK-200-AW-L
Application:
WAREHOUSE
Net Weight:
7.0kg
Model number:
GK-200-AW-NW-L-01
CCT:
4000-4500K
Current:
2.3A
LED Qty.:
150pcs
CRI:
>70
Lumen(lm) (±10%):
18870
item:
retrofit 200W highbay led light ip65
Color Temperature(CCT):
PURE WHITE
IP Rating:
IP65
LED Chip Brand:
cree
Type:
High bay
Input Voltage:
AC100-277V
Beam Angle(°):
70°*120°
Supply Ability
Supply Ability:
80000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common Industrial Packaging, Inner Box and Cartons
Port
Shenzhen and Hongkong
Lead Time:
Quantity(Pieces)1 - 5000 >5000
Est. Time(days)10To be negotiated

rIP65 Retrofit 130lm/w 200W highbay led light



LiBayTM High Bay& Low Bay
Lighting Seried200W
GK-200-AW-L


Description of the highbay led light:
LiBayTM high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.


Features of the highbay led light:
1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.





Technical parameters of the highbay led light:

ModelColorCCTLumen(lm)
(±10%)		LED TypeLED Qty.Power
(±10%)		Voltage
Frequency		CurrentBeam angle
(°)		CRIIPPF
GK-200-AW-W-L-01white5500-6500K19370CREE150pcs200wAC100-277V
50/60Hz		2.3A70°*120°>7065>0.9
GK-200-AW-NW-L-01netural white4000-4500K18870
GK-200-AW-WW-L-01warm white2700-3200K17330
GK-200-AW-W-L-02white5500-6500K19370CREE150pcs200wAC100-277V
50/60Hz		2.3A70°*120°>7065>0.9
GK-200-AW-NW-L-02netural white4000-4500K18870
GK-200-AW-WW-L-02warm white2700-3200K17330
GK-200-AW-W-L-04white5500-6500K24770SEOUL150pcs200wAC100-277V
50/60Hz		2.3A70°*120°>7065>0.9
GK-200-AW-NW-L-04netural white4000-4500K25080
GK-200-AW-WW-L-04warm white2700-3200K24110
GK-200-AW-W-L-05white5500-6500K24770SEOUL150pcs200wAC100-277V
50/60Hz		2.3A70°*120°>7065>0.9
GK-200-AW-NW-L-05netural white4000-4500K25080
GK-200-AW-WW-L-05warm white2700-3200K24110



Application:
Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.
