Signcomplex hot 1.2m linear hanging light 36w with CE ROHS

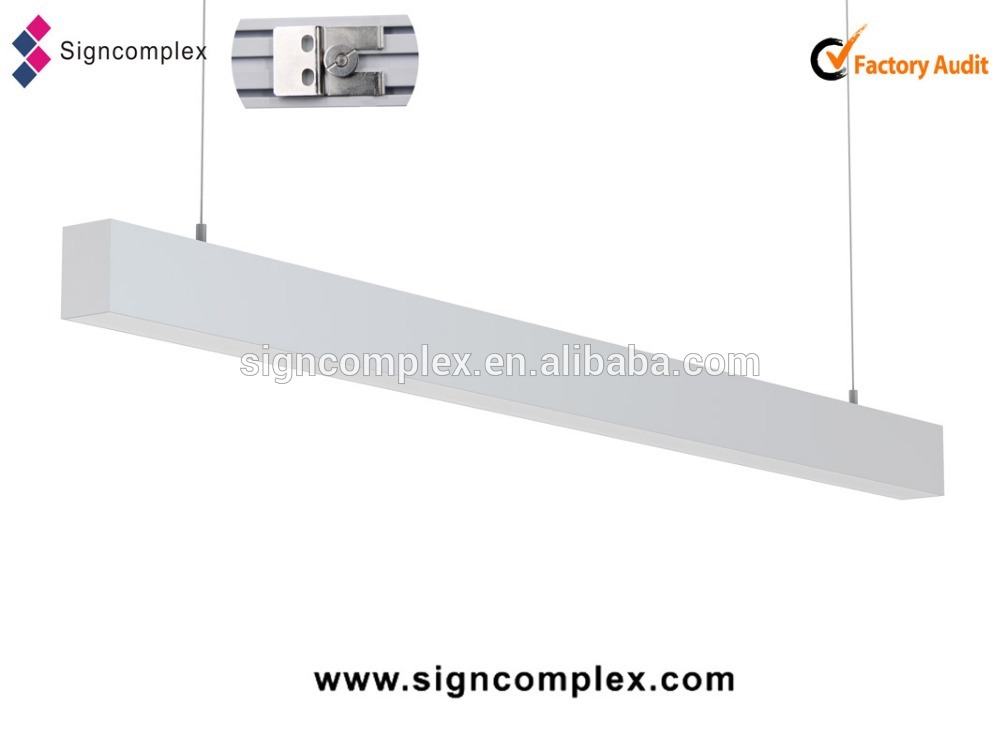

SL7250 Linear Light
SC-SL7250-036-AW-01W
SC-SL7250-036-AW-01NW
SC-SL7250-036-AW-01WW
0.6m 1.2m 1.5m is available
Description of the linear hanging light:
LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profi le, different dimension and size, easy to instal l.
3 types instal lation method: ceiling mounted type, suspended type and embedded type, and different customized dimensions are also acceptable, which can meet instal lation requirement of different fields and occasions.
Features of the linear hanging light:
1. Color:cool white(5000-6500K), natural white(3700-4500K)
warm white(2700-3200K), other avai lable.
2. Power factor>0.95
3. Beam angle: 110 Degree
4. Saving energy: 50%
5. Life span more than 50,000Hrs
6. IP code: IP40
7. Standard warranty: 3years
8. Fol low CE Certified.
Technical Parameter of the linear hanging light:
Input Voltage: AC 100-240V 50/60Hz
LED type: 2835 SMD LED
Intput Power: 36W
Reflector: Milky cover
Applications
- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution bui ldings
- Schools, col leges, universities and hospitals
-Places which needs energy saving and high color rendering index l ighting.
Specifications of the led linear lamp:
| Model # | CCT | LED Type | Lumen(lm) (±10%) | CRE | Beam angle | Power(W) (±10%) | Voltage (V) | PF | Weight (Kg) |
| SC-SL7250-036-AW-01W | 5000-6500K | 2835 | 2919lm | >80 | 110° | 36W | AC 100-240V 50/60Hz | >0.95 | 1.5 |
| SC-SL7250-036-AW-01NW | 3700-4500K | 2977lm | >80 | 110° | 36W | ||||
| SC-SL7250-036-AW-01WW | 2700-3200K | 2516lm | >80 | 110° | 36W |
Production of flowsheet:
