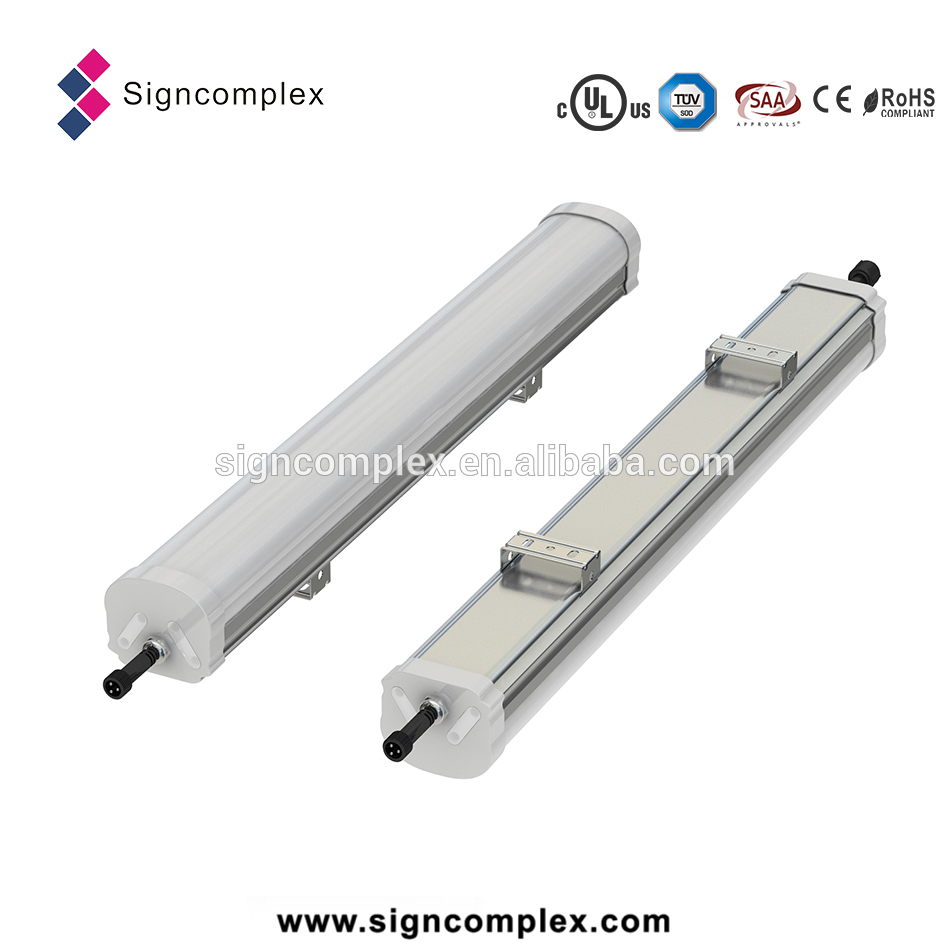

Built-in Power 20w led tri proof light
20W Tri-proof Lamp with Built-in Power
TP-020-AW-W-B
Description of the led tri proof light
Tri-proof light is usually used in environment which require water-proof, dust-proof,corrosion-proof lighting, and it is widely used in shopping mall,warehouse and other indoor places. Tri-proof light of medium power can be ceiling mounted or suspending instal led. Adopt aluminum alloy and PC as the material which ensure that it can work stably in different environment. White appearance. Lifespan: 30,000 hours. Operating environment:-20℃-45℃. CE/RoHS compliant.
Features of the led tri proof light
1.Water-proof design without adhesive, so there is no water leakage caused by adhesive aging, convenient to disassemble;
2.Anti-UV cover, it"s ideal choice for outdoor use;
3.High impact resistance PC cover, IK10;
4.High transmittance PC cover transmit soft l ight, high l ight efficiency ,uniform l ight ;no dark spot;
5.High efficient heat dissipation, LEDs and power supply low temperature rise ,high stabi l ity of continuous working;
6.Can switch start frequently, no fl icker;
7.Compact appearance, novel design style, easy to install and transport.
Specifications of the led tri proof light
| Model # | CCT | LED Type Quantity | Lumen(lm) (±10%) | CRI | Beam (angle°) | Power(w) (±10%) | Voltage, Frequency, Current | PF | Corrosion-proof Grade |
| TP-020-AW-W-B-01 | 5500-6500K | 2835 144pcs | 2020 | 80 | 230° | 20 | AC100-240V 50/60Hz 0.3A | 0.9 | W |
| TP-020-AW-NW-B-01 | 4000-4500K | 1930 | 80 | 230° | 20 | ||||
| TP-020-AW-WW-B-01 | 2700-3200K | 1850 | 80 | 230° | 20 | ||||
| TP-020-AW-W-B-02 | 5500-6500K | 2020 | 80 | 230° | 20 | ||||
| TP-020-AW-NW-B-02 | 4000-4500K | 1930 | 80 | 230° | 20 | ||||
| TP-020-AW-WW-B-02 | 2700-3200K | 1850 | 80 | 230° | 20 | ||||
| TP-020-AW-W-B-03 | 5500-6500K | 2020 | 80 | 230° | 20 | AC100-277V 50/60Hz 0.3A | 0.9 | W | |
| TP-020-AW-NW-B-03 | 4000-4500K | 1930 | 80 | 230° | 20 | ||||
| TP-020-AW-WW-B-03 | 2700-3200K | 1850 | 80 | 230° | 20 |
Main Applications of the led tri proof light
Tri-proof light of medium power can be used in warehouse, parking lot,shopping mal l,farm,food factory, cold storage, metro, underground passage and other places.
