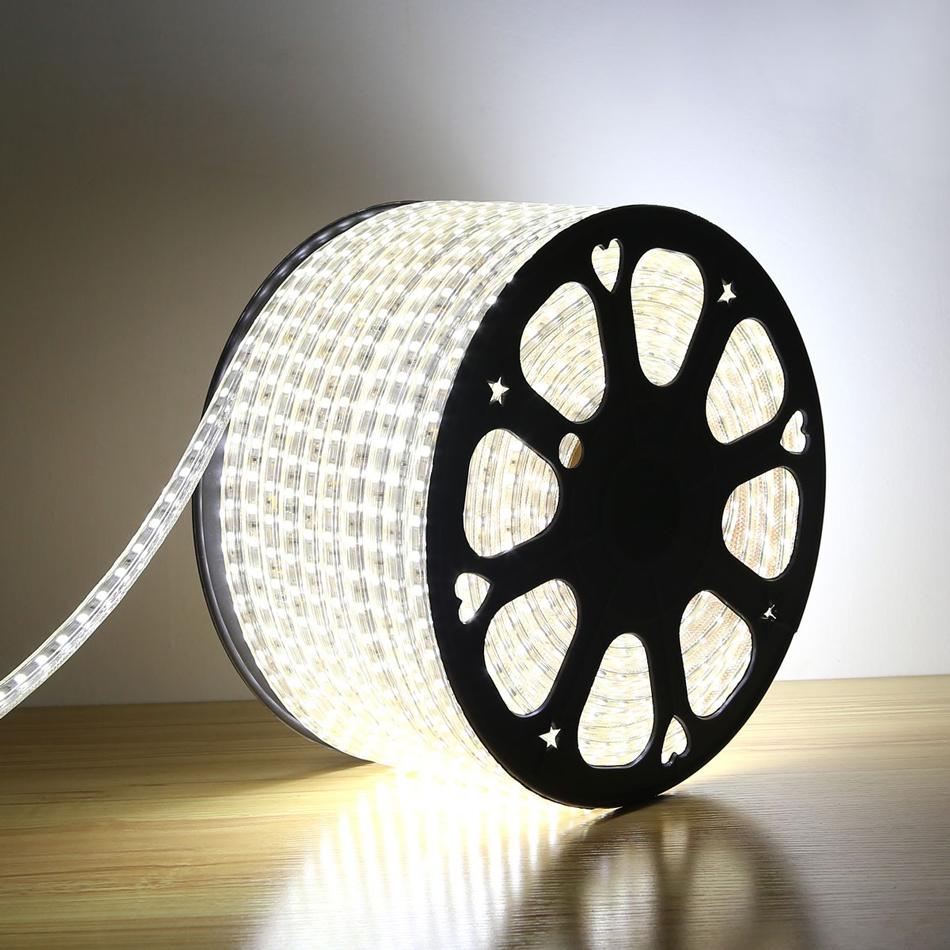

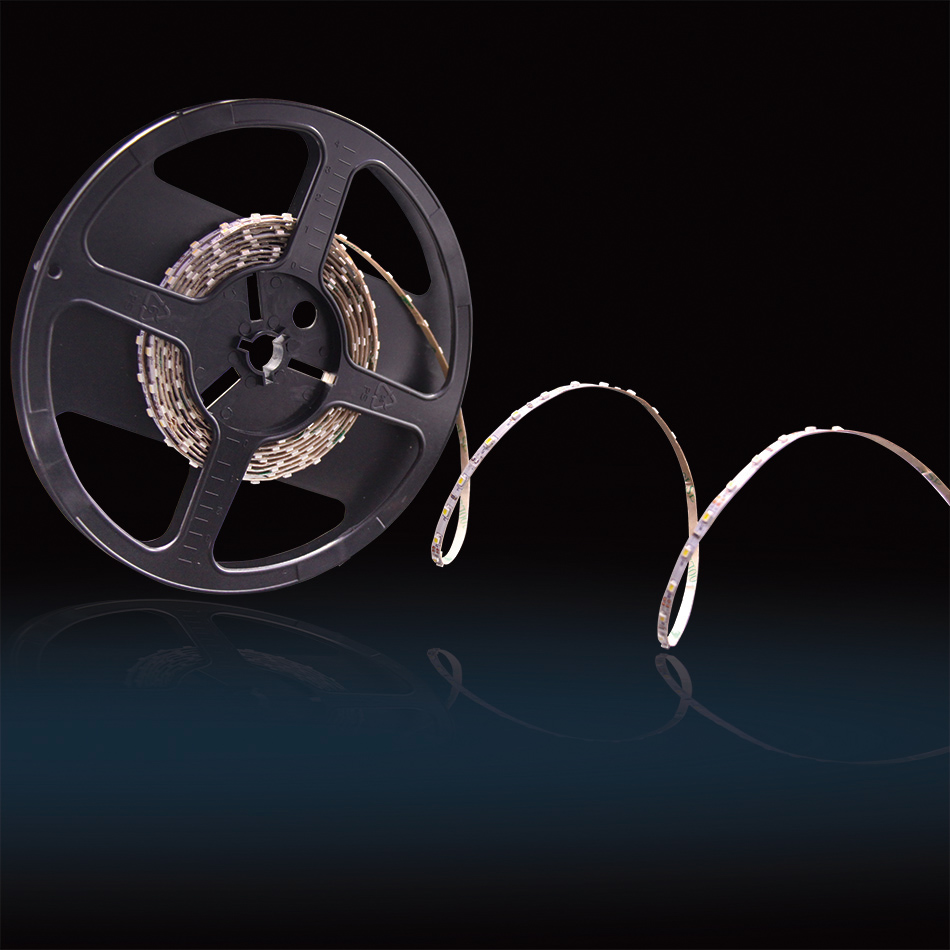

3020 120leds/m super bright led strip
Click on the image to view the original image
Product： views：53020 120leds/m super bright led strip
Branch： Signcomplex
Type： Flex LED Strips
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
24VDC
Lamp Power:
19.2w/m
Lamp Luminous Flux(lm):
1220lm/m
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
Certification:
CE, EMC, RoHS, UL
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-BID-W-24V
Application:
Residential
Light Source:
LED
Emitting Color:
White
Color Temperature(CCT):
white
LED Light Source:
3020SMD LED
LED Quantity:
600
Beam Angle(°):
120
Color:
White/Warm White/Natural White
Current (Amps/m):
0.8
Length (m):
5
IP Rating:
IP20
Item Type:
Light Strips
Supply Ability
Supply Ability:
65000000 Roll/Rolls per Month We have stock for 3020 120leds/m super bright led strip
Packaging & Delivery
Packaging Details
5 meters/reel as an unit wrapped around a disk, each disk is packed by anti-static bag.
Port
Shenzhen and Hongkong

3020 120leds/m super bright led strip



SC-BID

FlexmondTM



Technical parameters of the 3020 120leds/m super bright led strip

Model NumberColorLight Outpu
(lumen/m)		LED
Q’ty		LED TypeLength
(m)		Beam Angle
(degrees)		Voltage
(V DC)		Current
(Amps/m)		Max.Power
Consumption
(W/m)		IPContinuous
Connection
(m)
SC-BID-WWhite12206003020 SMD
LED		5120°121.619.2205
SC-BID-WWWarm White850
SC-BID-NWNatural White1090
SC-BID-W-24VWhite1220240.8
SC-BID-WW-24VWarm White850
SC-BID-NW-24VNatural White1090



Model NumberColorLengthLEDLED TypeLight OutputBeam Angle
(m)Q’ty(lumen/m)(degrees)
SC-IB-NWNatural White53003528 SMD  330120
SC-IB-WWhite53003528 SMD390120
SC-IB-WWWarm White53003528 SMD320120
SC-IB-NW2Natural White56003528 SMD640120
SC-IB-W2White56003528 SMD780120
SC-IB-WW2Warm White56003528 SMD660120





Application of the 3020 120leds/m super bright led strip

-Cove lighting
-Architectural lights for canopy,corridor,window,archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday,event,show,exhibition

Printed circuit board layout



Production of flowsheet:

QC Flow sheet:
