Manual Fire Extinguisher CO2 Filling Machine quick refill
Click on the image to view the original image
Product: views:5Manual Fire Extinguisher CO2 Filling Machine quick refill
Branch: SINAT
Size: 61X50X70 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:50
  Negotiated
Product Details
Overview
Quick Details
Packaging Type:
wood
Packaging Material:
Wood
Condition:
New
Application:
Chemical, Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v/50hz
Power:
1.1Kw
Place of Origin:
Zhejiang, China
Brand Name:
SINAT
Model Number:
SSGMT-A
Dimension(L*W*H):
530x450x420mm
Weight:
59kg
Certification:
ECM certificate
Filling Machine name:
Manual Fire Extinguisher CO2 Filling Machine quick refill
Filling Machine power:
1.10kw220V/50Hz or60hz
Machine N.W.:
59kg
Machine size:
530x450x420mm
Filling machine Speed:
>3kg per minute
Filling machine application:
filling CO2 fire extinguisher / fire service
Filling machine Velocity:
750r/min
Filling machine pump:
three plungers style
Machine Output Pressure:
140bar
Machine Pressure gauge:
pre-set pressure as 120bar
After-sales Service Provided:
No overseas service provided

Packaging & Delivery

Selling Units:
Single item
Single package size:
61X50X70 cm
Single gross weight:
66.0 kg
Package Type:
Each unit packed in wood Manual Fire Extinguisher CO2 Filling Machine quick refill
Picture Example:
package-img
package-img
Lead Time:
15

Item Descriptions:

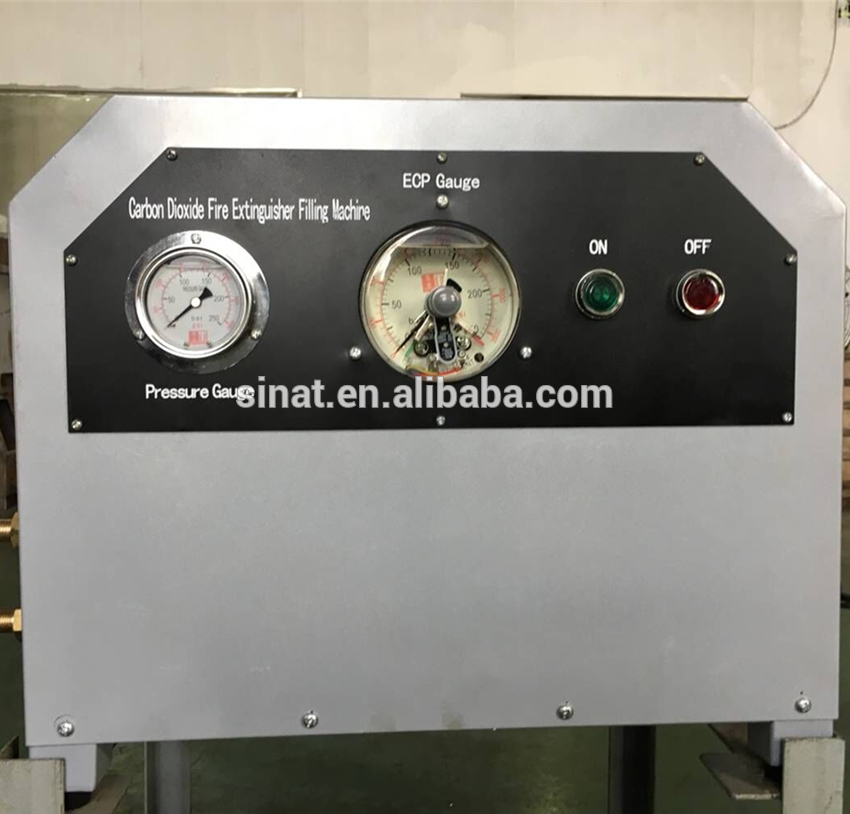

Manual Fire Extinguisher CO2 Filling Machine quick refill

GMT-C CO2 Filler is a small type and portable filler. Both the flask with siphon and

Medial- pressure tank can be used CO2 filling.

Filler must connect with CO2 steel flask while on filling.

Meanwhile, the nozzle of the flask must be standard nozzle.

Must use electronic scale as basis of filling weight while on filling.

This GMT-C CO2 Filler does not include electronic scale.

Technical Parameters:

1. Voltage: 220V/50Hz

2. Power: 1.1KW

3. Velocity: 750r/min

4. Pump: three plungers style

5. Filling Volume: Max.-3Kg/min

6. Max. Output Pressure: 140bar

7. Electric Contact Pressure Gauge: pre-set pressure as 120bar

8. Weight: 59Kg

9. Volume: 530×450×420(mm)

Troubleshooting:



Fault

 Cause

 Solution

Pump does not generate pressure

1. The supplying flask not opened.

Open the supplying flask.

2. The supplying flask does not have siphon.

Replace the supplying flask.

3. No gas in the supplying flask.

Replace the supplying flask.

4. Filter blocked. (Figure 2)

Decrease the filler"s pressure to check whether the filler is contaminated.

5.Pump leaking.(Pump Indicating Figure)

Decrease the filler"s pressure to dismantle the pump body, clean pump parts, and replace the damaged rubber washer.

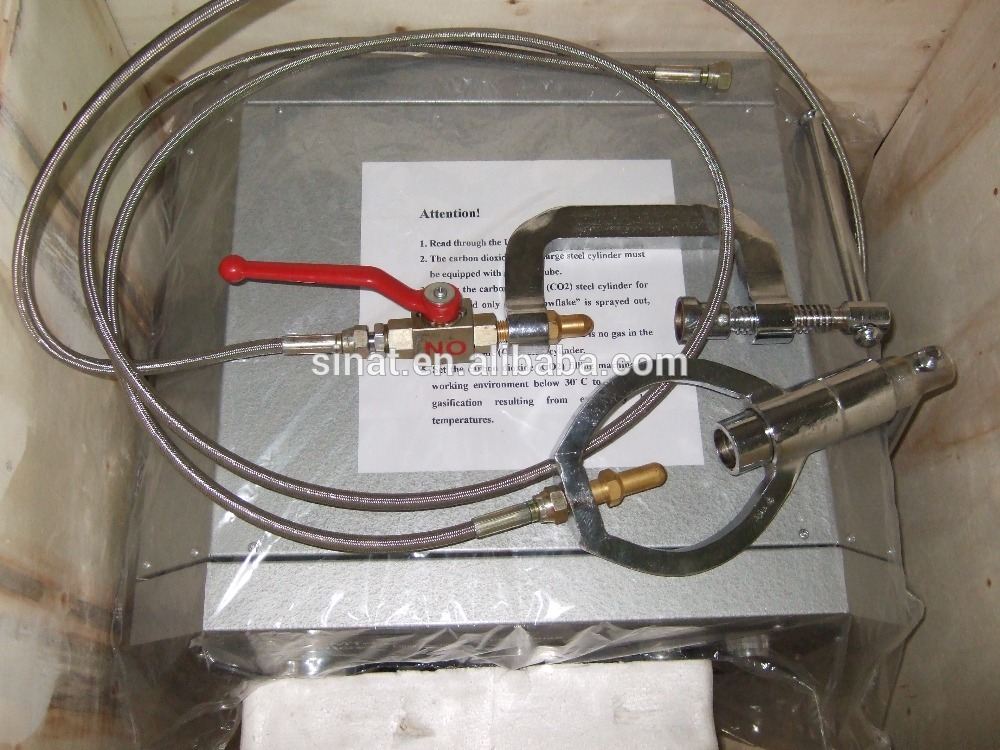

Pictures:

Why choose us:

1)we are profesional in manufacture safety products

2)OEM available and print your logo

3)we have more than 10 years customer service group and familiar with shipment

which will shipment early & smoothly and  reduce the customer cost.

4)Customer service is the first and will be respond within 24 hours.
