Item Descriptions:
Dry powder fire extinguisher filling station
GMF-C Dry powder filler is suitable for filling various dry powder extinguishers. the main part of the machine is made of ultra-high molecular material and thus is durable. there is a cleaning function provided for the filter and no replacement is required for the filter in the whole service life of the machine. also the machine has advantage as direct recycling of various types of dry powder to avoid environmental pollution, simple operation, convenient use, small size and convenient movement.
Technical Parameters:
Volume: 700×460×1180mm
Weight: 66 Kg
Voltage: 220V/50Hz
Power: 0.75KW
Filling Speed: 7Kg/min
Suitable calibre:20~80mm
Maintenance:
1. Fill appropriate amount of 20# engine oil to elevating pieces;
2. When sucking, do not insert the suction tube too deep in the dry powder, otherwise, the tube is easy to be blocked;
3. Disqualified dry powder or powder with over amount of moisture is strictly prohibited to use;
4. After finish filling each time, tread on the footboard of the reversing valve times to remove the remaining dust and powder on the filter.
Fault | Cause | Solution |
Pump does not generate pressure | 1. The supplying flask not opened. | Open the supplying flask. |
2. The supplying flask does not have siphon. | Replace the supplying flask. | |
3. No gas in the supplying flask. | Replace the supplying flask. | |
4. Filter blocked. (Figure 2) | Decrease the filler"s pressure to check whether the filler is contaminated. | |
5.Pump leaking.(Pump Indicating Figure) | Decrease the filler"s pressure to dismantle the pump body, clean pump parts, and replace the damaged rubber washer. |

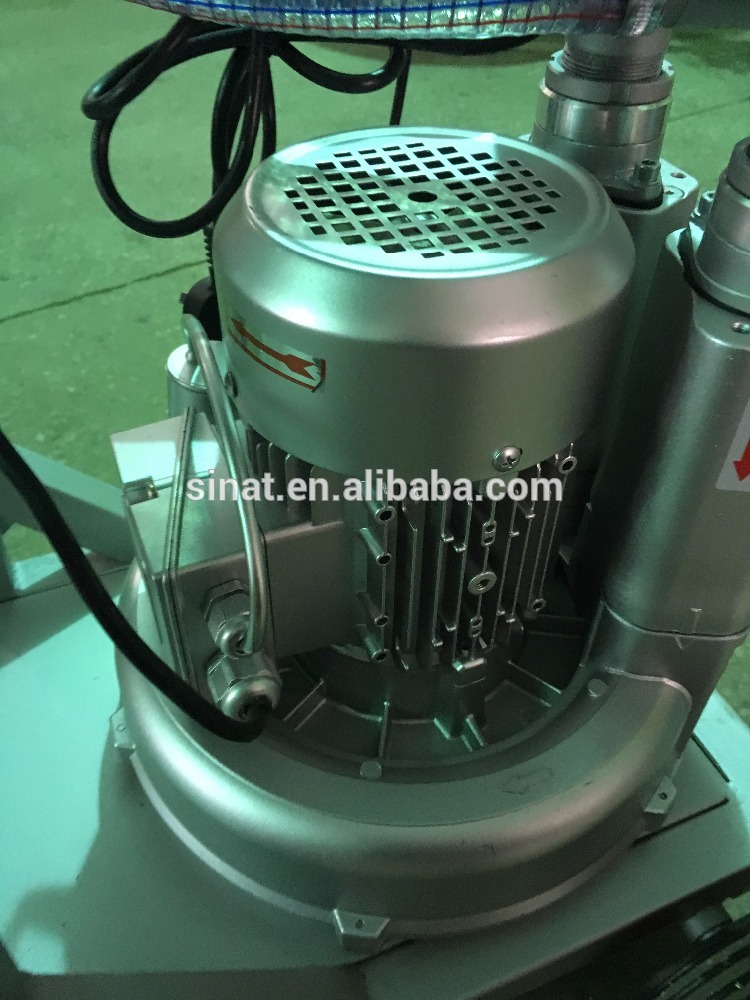

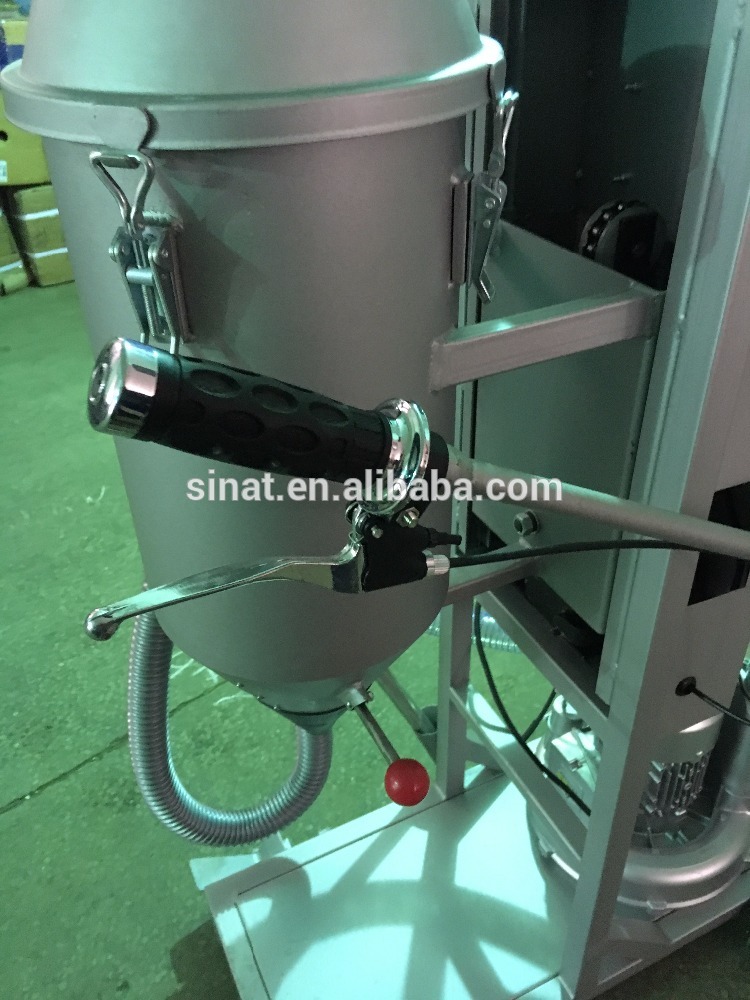

Pictures:
Why choose us:
1)we are proffecion in manufacture life saving products
2)OEM available and print your logo
3)we have more than 10 years customer service group and familiar with shipment
which will shipment early & smoothly and reduce the customer cost.
4)Customer service is the first and will be respond within 24 hours.
