Home > Products > Dry Chemical Powder abc Fire Extinguisher refilling machine
Dry Chemical Powder abc Fire Extinguisher refilling machine
Click on the image to view the original image
Product: views:7Dry Chemical Powder abc Fire Extinguisher refilling machine
Branch: SINAT
Size: 80X52X120 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:50
  Negotiated
Product Details
Overview
Quick Details
Packaging Type:
wood
Packaging Material:
Wood
Condition:
New
Application:
Chemical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v/50hz
Power:
0.75Kw
Place of Origin:
Zhejiang, China
Brand Name:
SINAT
Model Number:
SSGMF-C
Dimension(L*W*H):
70x460x1180mm
Weight:
66kg
Certification:
ECM certificate
Filling Machine name:
Dry Chemical Powderabc Fire Extinguisher refilling machine
Filling Machine power:
0.75kw220V/50Hz
Filling machine N.W.:
66kg
Filling machine size:
70x460x1180mm
Filling machine Speed:
>7kg per minute
Filling machine application:
fire extinguisher / fire service
Filling machine Calibre:
20-80mm
Filling machine pump:
three plungers style
Machine filter:
9pcs
Machine package:
Wood package
After-sales Service Provided:
No overseas service provided

Packaging & Delivery

Selling Units:
Single item
Single package size:
80X52X120 cm
Single gross weight:
95.0 kg
Package Type:
Each packed in one wood export box Dry Chemical Powderabc Fire Extinguisher refilling machine

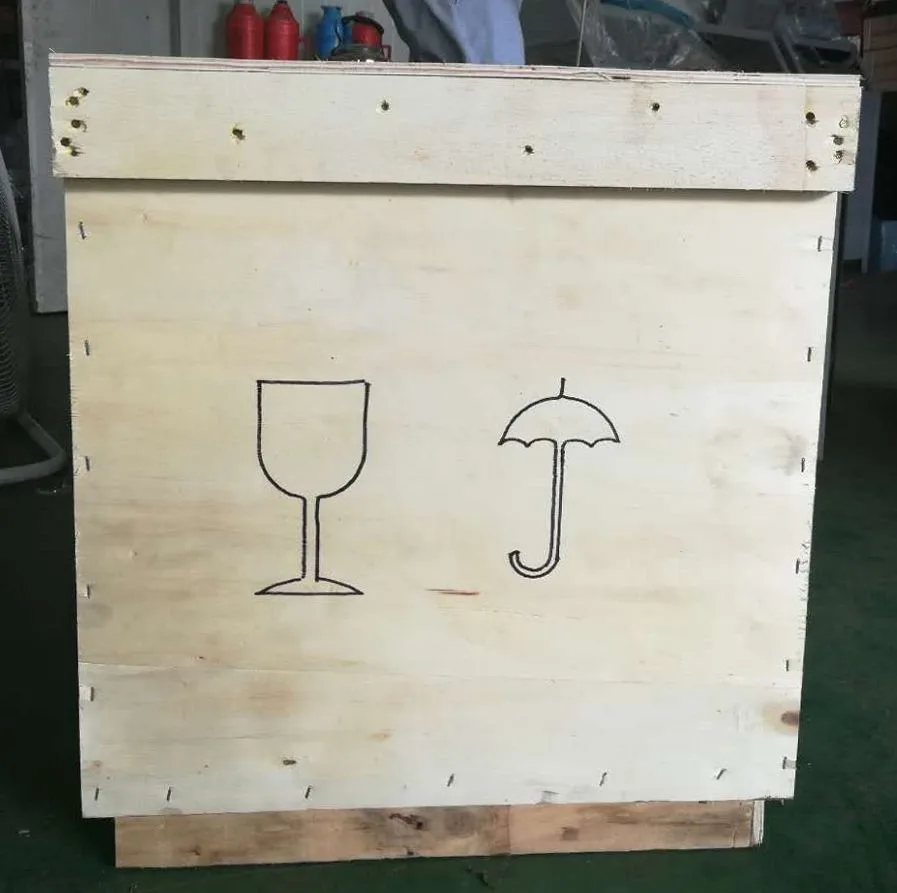

Picture Example:
package-img
Lead Time:
10

Item Descriptions:

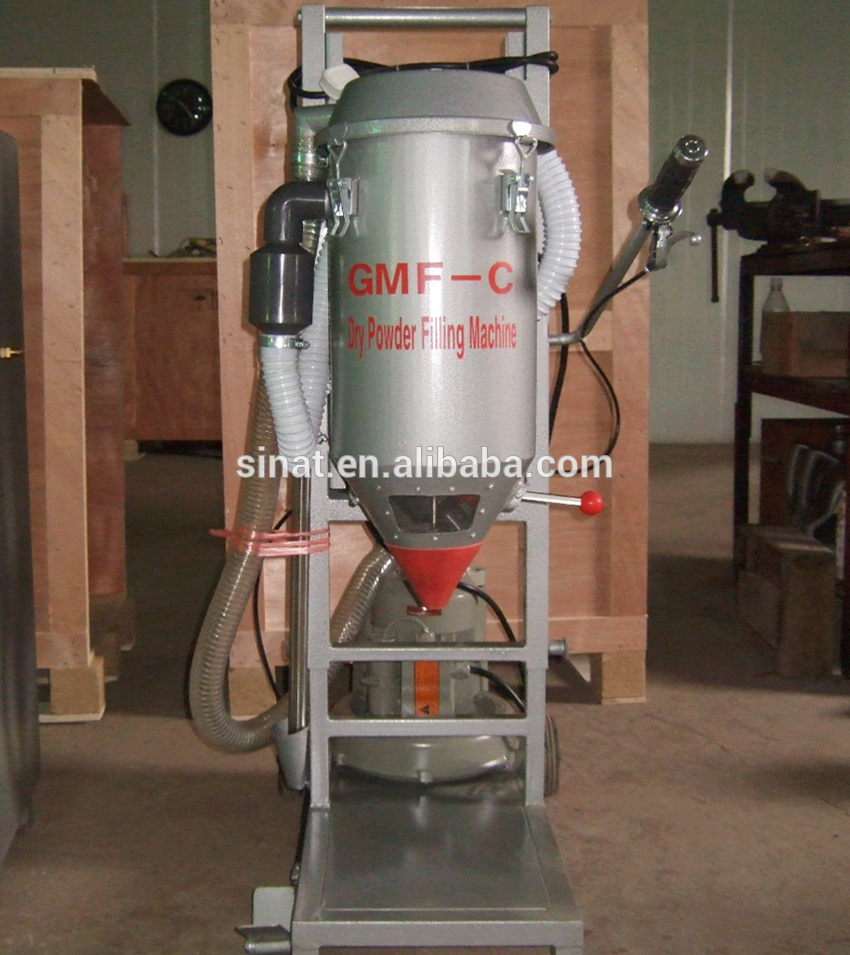

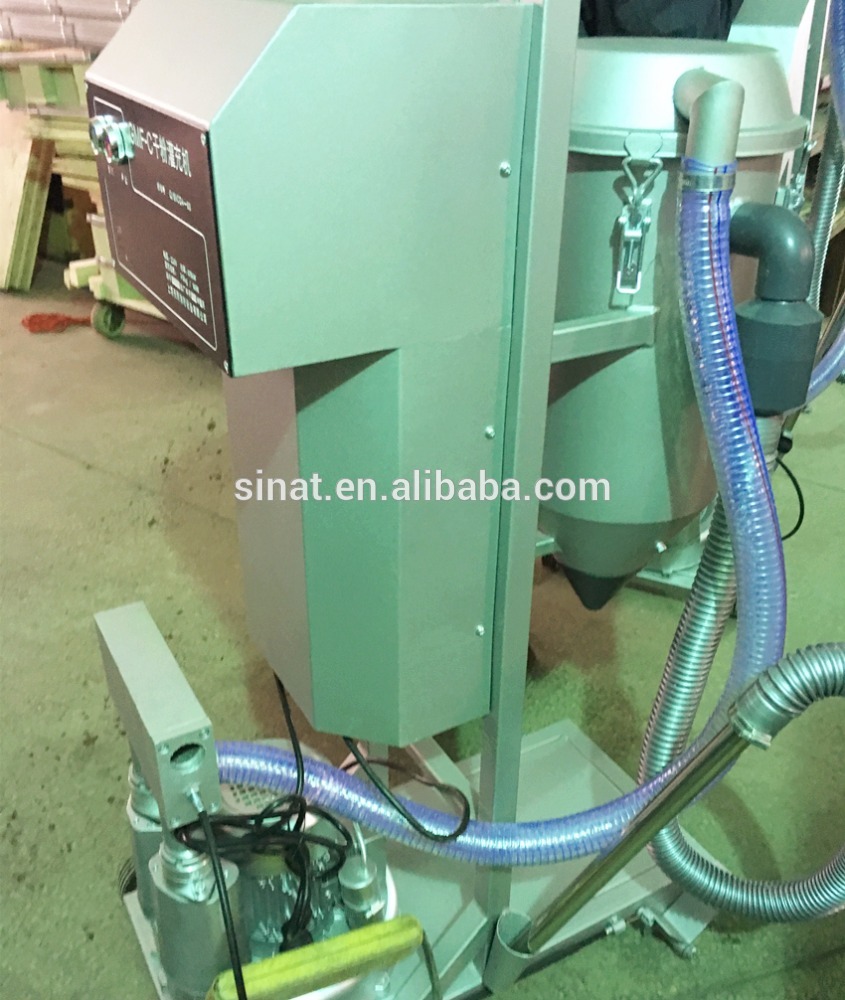

Dry Chemical Powder  abc Fire Extinguisher refilling machine

GMF-C Dry powder filler is suitable for filling various dry powder extinguishers. the main part of the machine is made of ultra-high molecular material and thus is durable. there is a cleaning function provided for the filter and no replacement is required for the filter in the whole service life of the machine. also the machine has advantage as direct recycling of various types of dry powder to avoid environmental pollution, simple operation, convenient use, small size and convenient movement.

Technical Parameters:

Volume: 700×460×1180mm

Weight: 66 Kg

Voltage: 220V/50Hz

Power: 0.75KW

Filling Speed: 7Kg/min

Suitable calibre:20~80mm



Maintenance:

1. Fill appropriate amount of 20# engine oil to elevating pieces;

2. When sucking, do not insert the suction tube too deep in the dry powder, otherwise, the tube is easy to be blocked;

3. Disqualified dry powder or powder with over amount of moisture is strictly prohibited to use;

4. After finish filling each time, tread on the footboard of the reversing valve times to remove the remaining dust and powder on the filter.



Fault

 Cause

 Solution

Pump does not generate pressure

1. The supplying flask not opened.

Open the supplying flask.

2. The supplying flask does not have siphon.

Replace the supplying flask.

3. No gas in the supplying flask.

Replace the supplying flask.

4. Filter blocked. (Figure 2)

Decrease the filler"s pressure to check whether the filler is contaminated.

5.Pump leaking.(Pump Indicating Figure)

Decrease the filler"s pressure to dismantle the pump body, clean pump parts, and replace the damaged rubber washer.
