- Place of Origin:
- Zhejiang, China
- Brand Name:
- SINAT
- Model Number:
- SSDP-50
- Extintor name:
- Trolley fire extinguisher with co2 cartridge inside
- Extintor material:
- Steel
- Extintorcolor:
- Red
- Extintor agent:
- ABC
- Extintor drive gas:
- Nitrogen
- Extintor size:
- 25kg,30kg,40kg,50kg,75kg,100kg
- Extintor thickness:
- 2.5-3.0mm
- Extintor W.P.:
- 15bar
- Extintor T.P.:
- 35 bar
- Extintor Application:
- chemical &petroleum processing plants
- Supply Ability:
- 1000 Piece/Pieces per Week Trolley fire extinguisher with co2 cartridge inside
- Packaging Details
- Each one packed in one Export carton box

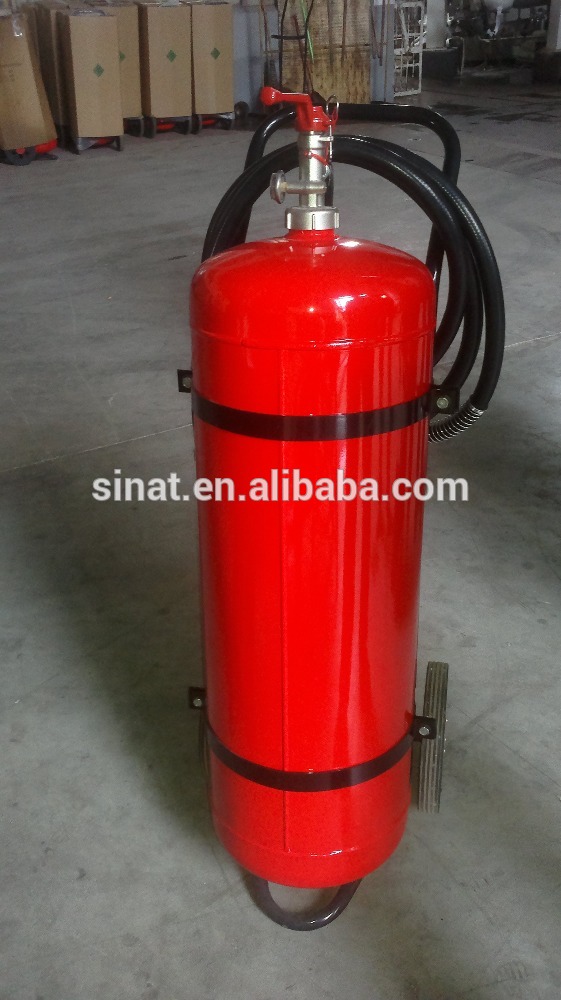

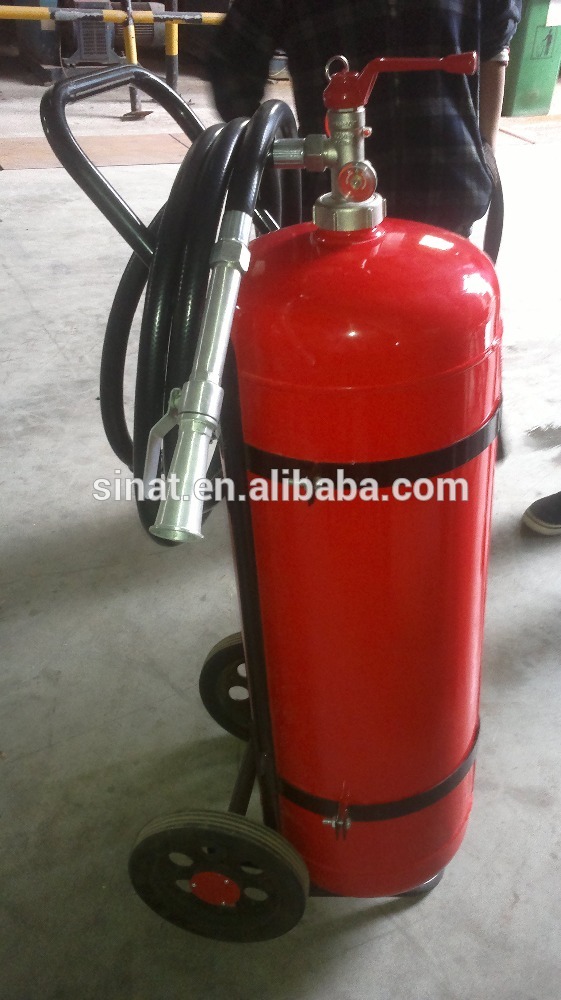

Trolley fire extinguisher with co2 cartridge inside
- Port
- Ningbo/ shanghai
Item Descriptions:
Trolley fire extinguisher with co2 cartridge inside
Fire extinguisher rating ABC
Stored pressure unit
Rubber all-terrain wheels for easy manoeuvrability
Self-supporting stand
Supplied with 5 metre hose as standard
Working pressure 1.4 MPa
Temperature range -30 +60 Deg
Discharge time 48 sec
Range 11 metres
Our wheeled fire extinguisher is designed for one man operation these units are easily transportable through doorways and over rough terrain.
Capacity | 25kg | 50kg | 100kg |
Out-Dia.(mm) | 270 | 320 | 406 |
Volume(L) | 30 | 59 | 124 |
Cylinder Length(mm) | 625 | 875 | 1100 |
Cylinder Weight(kg) | 11 | 21 | 50 |
Extinguisher Weight(kg) | 56 | 95 | 160 |
Filled Weight(kg) | 25 | 50 | 100 |
Temperature Range | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ |
Working Pressure(bar) | 15 | 15 | 15 |
Test Pressure(bar) | 35 | 35 | 35 |
Min Wall-Thickness(mm) | 2.5 | 3.0 | 3.0 |
Material | HP295/B440HP | HP295/B440HP | HP295/B490HP |
Fire Class | 55A 1BC | 55A2B C | 55A 3B C |
Packing Size(cm) | 58X47X97 | 63X50X111 | 62X57X122 |
Pictures:Applications: Offshore rigs, ship docks, refineries, chemical plants, aircraft ramps, remote construction sites, large laboratories, processing plants, storage and loading areas. Not for use on sensitive electronic equipment.
