- Packaging Type:
- wood
- Packaging Material:
- Wood
- Type:
- Filling Machine
- Condition:
- New
- Application:
- Chemical, Machinery & Hardware
- Automatic Grade:
- Automatic
- Driven Type:
- Electric
- Voltage:
- 220v/50hz
- Power:
- 1.1Kw
- Place of Origin:
- Zhejiang, China
- Brand Name:
- SINAT
- Model Number:
- SSGMT-A
- Dimension(L*W*H):
- 530x450x420mm
- Weight:
- 59kg
- Certification:
- ECM certificate
- Filling Machine name:
- Carbon dioxide Fire extinguisher Refilling machine CE standard
- Filling Machine power:
- 1.10kw220V/50Hz or60hz
- Machine N.W.:
- 59kg
- Machine size:
- 530x450x420mm
- Filling machine Speed:
- >3kg per minute
- Filling machine application:
- filling CO2 fire extinguisher / fire service
- Filling machine Velocity:
- 750r/min
- Filling machine pump:
- three plungers style
- Machine Output Pressure:
- 140bar
- Machine Pressure gauge:
- pre-set pressure as 120bar
- After-sales Service Provided:
- No overseas service provided
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 70X60X50 cm
- Single gross weight:
- 66.0 kg
- Package Type:

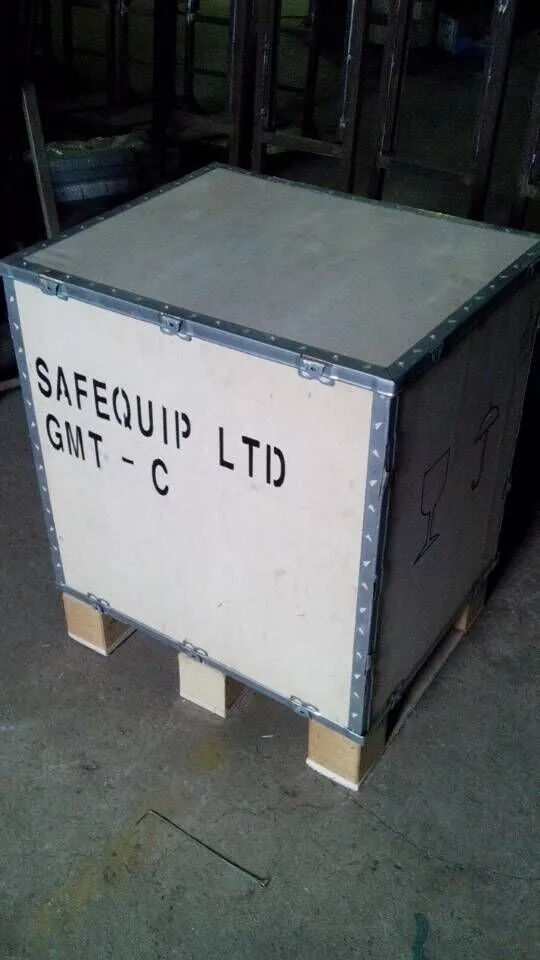

- Each one loaded in one wood box Wood box packed Carbon dioxide Fire extinguisher Refilling machine CE standard
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 15
Item Descriptions:
Carbon dioxide Fire extinguisher Refilling machine CE standard
GMT-C CO2 Filler is a small type and portable filler. Both the flask with siphon and
Medial- pressure tank can be used CO2 filling.
Filler must connect with CO2 steel flask while on filling. Meanwhile, the nozzle of the flask must be standard nozzle.
Must use electronic scale as basis of filling weight while on filling.
This GMT-C CO2 Filler does not include electronic scale.
Technical Parameters:
1. Voltage: 220V/50Hz
2. Power: 1.1KW
3. Velocity: 750r/min
4. Pump: three plungers style
5. Filling Volume: Max.-3Kg/min
6. Max. Output Pressure: 140bar
7. Electric Contact Pressure Gauge: pre-set pressure as 120bar
8. Weight: 59Kg
9. Volume: 530×450×420(mm)
Troubleshooting:
Fault | Cause | Solution |
Pump does not generate pressure | 1. The supplying flask not opened. | Open the supplying flask. |
2. The supplying flask does not have siphon. | Replace the supplying flask. | |
3. No gas in the supplying flask. | Replace the supplying flask. | |
4. Filter blocked. (Figure 2) | Decrease the filler"s pressure to check whether the filler is contaminated. | |
5.Pump leaking.(Pump Indicating Figure) | Decrease the filler"s pressure to dismantle the pump body, clean pump parts, and replace the damaged rubber washer. |
Pictures:
Why choose us:
1)we are proffecion in manufacture safety products
2)OEM available and print your logo
3)we have more than 10 years customer service group and familiar with shipment
which will shipment early & smoothly and reduce the customer cost.
4)Customer service is the first and will be respond within 24 hours.
